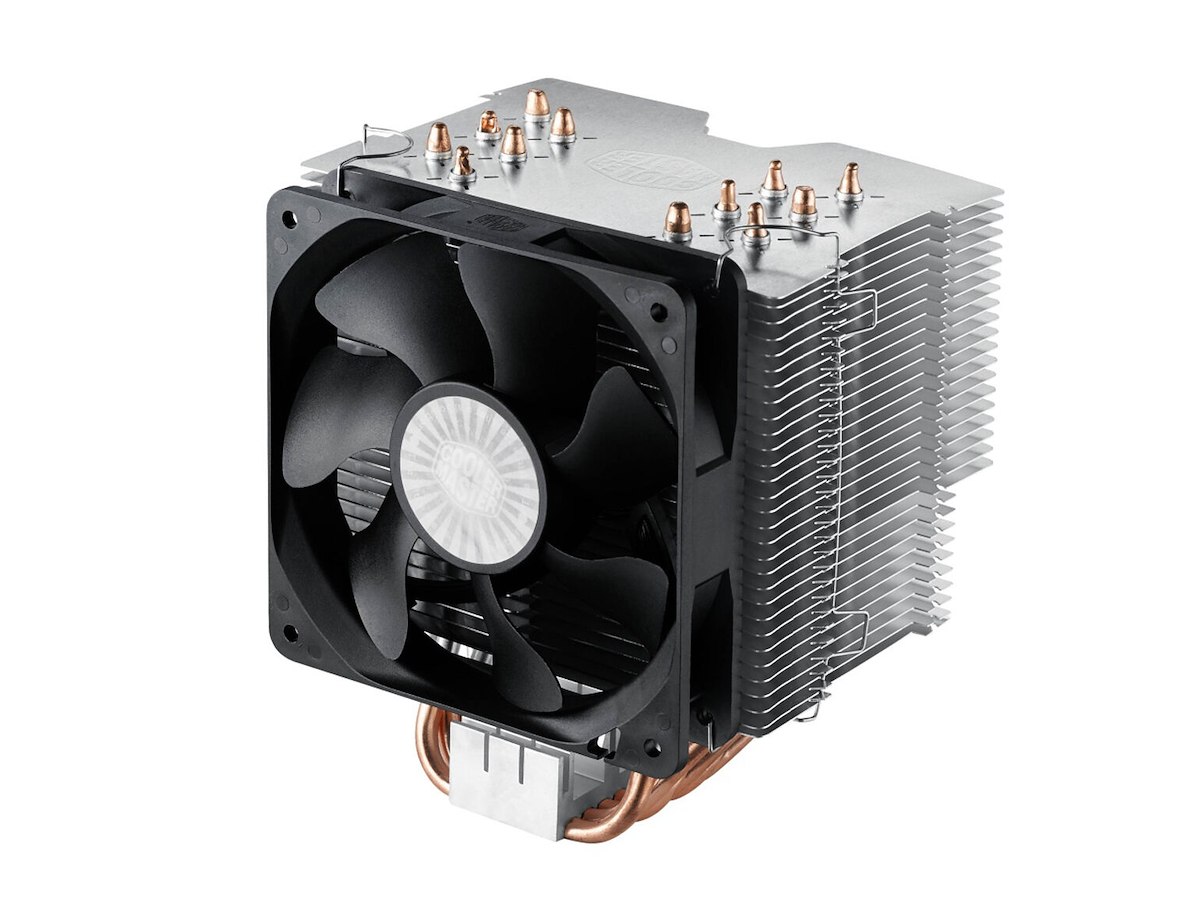

The Cooler Master Hyper 612 Ver.2 provides excellent CPU cooling performance. It features a large fin structure that accelerates heat dissipation by maximizing surface area. Hyper 612 Ver.2's intelligent 120mm PWM fan ensures a low noise solution. Six direct contact heatpipes and folding fin structure effectively guides air and provides an accelerated cooling system.
The Cooler Master Hyper 612 Ver.2 provides excellent CPU cooling performance. It features a large fin structure that accelerates heat dissipation by maximizing surface area. Hyper 612 Ver.2's intelligent 120mm PWM fan ensures a low noise solution. Six direct contact heatpipes and folding fin structure effectively guides air and provides an accelerated cooling system.
DIRECT THERMAL TRANSFER
Six (6) Direct Contact Heatpipes for accelerated surface to surface thermal transfer.
EXCELLENT HEAT DISTRIBUTION
Folding Fin Structure for the best air guiding, increased efficiency and heat dissipation
X-VENT TECHNOLOGY
Air-Guide design places 45 degree angled vents around each Direct Contact Heatpipe for better cooling.
EASY INSTALLATION
Easy-to-use, universal mounting system for all common Intel and AMD platforms.
MEASUREMENT DIAGRAM
Hyper 612 V2 optimized profile for greater mid tower compatibility and memory clearance.
COVERAGE
Parts, product replacement, and free technical support.
| Præstation | |
| Passende til rumtype | Processor |
| Type | Køler |
| Ventilator diameter | 12 cm |
| Understøttede procesorsokler | Sokkel AM2, Sokkel AM2+, Sokkel AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+, LGA 1151 (stik H4), LGA 2011-v3 (Socket R) |
| Omdrejningshastighed (min.) | 800 rpm |
| Omdrejningshastighed (maks.) | 1300 rpm |
| Støjniveau (lav hastighed) | 11 dB |
| Støjniveau (høj hastighed) | 20 dB |
| Mindste luftmængde | 26,6 kubikfod/min. |
| Maksimal luftstrøm | 44,2 kubikfod/min. |
| Minimum lufttryk | 0,6 mmH2O |
| Maksimalt lufttryk | 1,6 mmH2O |
| Gennemsnitstid mellem fejl (MTBF) | 40000 t |
| Design | |
| Produktfarve | Sort |
| Antal varmerør | 6 |
| Strømstyring | |
| Strømforbrug (typisk) | 1,08 W |
| Spænding | 12 V |
| Strøm (maks.) | 0,09 A |
| Vægt & størrelser | |
| Bredde | 150 mm |
| Dybde | 129 mm |
| Højde | 160 mm |
| Vægt | 886 g |
| Ventilator dimensioner (BxDxH) | 120 x 120 x 25 mm |
| Kølelegemets vægt | 732 g |
| Pakkebredde | 192 mm |
| Pakkedybde | 208 mm |
| Pakkehøjde | 190 mm |
| Pakkevægt | 1,4 kg |
| Andre funktioner | |
| Dimensioner for kølelegeme (BxDxH) | 139 x 102 x 160,4 mm |
| Produktlevetid | 40000 t |
