COMPACT and COMPELLING

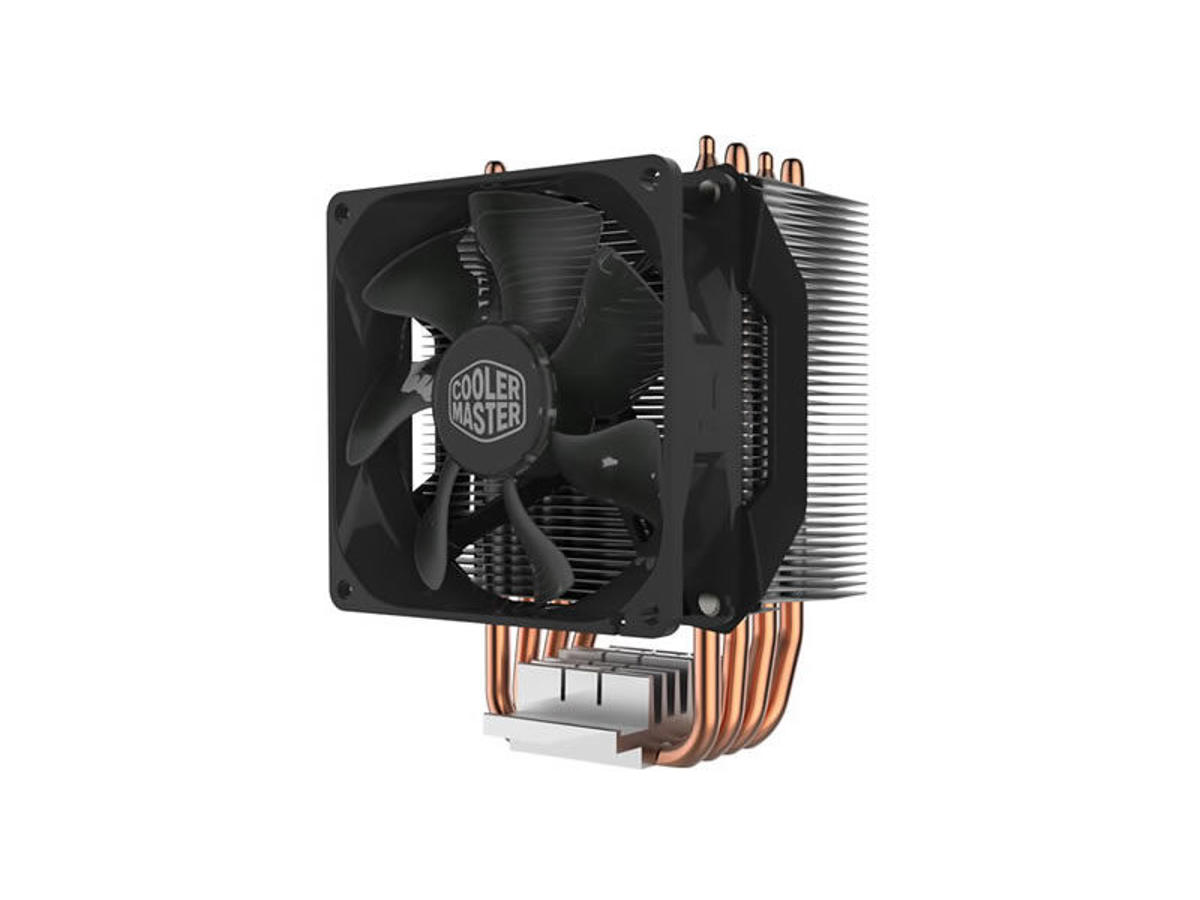

HYPER H412R
The Hyper H412R is an affordable, compact and high performance air cooler that is a great fit for small form factor system. With 4 heatpipes and Direct Contact technology, this outperforms its predecessor Hyper TX3 series. The special fin design optimizes air flow toward heatpipes. Its 92mm PWM fan features a wide fan speed range and can be fine tuned for maximum airflow and cooling performance or silent operation.
Performance in Compact Size
With height of 136.5mm, the Hyper H412R is a compact tower cooler, designed to fit in tight builds. With its outstanding performance in its class, it is a great solution for Micro ATX and Mini ITX boards.
4 Direct Contact Heatpipes
Just like the Hyper 212, it includes 4 Direct Contact heatpipes constructed out of copper to accerates the heat conduction through the entire heatpipe. This allows heat to be dissipated quickly and efficiently throught the funnel shaped aluminum fins.
Perfecting the Heatsink Design
Cooler Master's years of aluminum fin craftmanship is second to none. Optimized fin stacked distance between each layer is based on stringent airflow tests from our labs. As a result, even with a compact-size each heatsink with the 92mm fan is able to maintain performance in a compact build.
Easy Installation
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
Præstation | |
Passende til rumtype | Processor |
Type | Køler |
Ventilator diameter | 9,2 cm |
Understøttede procesorsokler | LGA 1150 (stik H3), LGA 1151 (stik H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Stik AM4, Sokkel AM5 |
Omdrejningshastighed (min.) | 600 rpm |
Omdrejningshastighed (maks.) | 2000 rpm |
Støjniveau (høj hastighed) | 29,4 dB |
Maksimal luftstrøm | 34,1 kubikfod/min. |
Maksimalt lufttryk | 1,79 mmH2O |
Understøttelse af puls-bredde modulering (PWM) | Ja |
Design | |
Produktfarve | Sort |
Antal blæsere | 1 blæser(e) |
Antal ventilatorblade | 7 |
Lamelmateriale | Aluminium |
Antal varmerør | 4 |
Ventilatorstik | 4-polet |
Strømstyring | |
Strømforbrug (typisk) | 2,4 W |
Nominel strøm | 0,2 A |
Sikkerhedsstrøm | 0,4 At |
Vægt & størrelser | |
Bredde | 83,4 mm |
Dybde | 102 mm |
Højde | 136 mm |
Vægt | 500 g |
Ventilator dimensioner (BxDxH) | 92 x 92 x 25 mm |
Kølelegemets vægt | 358 g |
Varmerør diameter | 6 mm |
Pakkebredde | 380 mm |
Pakkedybde | 413 mm |
Pakkehøjde | 50 mm |
Pakkevægt | 620 g |
Andre funktioner | |
Udgangsspænding | 12 V |
Dimensioner for kølelegeme (BxDxH) | 63,5 x 90 x 136 mm |
Oprindelsesland | Kina |
Middeltid til fejl (MTTF) | 40000 t |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
