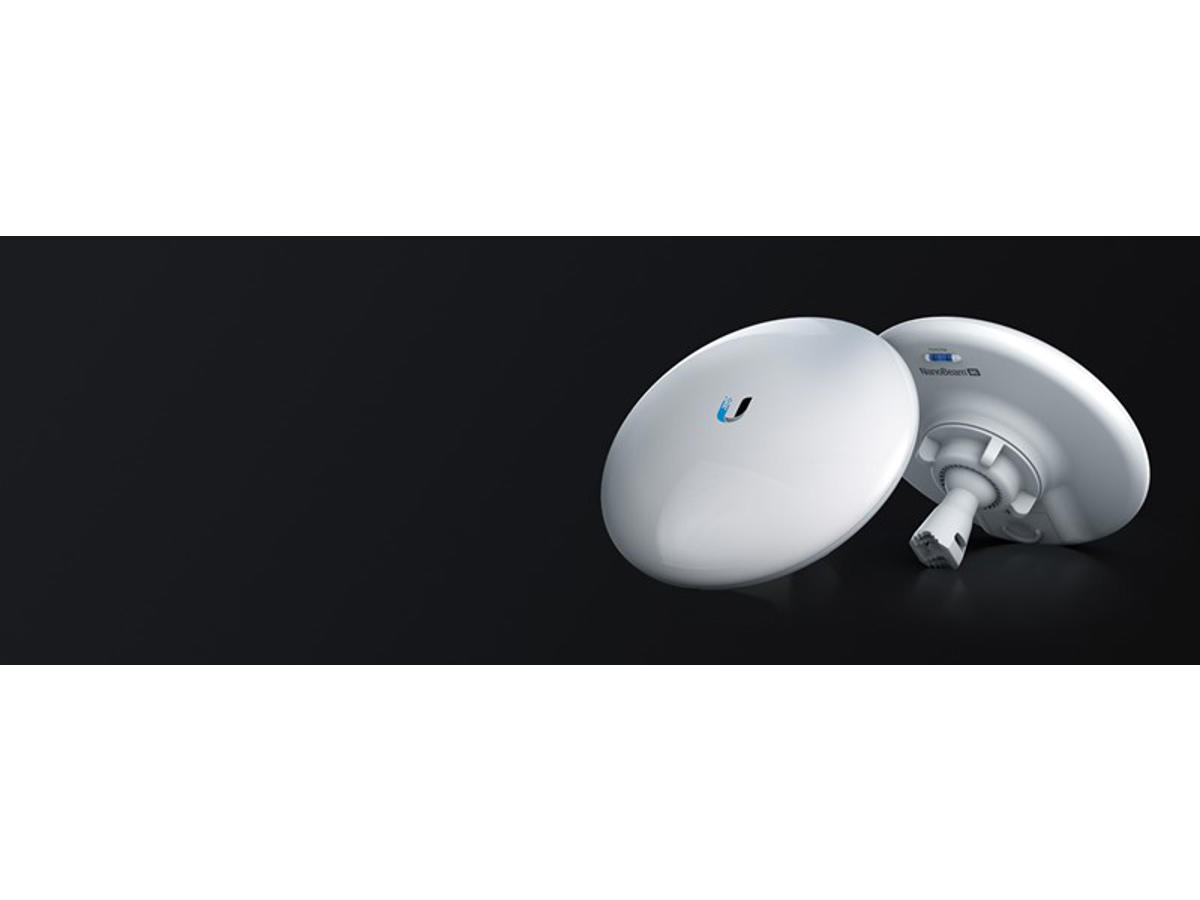

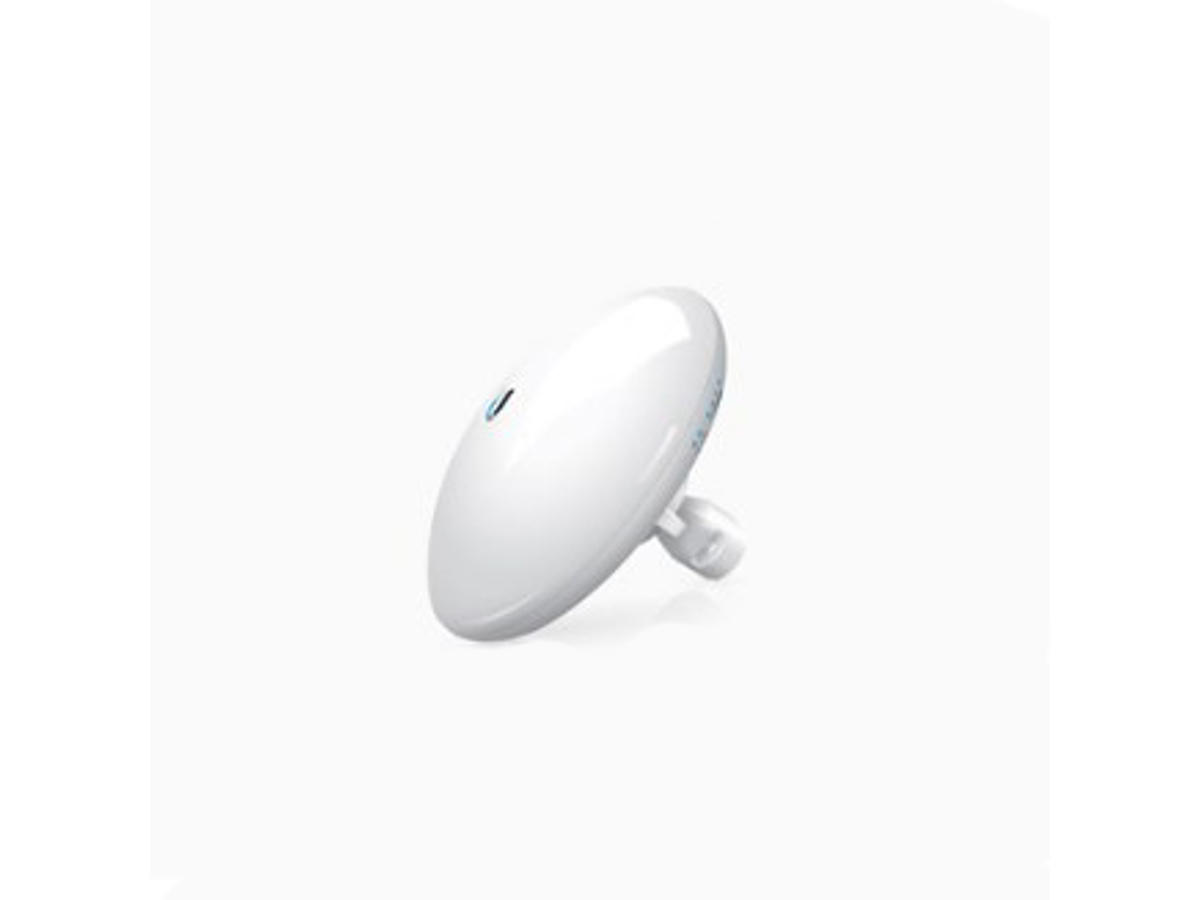

Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.
Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance

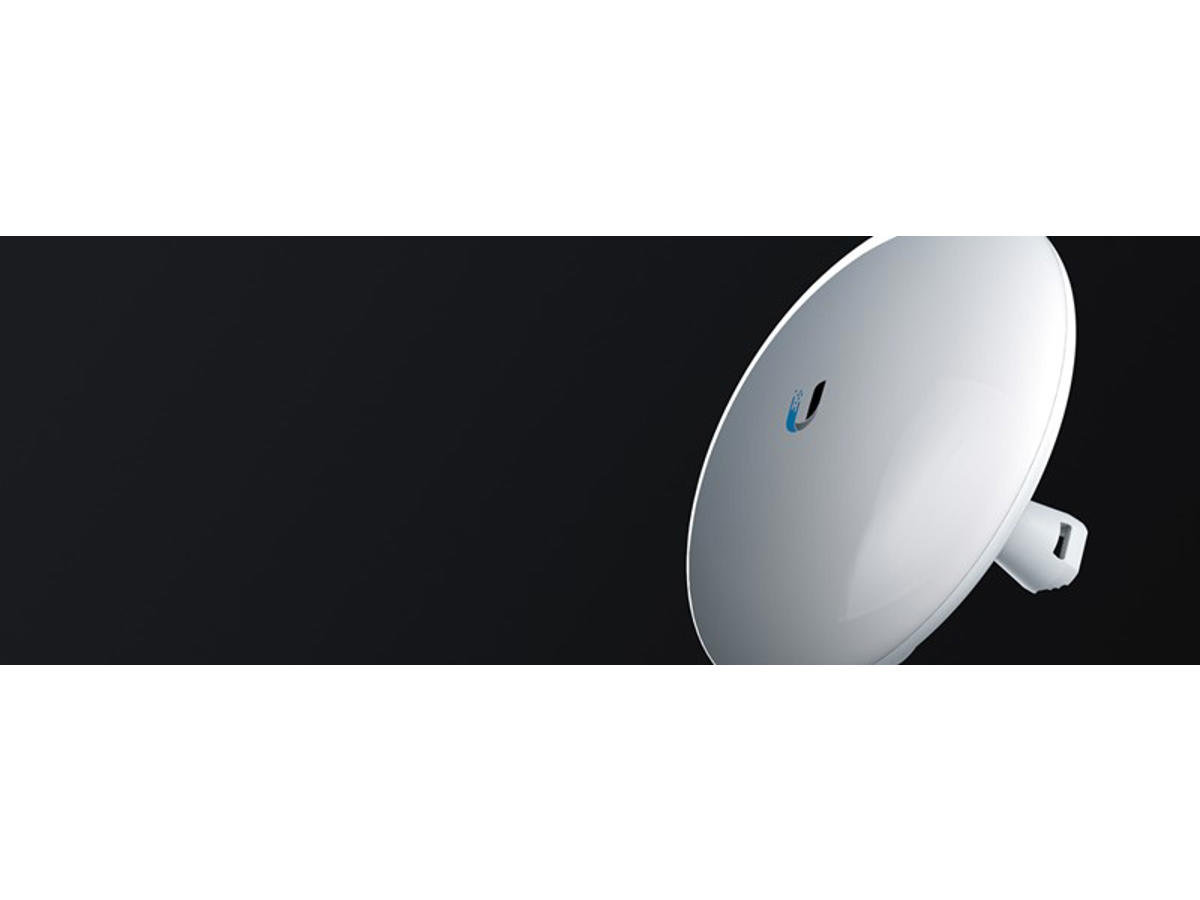

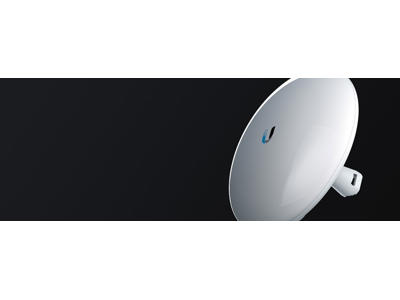

The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation

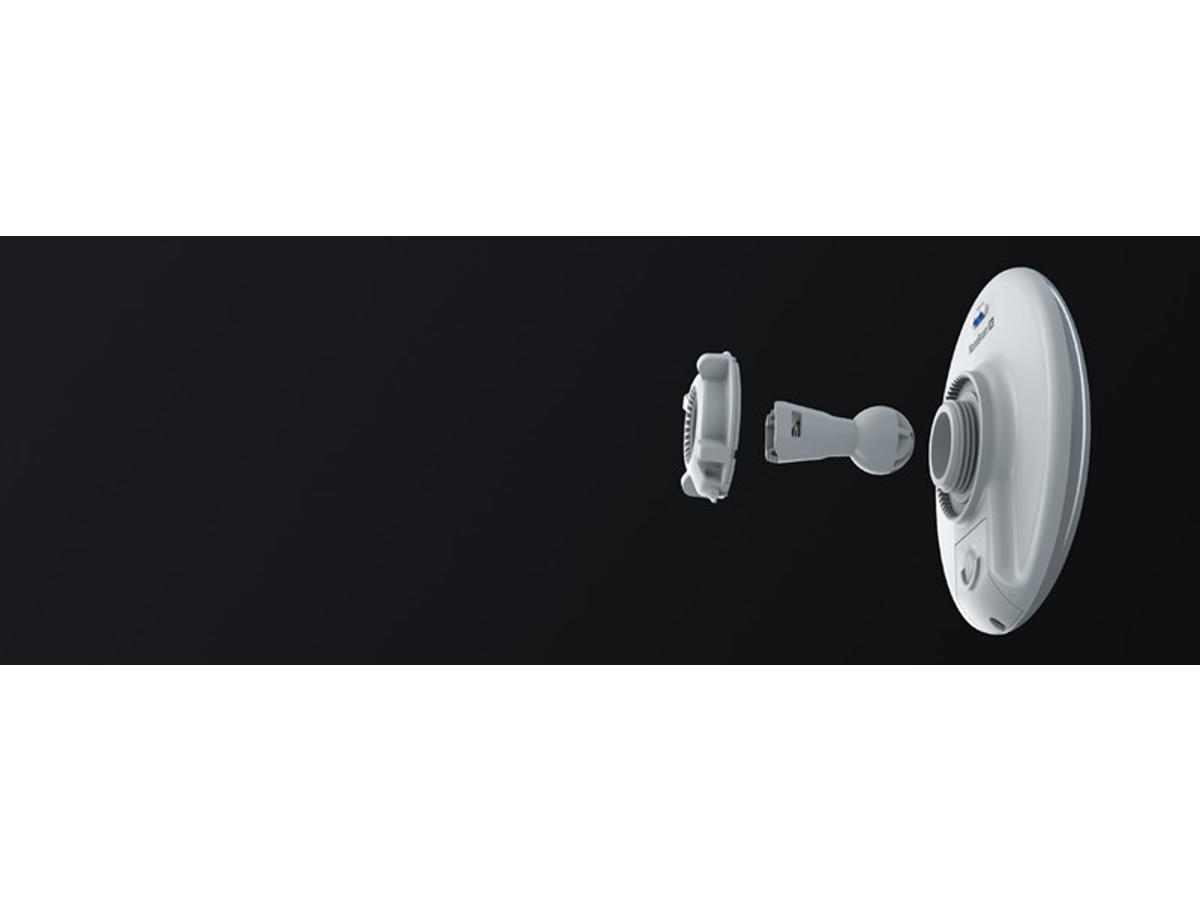

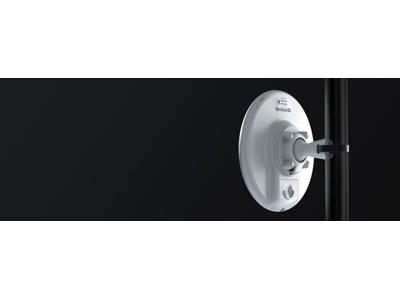

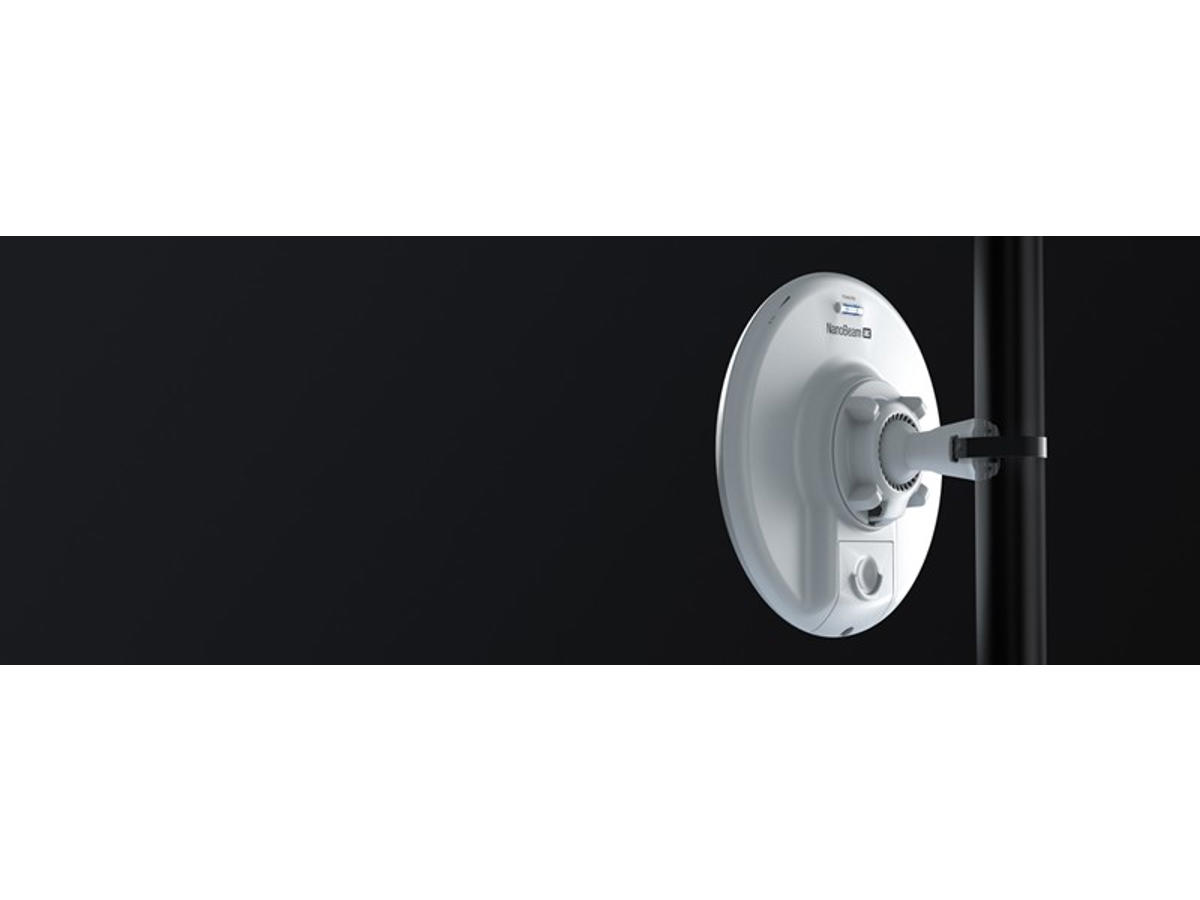

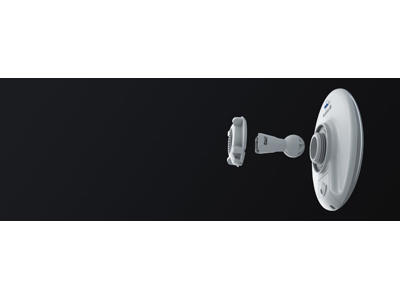

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS8
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability. -
Dataoverførsel Maksimal dataoverførselshastighed 450 Mbit/s Maksimal overførselsafstand 15000 m Antenne Niveau for antennestyrke (maks.) 19 dBi Trådløse LAN funktioner Wi-Fi Ja Frekvensbånd 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK Netværk Ethernet LAN Ja Ethernet LAN-grænsefladetype Gigabit Ethernet Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Porte & Grænseflader Ethernet LAN-porte (RJ-45) 2 Sikkerhed Sikkerhedsalgoritmer WPA2 Administrationsfunktioner Webbaseret administration Ja Funktioner Produkttype Netværksbro Materiale Plast Monteringstype Væg/pole Produktfarve Hvid LED-indikatorer LAN, Strøm, Signalstyrke Knap til nulstilling Ja Beskyttelse ved overspænding Ja Processorserie Atheros Processormodel MIPS 74Kc Processorfrekvens 720 MHz Intern hukommelse 128 MB RAM-type DDR2 Strømstyring Strømkilde type PoE Strømforbrug (maks.) 8,5 W Strøm over Ethernet (PoE) Ja DC udgangsspænding 24 V DC-udgangsstrøm 0,5 A Driftsbetingelser Driftstemperatur (T-T) -40 - 80 °C, -40 - 176 °F Relativ luftfugtighed ved drift (H-H) 5 - 95% Godkendelser Compliance-certifikater CE, RoHS Certificering CE, FCC, IC, RoHS Vægt & størrelser Bredde 189 mm Dybde 189 mm Højde 125 mm Vægt 530 g Emballage indhold PoE+ injektor(er) Ja Monteringsbeslag inkluderet Ja Kabler inkluderet Vekselstrøm Hukommelse Flashhukommelse 8 MB Emballeringsdata Antal pr. pakke 1 stk Logistik data Harmoniseret systemkode (HS) 85176990
