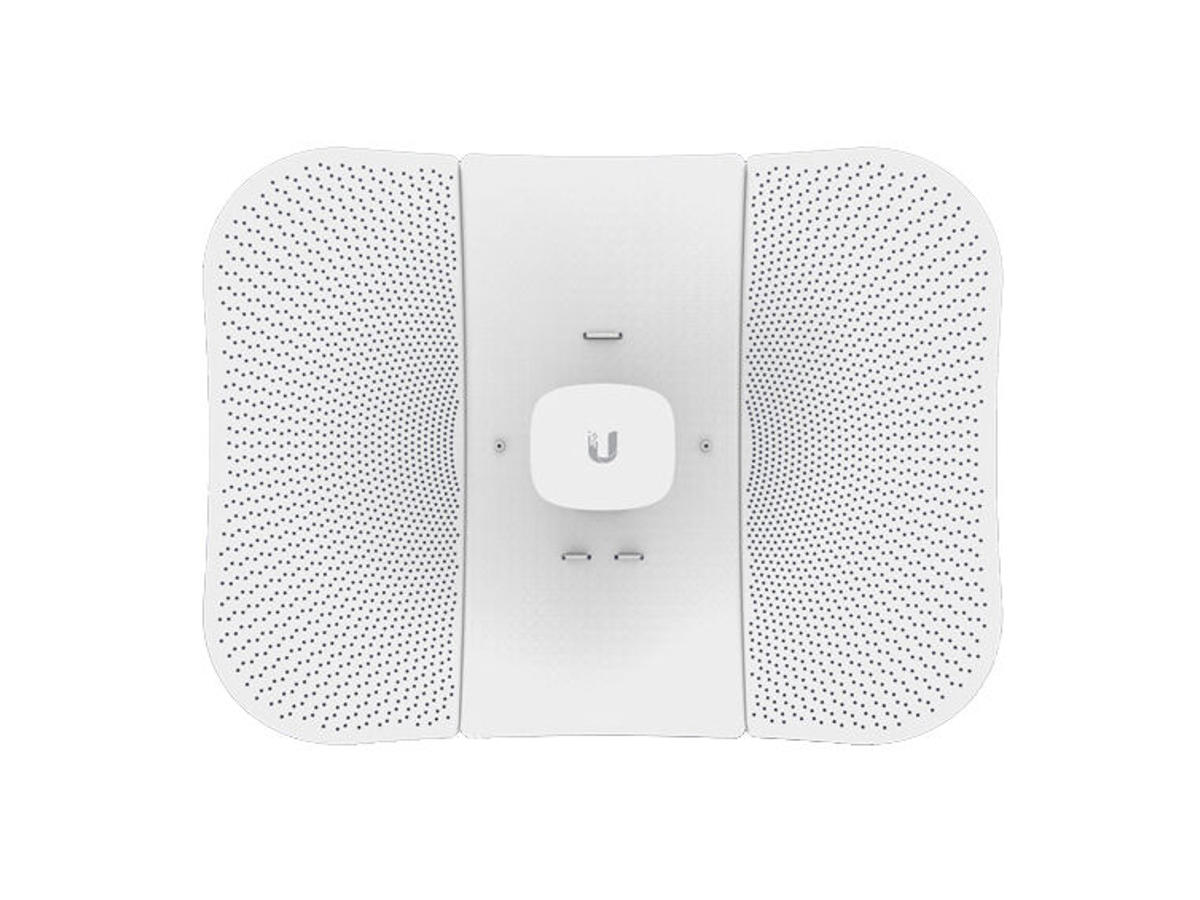

The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.
Management Wi-Fi Radio
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.
Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.
| Dataoverførsel | |
| Maksimal dataoverførselshastighed | 450 Mbit/s |
| Antenne | |
| Niveau for antennestyrke (maks.) | 23 dBi |
| Trådløse LAN funktioner | |
| Frekvensbånd | 5.150 - 5.875 GHz |
| Netværk | |
| Ethernet LAN | Ja |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 1 |
| Sikkerhed | |
| Sikkerhedsalgoritmer | WPA2 |
| Administrationsfunktioner | |
| Webbaseret administration | Ja |
| Funktioner | |
| Produkttype | Netværksbro |
| Materiale | Plast |
| Produktfarve | Hvid |
| LED-indikatorer | LAN, Strøm |
| Processormodel | MIPS 74Kc |
| Intern hukommelse | 64 MB |
| Strømstyring | |
| Strømkilde type | PoE |
| DC indgangsspænding | 24 V |
| Strømforbrug (maks.) | 7 W |
| Energiforbrug (24V) | 300 mA |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -40 - 70 °C, -40 - 158 °F |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Godkendelser | |
| Certificering | CE, FCC, IC |
| Vægt & størrelser | |
| Dimensioner (BxDxH) | 358 x 271,95 x 272,5 mm |
| Vægt | 980 g |
