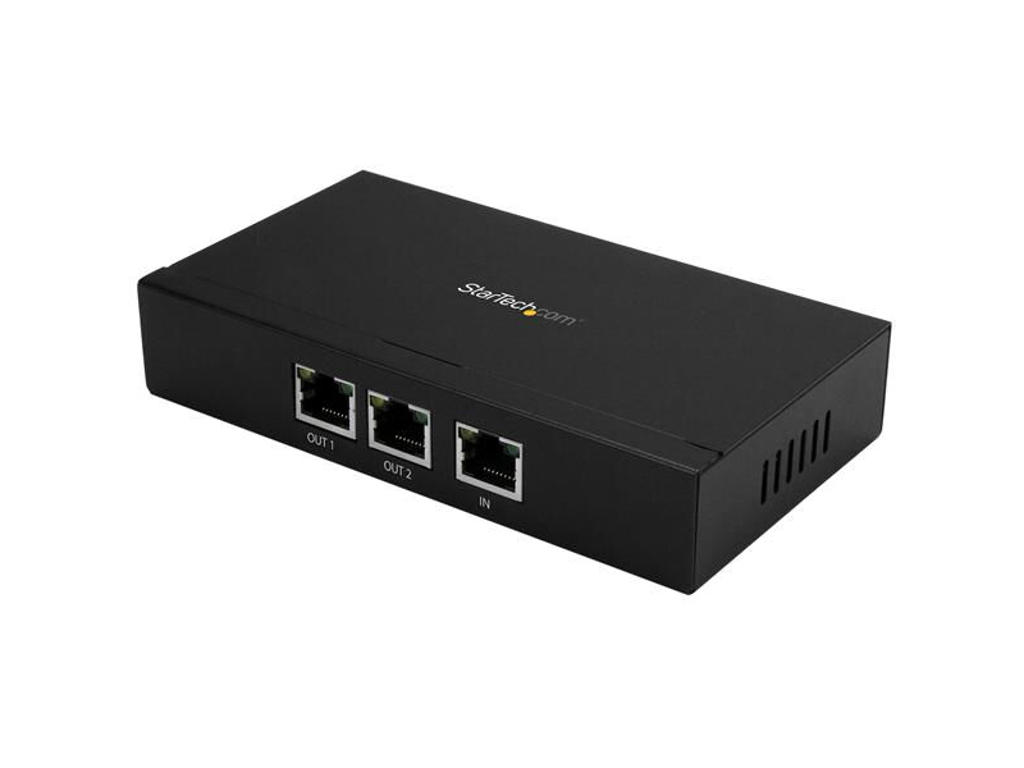

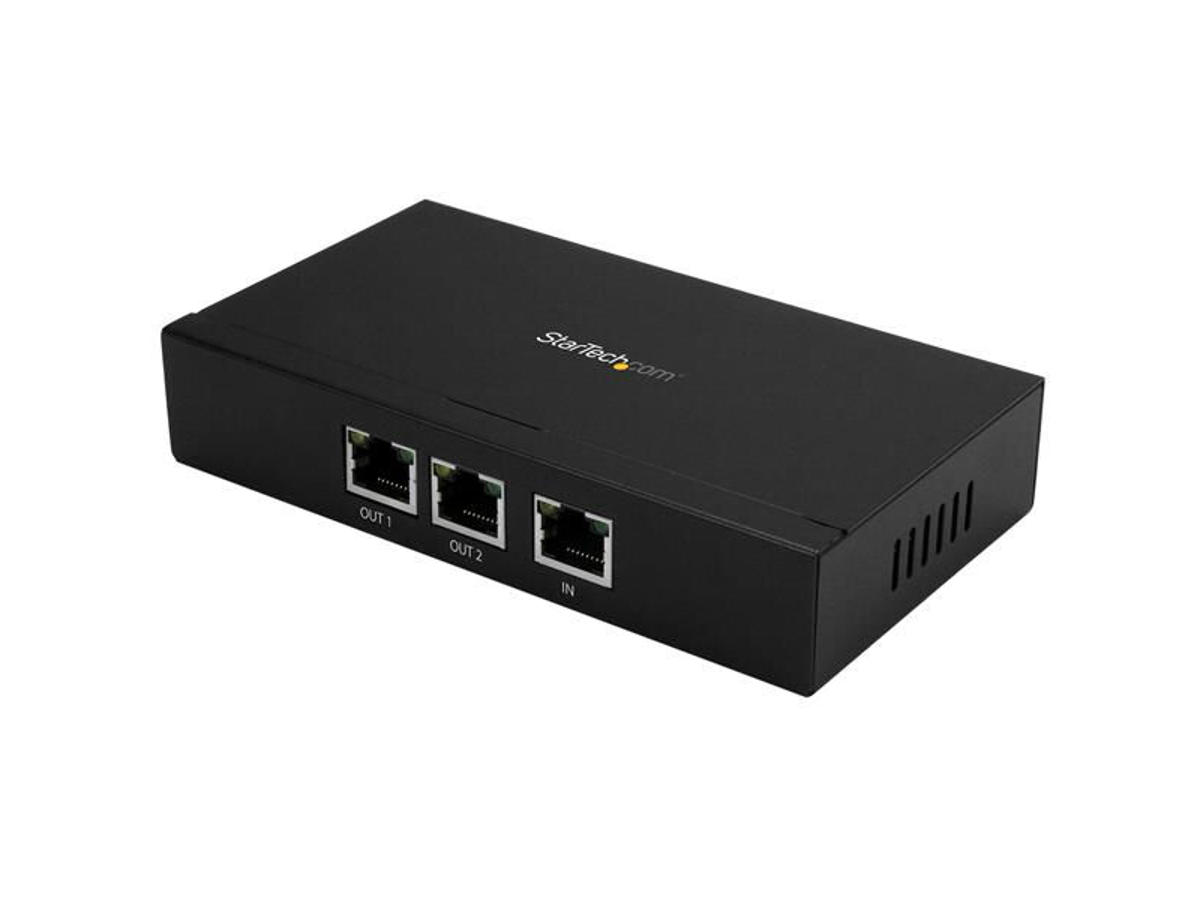

This 2-port Gigabit PoE+ extender spans your Power over Ethernet (PoE) devices over longer distances, letting you double the 100 m limitation of a traditional PoE infrastructure.
Now you can connect two Gigabit PoE devices up to a maximum of 200 m away, so it’s easy to install a remote IP camera or access point where you need it. Plus, you can daisy-chain the extender for more scalability.
Unrestricted PoE+ range and convenience
Need more distance? This convenient two-port PoE+ repeater maximizes range and flexibility by extending your PoE connections by an extra 100 m (330 ft.), while providing 23-watt power output to two compatible devices. (The power output is shared between each PoE output port).
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered devices (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).
Daisy chain for longer distance and more flexibility
Still need more distance? If an extra 100 m isn’t enough, this full-featured PoE extender offers daisy-chain capability.
You can easily connect four extenders together, letting you install two PoE+ PDs up to 500 m (1640 ft.) away. It’s perfect for business, education, and retail environments. (Output wattage is dependent on the number of daisy-chained extenders used, and the number of connected PoE devices).
Convenient installation options and durable construction
Get up and running quickly. This 2-port Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
With its rugged metal housing and built-in ESD and surge protection, the PoE+ extender gives you reliable performance with little worry of downtime or failure.
The POEEXT2GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Præstation | |
| Type | Netværkssender |
| Maksimal overførselsafstand | 100 m |
| Dataoverførselshastighed | 2000 Mbit/s |
| Auto MDIX IEEE | Ja |
| Jumbo Frames support | Ingen |
| Auto-forhandling | Ja |
| Duplex system | Fuld, Halvt |
| Flowkontrol support | Ja |
| Plug and play | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 50000 t |
| Netværk | |
| Kabelteknologi | 10/100/1000Base-T(X) |
| Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Porte & Grænseflader | |
| Antal RJ-45 porte (sender) | 2 |
| Antal RJ-45 porte (modtager) | 1 |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Stål |
| LED-indikatorer | Aktivitet, Link, PoE |
| Certificering | CE, FCC |
| Strømstyring | |
| Strømforbrug (maks.) | 3 W |
| Udgangsspænding | 56 V |
| Strøm over Ethernet (PoE) | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Opbevaringstemperatur (T-T) | -10 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 90% |
| Vægt & størrelser | |
| Bredde | 77 mm |
| Dybde | 140 mm |
| Højde | 27 mm |
| Vægt | 239 g |
| Emballage indhold | |
| Hurtig start guide | Ja |
| Emballeringsdata | |
| Pakkebredde | 123 mm |
| Pakkedybde | 169 mm |
| Pakkehøjde | 99 mm |
| Pakkevægt | 367 g |
| Godkendelser | |
| Compliance-certifikater | RoHS |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
