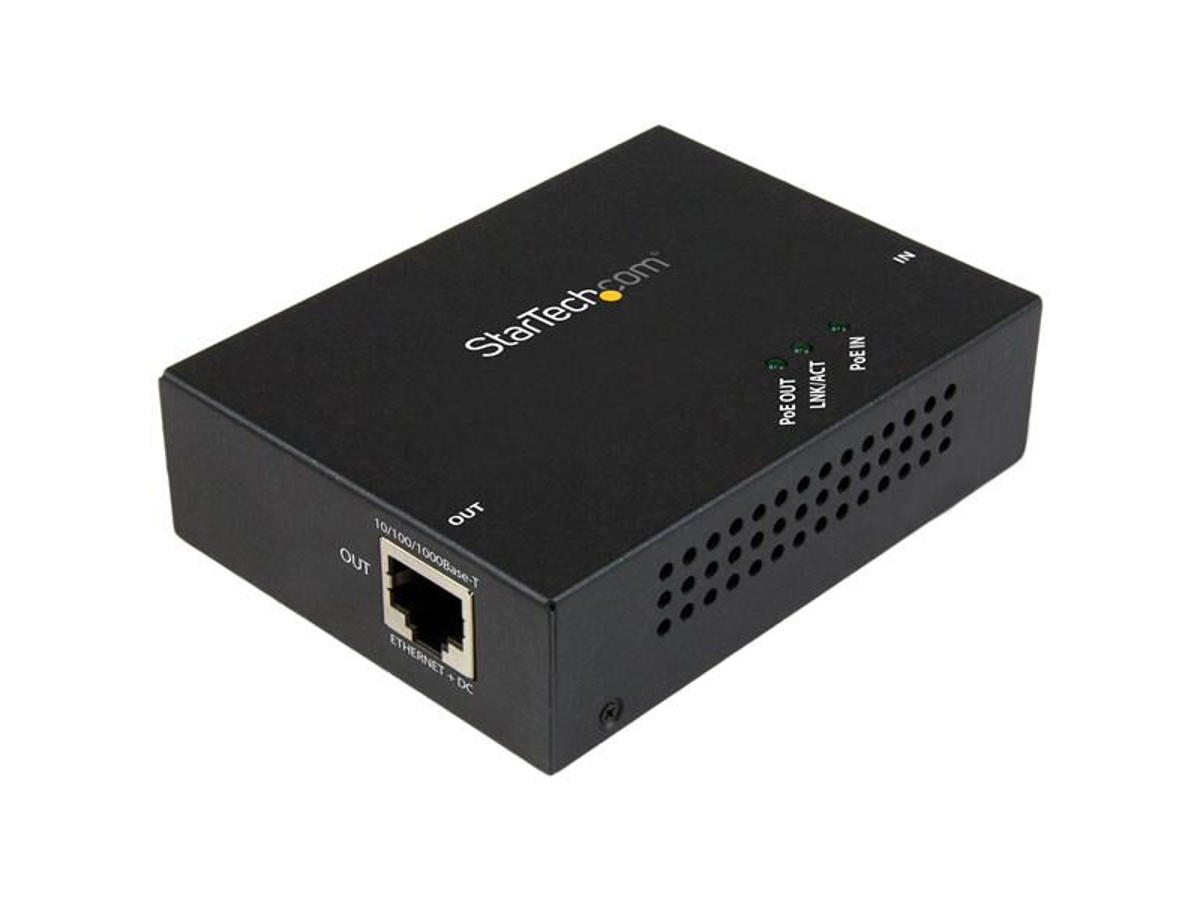

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.
Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).
Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.
You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).
Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.
The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Præstation | |
| Type | Netværksgentager |
| Maksimal overførselsafstand | 100 m |
| Dataoverførselshastighed | 2000 Mbit/s |
| Auto MDIX IEEE | Ja |
| Jumbo Frames support | Ingen |
| Auto-forhandling | Ja |
| Duplex system | Fuld, Halvt |
| Plug and play | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 50000 t |
| Netværk | |
| Kabelteknologi | 10/100/1000Base-T(X) |
| Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Porte & Grænseflader | |
| Power over Ethernet (PoE) porte, antal | 2 |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Stål |
| LED-indikatorer | Aktivitet, Link, PoE |
| Certificering | CE, FCC, TAA, REACH |
| Strømstyring | |
| Vekselstrømsindgangsspænding | 52 - 56 V |
| Strømforbrug (maks.) | 3,2 W |
| Strøm over Ethernet (PoE) | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Opbevaringstemperatur (T-T) | -10 - 85 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Vægt & størrelser | |
| Bredde | 69 mm |
| Dybde | 94 mm |
| Højde | 25 mm |
| Vægt | 193 g |
| Emballage indhold | |
| Brugervejledning | Ja |
| Emballeringsdata | |
| Pakkebredde | 135 mm |
| Pakkedybde | 205 mm |
| Pakkehøjde | 70 mm |
| Pakkevægt | 343 g |
| Godkendelser | |
| Compliance-certifikater | RoHS |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
