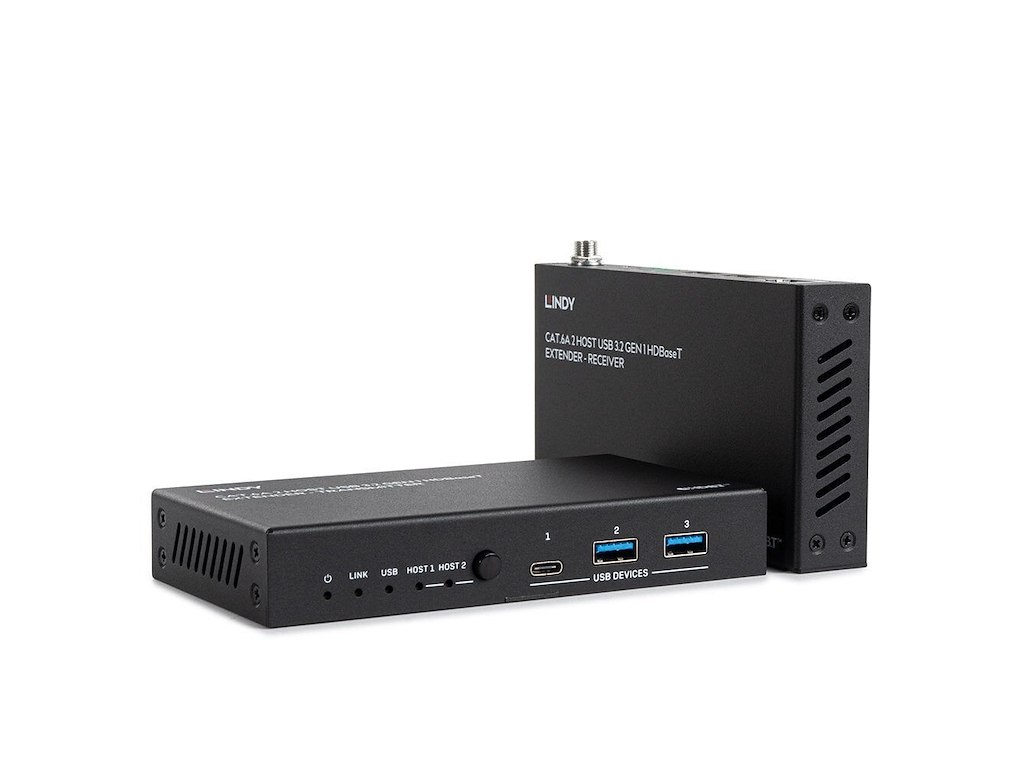

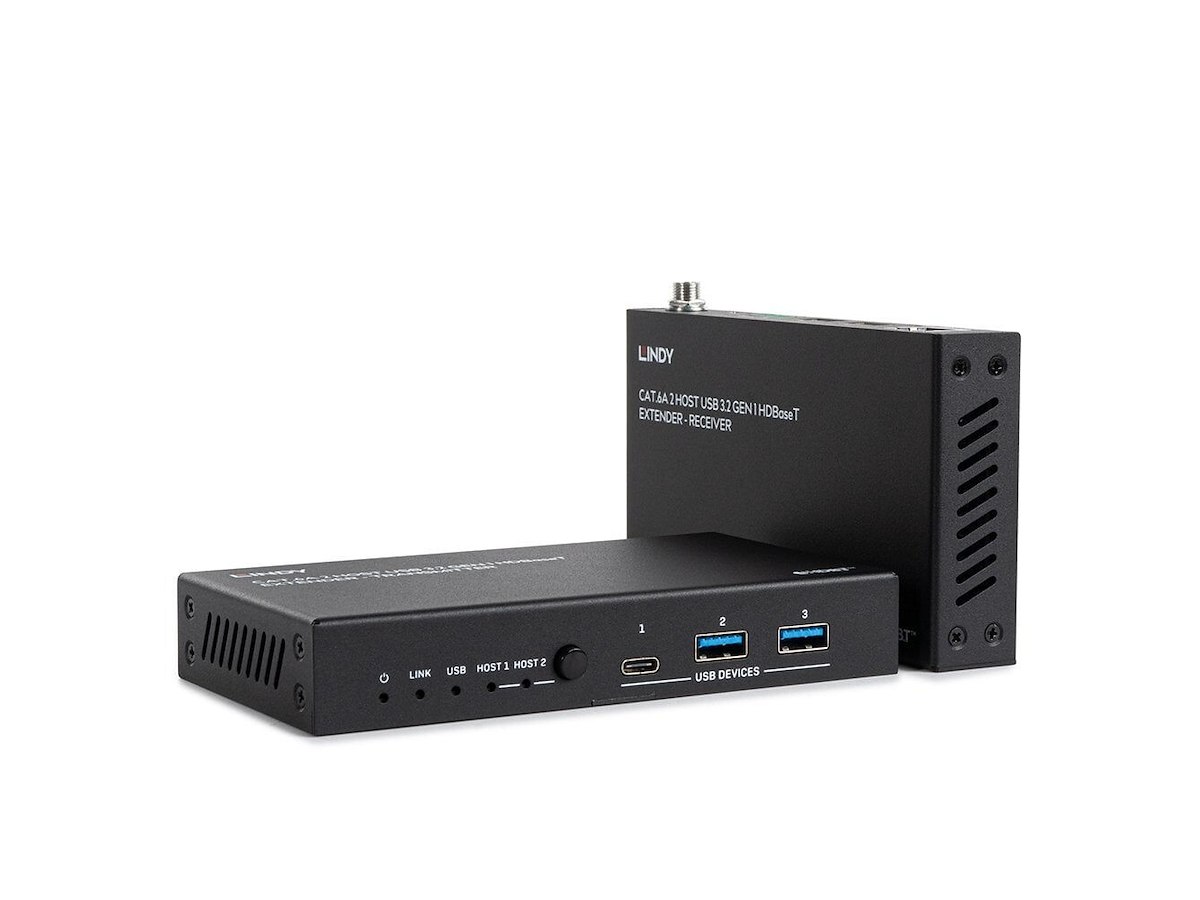

This Lindy USB 3.2 Gen 1 HDBaseT Extender can be used to extend the distance between USB peripheral devices and 2 host computers by up to 100m. Supports multiple USB signals, control, bulk, interrupt and isochronous data transfer.
A standard Cat.6A or above network cable* (not included) is used to bridge the connection between the transmitter and the receiver unit at the maximum supported distance of 100m (328.08ft). It's also possible to reach up to 40m using a Cat.6 cable.
The Extender features Power over Cable, which requires a single power supply only to be connected either to the transmitter unit or to the receiver unit. The Transmitter has 2 switchable host ports, one Type C and one Type B, with additional local device ports; 4 ports on the Receiver can provide 5V power as well to the connected devices: 2 Type A ports support up to 1.5A each, 1 Type A and 1 Type C ports support up to 1A each.
Status LEDs help the user to check power, link between Transmitter and Receiver and if data transfer is running while additional RS232 and FSYNC GPIO pass-though ports allow sending bi-directional commands also for industrial cameras. It's also possible to control the extender via API commands.
With robust metal housing and mounting brackets, this Extender is the ideal solution for professional applications and industrial environments.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
*: To cover long distances close to the 100m limit, we recommend using HDBaseT-certified Cat.6A (or above) cables.
This extender is certified by HDBaseT Alliance.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT Trade Mark and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances. -
Præstation Type Netværkssender & -modtager Maksimal overførselsafstand 100 m Dataoverførselshastighed 480 Mbit/s Understøttede kabeltyper Cat6a Chipsæt (sender) VS6320 Plug and play Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 2 Antal RJ-45 porte (sender) 1 Antal RJ-45 porte (modtager) 1 Antal USB Type-C-porte (sender) 3 Antal USB Type-C-porte (modtager) 2 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 5 DC-in-stik Ja Kontaktmateriale Fosforbronze Stikforbindelse kontakter plettering Guld Tilslutningsmateriale Guld Design Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Certificering CE, UKCA, FCC, RoHS & REACH, CP65 Strømstyring Ekstern strømadapter Ja Udgangsspænding 24 V Udgangsstrøm 3,75 A Strøm over Ethernet (PoE) Ja Effektnote 5.5/2.1mm DC Inkluderede strømstik typer AU, EU, UK, US Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 140 mm Dybde 75 mm Højde 23 mm Vægt 1,72 kg Emballage indhold Kabler inkluderet USB Type-A til USB Type-B Brugervejledning Ja Emballeringsdata Pakketype Kasse Pakkebredde 270 mm Pakkedybde 245 mm Pakkehøjde 75 mm Pakkevolumen 2020 cm³ Godkendelser Compliance-certifikater CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Logistik data Harmoniseret systemkode (HS) 85176990
