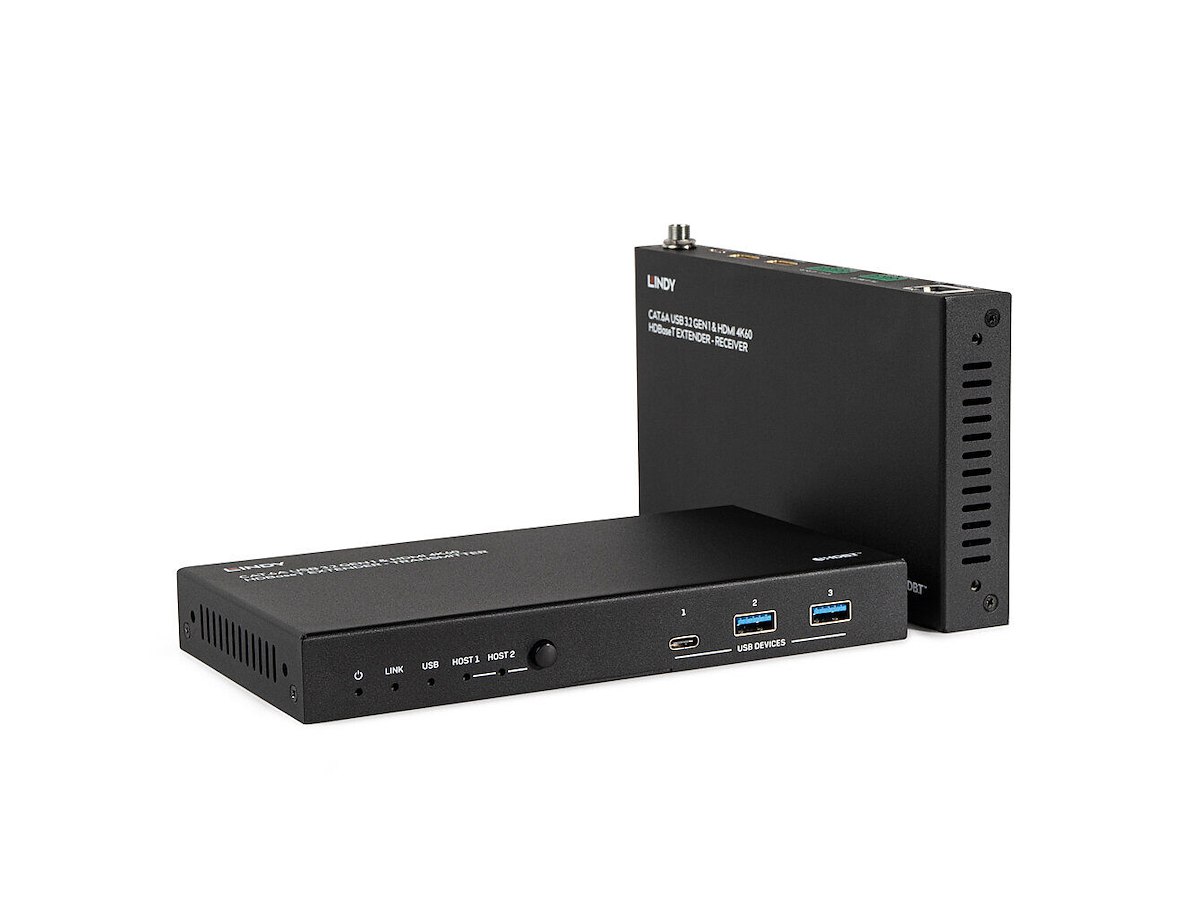

This Lindy USB 3.2 Gen 1 & HDMI® 4K60 HDBaseT Extender can be used to extend the distance between 2 host computers and a console with 2 HDMI® displays and USB peripheral devices by up to 100m. Supports multiple USB signals, control, bulk, interrupt and isochronous data transfer.
A Cat.6A or above network cable* (not included) is used to bridge the connection between the transmitter and the receiver unit at the maximum supported distance of 100m (328.08ft).
The Extender features Power over Cable, which requires a single power supply only to be connected either to the transmitter unit or to the receiver unit. The Transmitter has 2 Type C switchable host ports, one of them supports Power Delivery up to 100W connecting an additional USB power supply from a dedicated Type C power port. Both units have local device ports, 1 Type A and 2 Type A each unit, while the Receiver features 2 HDMI® ports supporting Ultra HD resolutions up to 4K60.
Status LEDs help the user to check power, active host, link between Transmitter and Receiver and if data transfer is running while additional RS232 and FSYNC GPIO pass-though ports allow sending bi-directional commands also for industrial cameras. Switching between the 2 hosts can be done via front panel button on the Transmitter or can be set as automatic, it's also possible to control the extender via API commands.
With robust metal housing and mounting brackets, this Extender is the ideal solution for professional applications and industrial environments.
The power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
*: To get the best performances we recommend using HDBaseT-certified Cat.6A (or above) cables.
Please Note: switching between the 2 hosts can take a few seconds, please download the latest DisplayLink drivers.
This extender is certified by HDBaseT Alliance.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT Trade Mark and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Præstation Type Netværkssender & -modtager Maksimal overførselsafstand 100 m Dataoverførselshastighed 480 Mbit/s Understøttede kabeltyper Cat6a Chipsæt (sender) VS6320 Plug and play Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 2 Antal RJ-45 porte (sender) 1 Antal RJ-45 porte (modtager) 1 Antal USB Type-C-porte (sender) 4 Antal USB Type-C-porte (modtager) 2 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 4 DC-in-stik Ja Kontaktmateriale Fosforbronze Stikforbindelse kontakter plettering Guld Tilslutningsmateriale Guld Design Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Certificering CE, UKCA, FCC, RoHS & REACH, CP65 Strømstyring Ekstern strømadapter Ja Udgangsspænding 24 V Udgangsstrøm 3,75 A Strøm over Ethernet (PoE) Ja Effektnote 5.5/2.1mm DC Inkluderede strømstik typer AU, EU, UK, US Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 180 mm Dybde 95 mm Højde 23 mm Vægt 1,58 kg Emballage indhold Kabler inkluderet DC Brugervejledning Ja Emballeringsdata Pakketype Kasse Pakkebredde 260 mm Pakkedybde 252 mm Pakkehøjde 85 mm Pakkevolumen 1890 cm³ Godkendelser Compliance-certifikater CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Logistik data Harmoniseret systemkode (HS) 85176990
