Extend the reach of your PoE devices

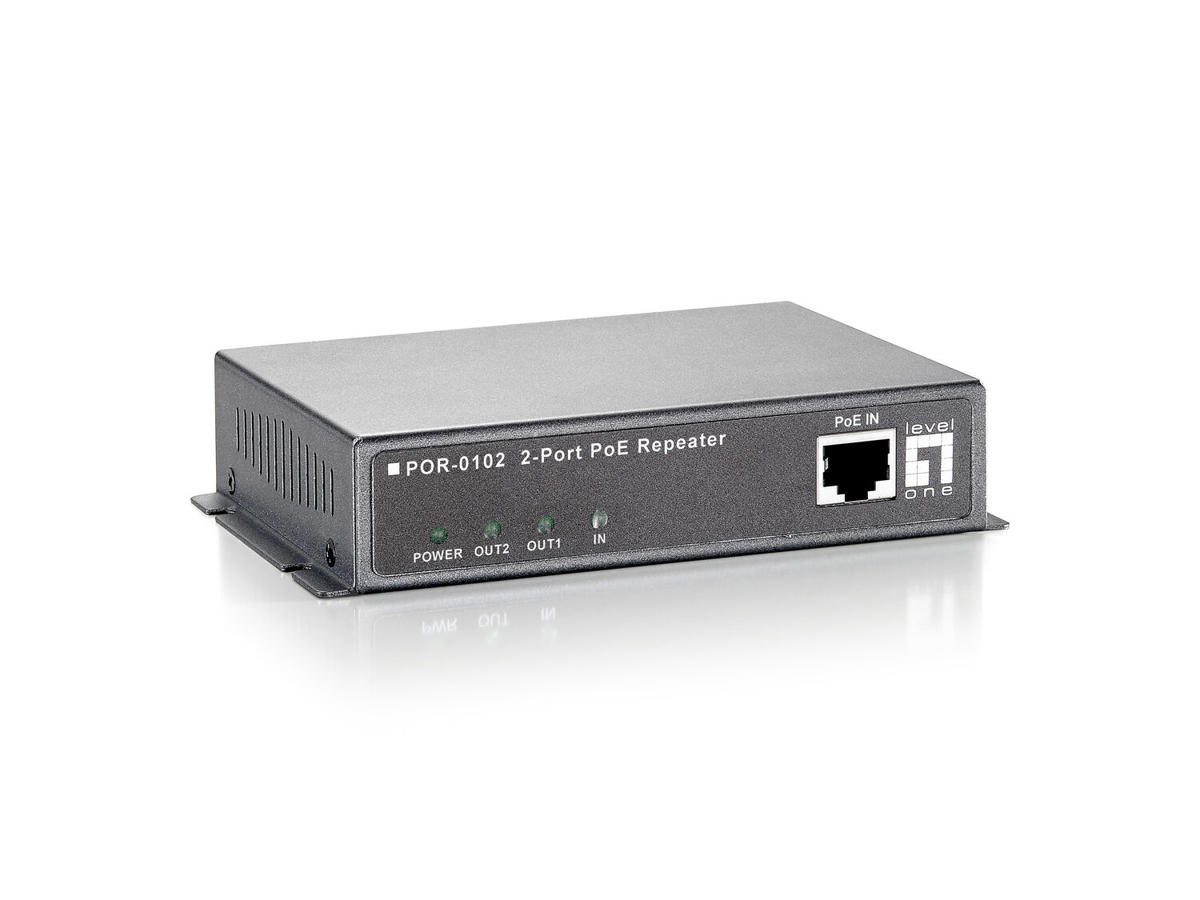

For system integrators looking for a professional solution to help extend their PoE network, POR-0102 is the perfect accessory to increase your Power over Ethernet network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility.
Simple yet durable, no software required
As a PoE Repeater, POR-0102 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that POR-0102 uses no external power supply, making it an ideal component for system integrators looking to increase the distance of the attached devices. With a durable metal housing and small footprint, POR-0102 fits into any tight deployment.
Applications
POR-0102 works great for large IP surveillance networks with many cameras deployed throughout a building or campus. It is also an ideal solution for outdoor wireless access points that are located far from the network control center.
- Extends Cat.5 cable installations to beyond 100 meters
- 2-Port Ethernet Power Sourcing Equipment(PSE)
- Forwards Power over Ethernet (PoE) to remote device
- Fully transparent no restrictions to network traffic
- No power required
- Simple to install works instantly
| Præstation | |
| Type | Netværksgentager |
| Maksimal overførselsafstand | 100 m |
| Understøttede kabeltyper | Cat5 |
| Auto MDIX IEEE | Ja |
| Duplex system | Fuld, Halvt |
| Netværk | |
| Kabelteknologi | 10/100Base-T(X) |
| Netværksstandarder | IEEE 802.3af, IEEE 802.3x |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 3 |
| Power over Ethernet (PoE) porte, antal | 3 |
| Design | |
| Produktfarve | Sort |
| LED-indikatorer | PoE, Strøm |
| Oprindelsesland | Taiwan |
| Certificering | FCC Rules Part 15 CE |
| Strømstyring | |
| Strømforbrug (maks.) | 2,5 W |
| Strøm over Ethernet (PoE) | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Vægt & størrelser | |
| Bredde | 90 mm |
| Dybde | 120 mm |
| Højde | 28 mm |
| Vægt | 400 g |
| Emballeringsdata | |
| Pakkebredde | 148 mm |
| Pakkedybde | 235 mm |
| Pakkehøjde | 80 mm |
| Pakkevægt | 530 g |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
