Extend the reach of your PoE-Plus devices

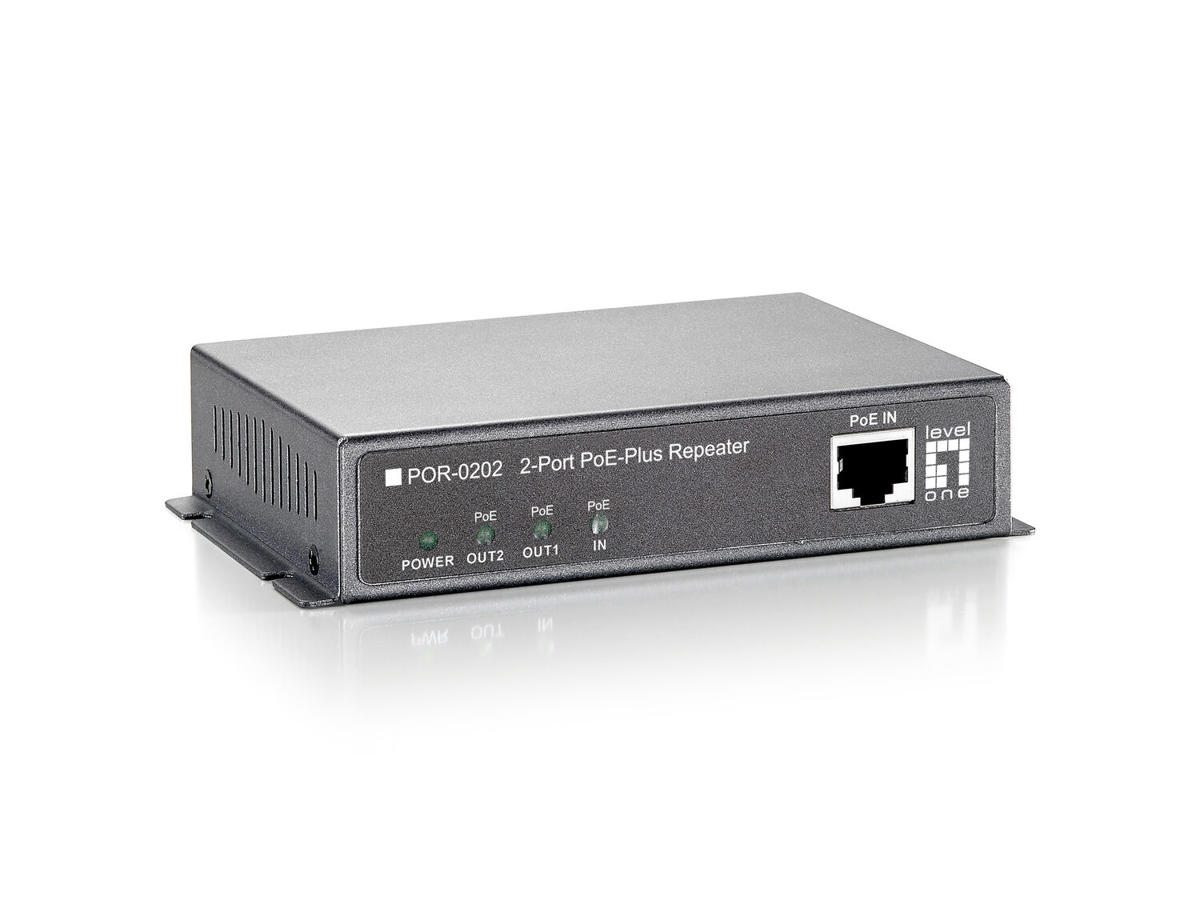

For system integrators looking for a professional solution to help extend their PoE (802.3af/at) network, POR-0202 is the perfect accessory to increase your network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility.
Normal cable runs only reach 100 meters, but with POR-0202 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.
* Maximum distance depends on the required Wattage of the PD.
Simple yet durable, no software required
As a PoE-Plus Repeater, POR-0202 receives all power from the Power Sending Equipment (PSE), such as a PoE-Plus switch. This means that POR-0202 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0202 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-0202 fits into any tight deployments.
Applications
POR-0202 is a long-ranged solution for deploying PoE IP Cameras and any Fast Ethernet PoE PD powered by 802.3at PSE.
- High Power Midspan PoE compliant to simplify deployment and installation
- Built-in 2 PoE output ports for PoE devices
- Forwards Power over Ethernet to remote device
- Extends PoE connection for another 100 meters
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Simple Plug and Play installation, no additional power supply required -
Præstation Type Netværksgentager Maksimal overførselsafstand 100 m Netværk Kabelteknologi 10/100Base-T(X) Netværksstandarder IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x Porte & Grænseflader Ethernet LAN-porte (RJ-45) 3 Power over Ethernet (PoE) porte, antal 3 Design Produktfarve Sort Monteringstype Væg LED-indikatorer PoE, Strøm Oprindelsesland Taiwan Certificering FCC Part 15, CE Strømstyring Strømforbrug (maks.) 2,5 W Strøm over Ethernet (PoE) Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) 0 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 130 mm Dybde 90 mm Højde 28 mm Vægt 400 g Emballage indhold Hurtig start guide Ja Emballeringsdata Pakketype Kasse Pakkebredde 146 mm Pakkedybde 222 mm Pakkehøjde 78 mm Pakkevægt 600 g Godkendelser Compliance-certifikater RoHS Logistik data Harmoniseret systemkode (HS) 85176990
