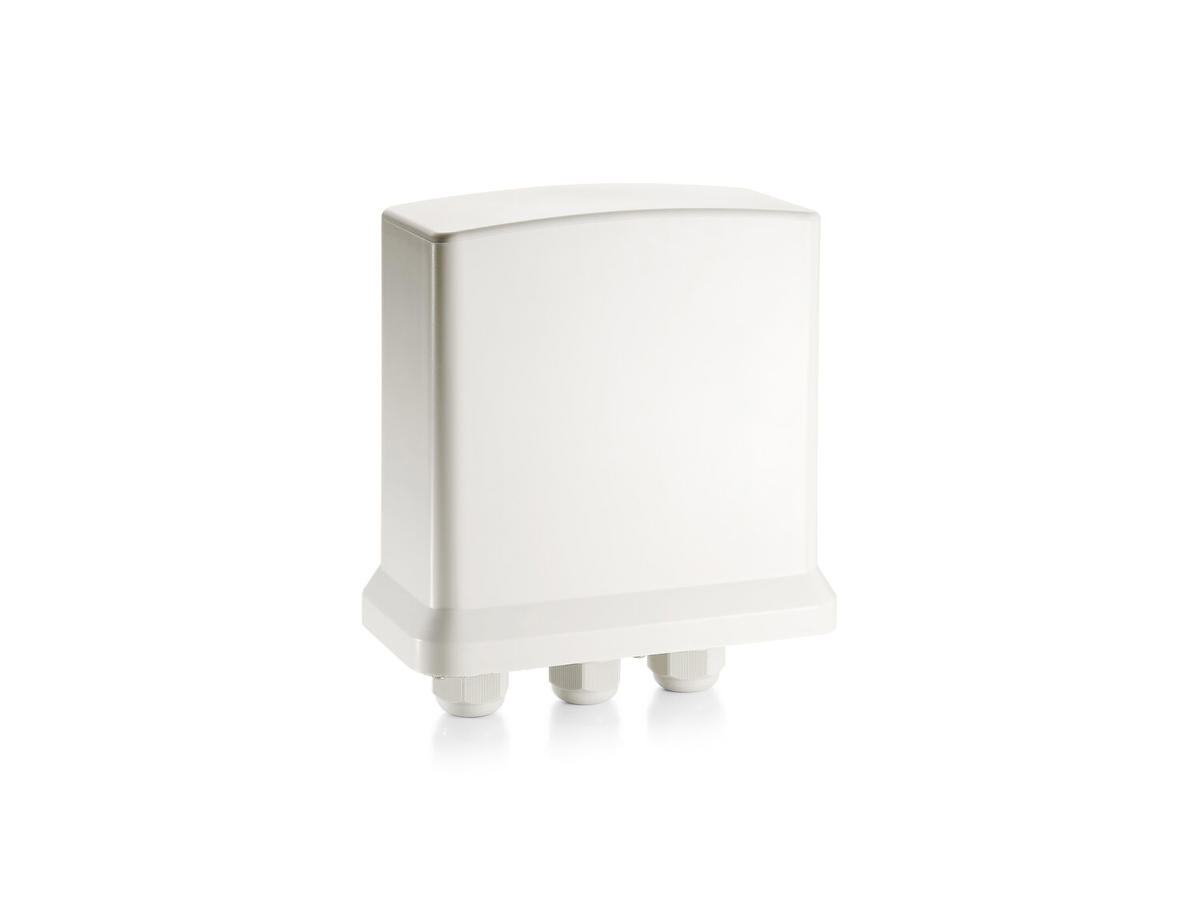

Extend the reach of your Gigabit PoE-Plus devices
For system integrators looking for a professional solution to help extend their Outdoor Gigabit PoE (802.3af/at) network, POR-1222 is the perfect accessory to increase your network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility.
Normal cable runs only reach 100 meters, but with POR-1222 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.
* Maximum distance depends on the required Wattage of the PD.
Simple yet durable, no software required
As a Gigabit PoE-Plus Repeater, POR-1222 receives all power from the Power Sending Equipment (PSE), such as a Gigabit PoE-Plus switch. This means that POR-1222 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-1222 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-1222 fits into any tight deployments.
Applications
POR-1222 is a long-ranged solution for deploying PoE IP Digital Signage and any Gigabit PoE PD powered by 802.3at Gigabit PSE.
IP65-compliant
The POR-1222 is compliant to IP65, and is therefore weatherproof from snow, rain, storms, desert heat, etc. For deployment in any harsh weather conditions, this PoE Repeater is up to the challenge. -
Præstation Type Netværksgentager Maksimal overførselsafstand 100 m Dataoverførselshastighed 1000 Mbit/s Netværk Kabelteknologi 10/100/1000Base-T(X) Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x Porte & Grænseflader Ethernet LAN-porte (RJ-45) 3 Power over Ethernet (PoE) porte, antal 3 Design Produktfarve Hvid Monteringstype Væg Oprindelsesland Taiwan Certificering FCC Part 15, CE Strømstyring Strømforbrug (maks.) 2,5 W Strøm over Ethernet (PoE) Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) 0 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 200 mm Dybde 110 mm Højde 240 mm Vægt 700 g Emballage indhold Hurtig start guide Ja Monteringssæt til væggen Ja Emballeringsdata Pakkebredde 255 mm Pakkedybde 110 mm Pakkehøjde 210 mm Pakkevægt 900 g Godkendelser Compliance-certifikater RoHS Logistik data Harmoniseret systemkode (HS) 85176990
