Product Overview

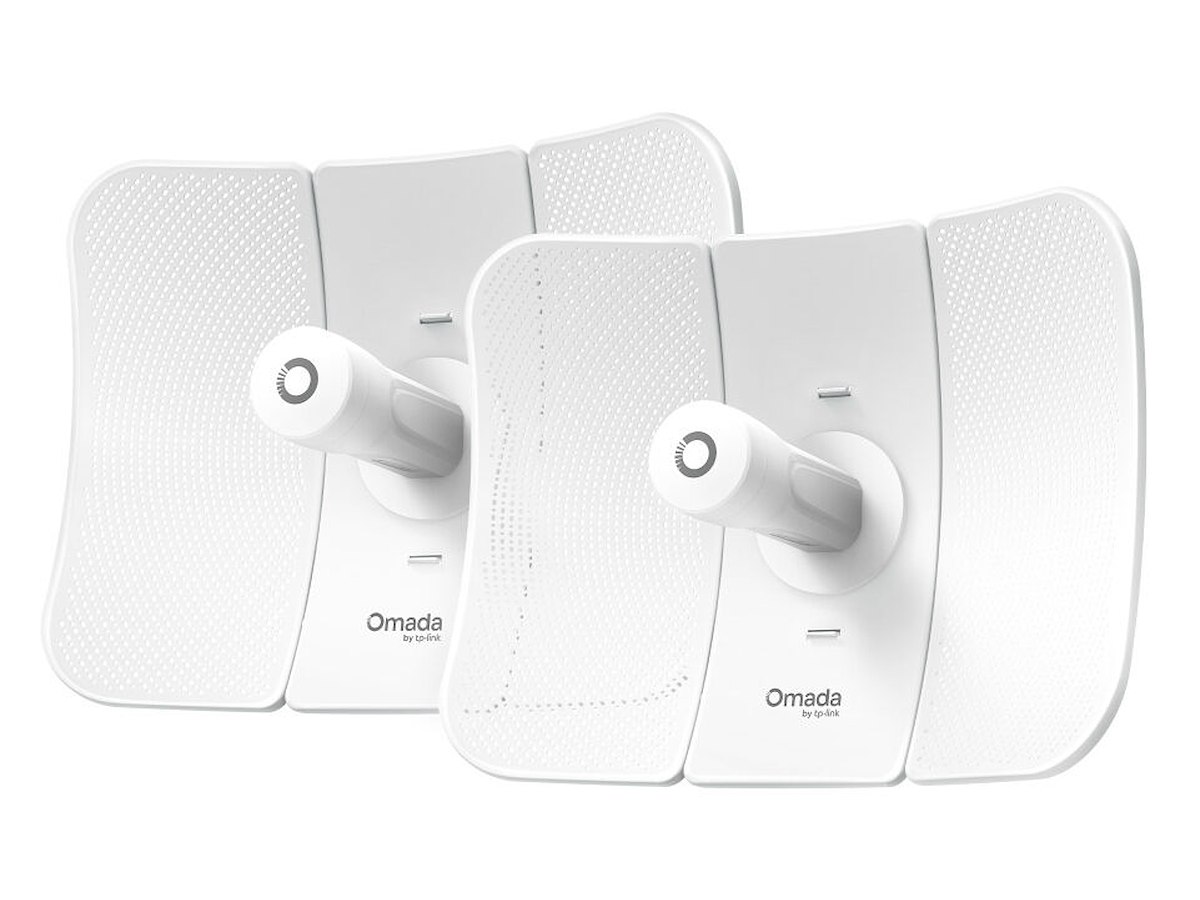

Omada 5 GHz 867 Mbps Indoor/Outdoor Wireless Bridge Beam Bridge 5 UR KIT is an enterprise-grade Wi‑Fi bridge kit engineered for ultra-range transmission up to 9.3 miles (15 km). It delivers reliable pointto-point connectivity in remote outdoor environments—ideal for forests, mining sites, islands, and other hard-to-reach locations where extending network access is critical.
Business-Grade 15-km Ultra-Range Wi-Fi Connectivity
It delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission, and it is ideal for connecting remote sites in rural and hard-to-wire environments.
Effortless Plug-and-Play Setup
Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go, ideal for quick and easy deployments.
App-Guided Alignment for Optimal Performance
Simply bridge alignment with real-time signal strength visualization on the Omada app. Perfect for installations where bridges are far apart, this feature ensures optimal alignment and connectivity. The Omada app also allows users to easily verify installations, test transmission speeds, and troubleshoot connections for optimal performance.
Simple Deployment with PoE Support
1× Gigabit PoE port delivers both power and data through a single cable, cutting deployment costs and outdoor wiring complexity. It supports both 802.3af PoE and Passive PoE power supply.
Outdoor-Ready Design for Extreme Conditions
Beam Bridge 5 UR KIT supports IP65 weatherproof and 6kV lightning protection safeguard your network in harsh outdoor environments. Additionally, an extended temperature tolerance of -40 °C to 70 °C makes it ideal for extremely hot and cold environments.
Remote Monitoring & Management
Use the Omada app for easy on-site setup-no internet required. For additional flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere. -
Dataoverførsel Maksimal dataoverførselshastighed 867 Mbit/s Maksimal overførselsafstand 15000 m Antenne Antennedesign Ekstern Antenne type 2x2 Niveau for antennestyrke (maks.) 23 dBi Trådløse LAN funktioner Wi-Fi Ja Wi-Fi-bånd Enkelt frekvensbånd (5 GHz) Bedste Wi-Fi standard Wi-Fi 5 (802.11ac) Frekvensbånd 5.150 - 5.850 GHz Signalstyrke 27 dBm Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK Netværk Ethernet LAN Ja Ethernet LAN-grænsefladetype Gigabit Ethernet Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Netværksstandarder IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Sikkerhed Sikkerhedsalgoritmer EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SNMPv2, SNMPv3, SSID, WPA2 Administrationsfunktioner Webbaseret administration Ja DHCP-klient Ja Funktioner Produkttype Netværksbro Monteringstype Pæl Produktfarve Hvid LED-indikatorer Ja Knap til nulstilling Ja Kode for international beskyttelse (IP) IP65 Beskyttelse ved overspænding Ja Netværkstidsprotokol (NTP) klient Ja Intern hukommelse 128 MB Gennemsnitstid mellem fejl (MTBF) 360000 t Strømstyring Strømkilde type PoE Strømforbrug (typisk) 15,8 W Strømforbrug (maks.) 15,8 W Strøm over Ethernet (PoE) Ja Driftsbetingelser Driftstemperatur (T-T) -40 - 70 °C, -40 - 158 °F Relativ luftfugtighed ved drift (H-H) 10 - 90% Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Godkendelser Compliance-certifikater Federal Communications Commission (FCC) Certificering ETSI EN 300 328, ETSI EN 301 893, EN 55032, EN 55035, EN 301489-1, EN 301489-17, EN 62368-1, IEC 62368-1 Vægt & størrelser Bredde 366 mm Dybde 280 mm Højde 207 mm Vægt 1,1 kg Emballage indhold Emballageindhold • Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord Emballeringsdata Pakkebredde 390 mm Pakkedybde 296 mm Pakkehøjde 165 mm Pakkevægt 3,74 kg Pakketype Kasse
