Varenummer: MST14CD122HD
Mere information
-

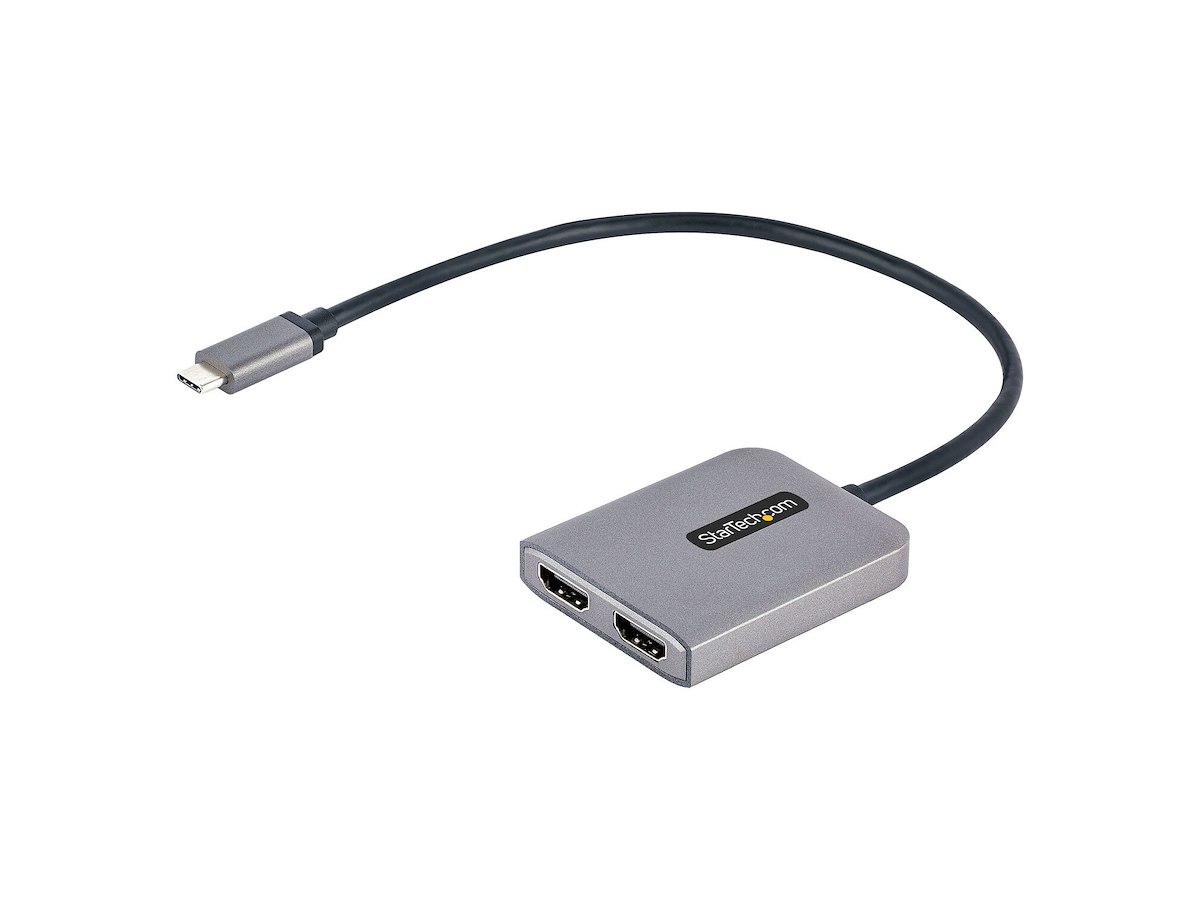

Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent HDMI® monitors
This USB-C to HDMI MST Hub allows you to connect two HDMI monitors, using a USB-C enabled host device.
Multi-tasking Made Easy
This USB-C to HDMI video splitter connects up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations, for users in your organization enabling easier multi-tasking resulting in increased productivity.
Host Connection
Output 1 Resolution
Output 2 Resolution
DisplayPort 1.4 with DSC
4K 60Hz
4K 60Hz
DisplayPort 1.4
4K 60Hz
4K 30Hz
DisplayPort 1.2
4K 30Hz
4K 30Hz
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Hassle-Free Setup
Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 4, Thunderbolt 3, and USB4 enabled Windows devices. Plug-and-play installation with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, meaning no external power is required.
MST14CD122HD is backed by a StarTech.com 3-year warranty, and free lifetime multilingual, North American based technical support.
The StarTech.com Advantage -
Præstation DVI-udgang Ingen HDMI udgang Ja Udgang DisplayPort Ja Antal understøttede skærme 2 USB-stik type USB Type-C USB-stik køn Hanstik USB-stik formfaktor Lige High Dynamic Range (HDR) understøttet Ja Antal HDMI-porte 2 Maksimal opløsning 3840 x 2160 pixel Opdateringshastighed ved maksimal opløsning 60 Hz Lyd-output kanaler 7.1 kanaler Chipsæt Synaptics VMM5200 Dataoverførselshastighed (maks.) 32,4 Gbit/sek. Design Produktfarve Sort, Grå Husmateriale Plast Integreret USB-kabel Ja Systemkrav Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64 Vægt & størrelser Bredde 105 mm Dybde 43 mm Højde 14 mm Vægt 55 g USB-kabellængde 0,3 m Driftsbetingelser Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -10 - 55 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Emballeringsdata Pakkebredde 142 mm Pakkedybde 170 mm Pakkehøjde 30 mm Pakkevægt 108,8 g Tekniske detaljer Compliance-certifikater CE, RoHS Logistik data Produkter pr. hovedkasse (udvendigt) 70 stk Hovedkassens bredde (udvendigt) 473 mm Hovedkassens længde (udvendigt) 331 mm Hovedkassen højde (udvendigt) 440 mm Harmoniseret systemkode (HS) 84733020
