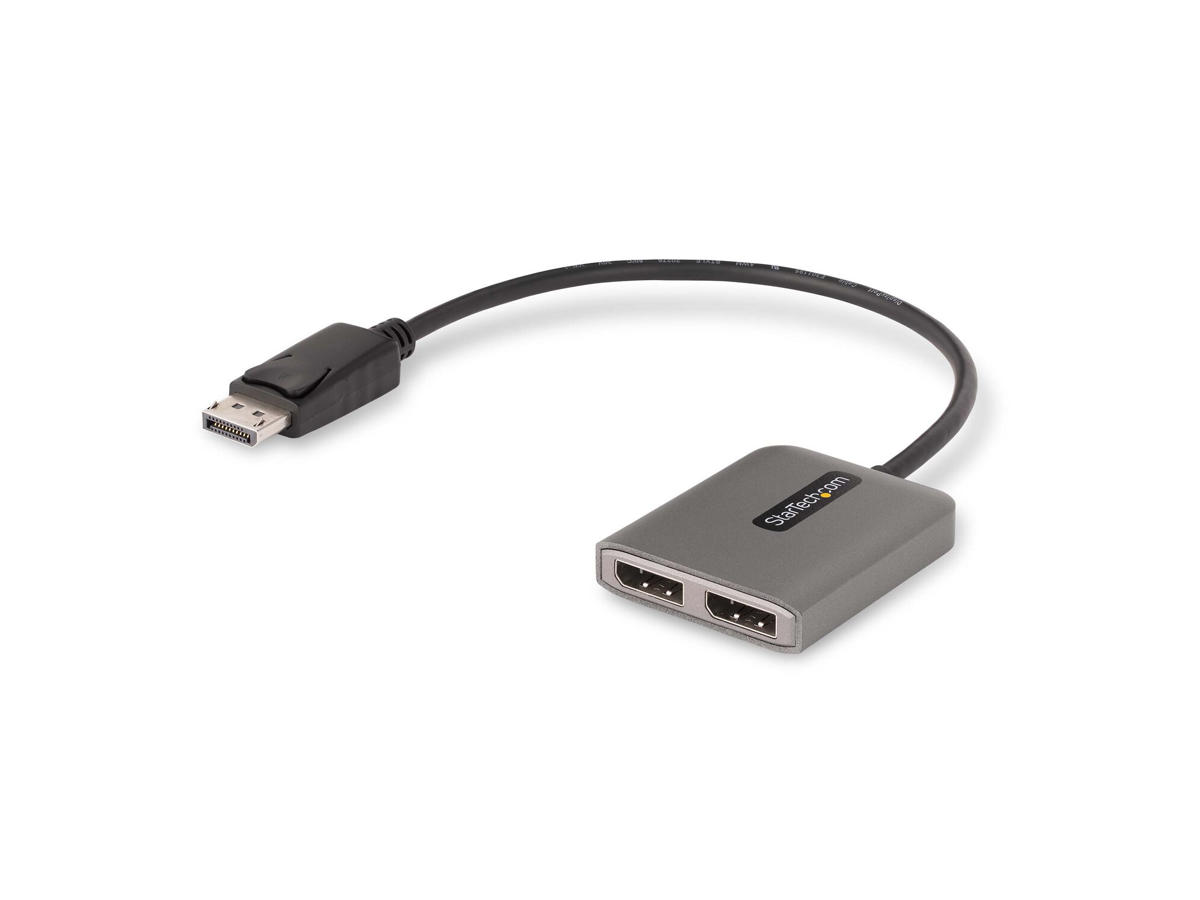

Create a high-performance dual-display workstation by connecting a DisplayPort™ device to two independent DisplayPort™ monitorsThis DisplayPort to DisplayPort MST Hub enables a connection to two DP monitors, using a single DisplayPort enabled host device.4K at 60Hz and HDRMulti-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.Host ConnectionMaximum Resolution Output 1Maximum Resolution Output 2Example Host Processor/GraphicsDisplayPort 1.4 with DSC5K 60Hz5K 60Hz*Intel 11th Gen with DSCIntel 12th Gen Processors & LaterDedicated AMD & Nvidia GPU's that support DSCDisplayPort 1.44K 60Hz4K 60HzIntel 10 th Gen (Ice Lake Only)Intel 11th Gen Processors & LaterDedicated AMD and Nvidia GPU's that support DP 1.4DisplayPort 1.24K 30Hz4K 30HzIntel 8 th - 10th Gen Processors & Later*Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host deviceMultitasking Made EasyConfigure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.Hassle-Free SetupThis MST Hub works with DisplayPort enabled Windows devices featuring 11th generation (and later) processors, or dedicated graphics cards that have a DisplayPort 1.4 output. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is USB Powered and comes with the USB Micro-B power cable.This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.The StarTech.com Advantage
Funktioner | |
Kabellængde | 0,3 m |
Stik 1 | DisplayPort |
Stik 2 | 2 x DVI |
Stik 1 køn | Hanstik |
Stik 2 køn | Hunstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Strømkilde | USB |
HDCP | Ja |
HDCP-version | 2.2 |
DisplayPort-version | 1.4 |
Maksimal opløsning | 4096 x 2160 pixel |
Opdateringshastighed ved maksimal opløsning | 60 Hz |
Produktfarve | Grå |
Chipsæt | Synaptic VMM5220 |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 90% |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
Bæredygtighedscertifikater | CE, RoHS |
Vægt & størrelser | |
Vægt | 53 g |
Bredde | 105 mm |
Dybde | 43 mm |
Højde | 14 mm |
Emballeringsdata | |
Pakkebredde | 142 mm |
Pakkedybde | 170 mm |
Pakkehøjde | 30 mm |
Pakkevægt | 110 g |
Emballageindhold | Micro-USB Power Cable |
Logistik data | |
Hovedkassens bredde (udvendigt) | 473 mm |
Hovedkassens længde (udvendigt) | 331 mm |
Hovedkassen højde (udvendigt) | 440 mm |
Produkter pr. hovedkasse (udvendigt) | 70 stk |
