Varenummer: CDP2DPEC
Mere information
-
Extended Cable | DP 1.4 | HBR3 | Thunderbolt 3 Compatible

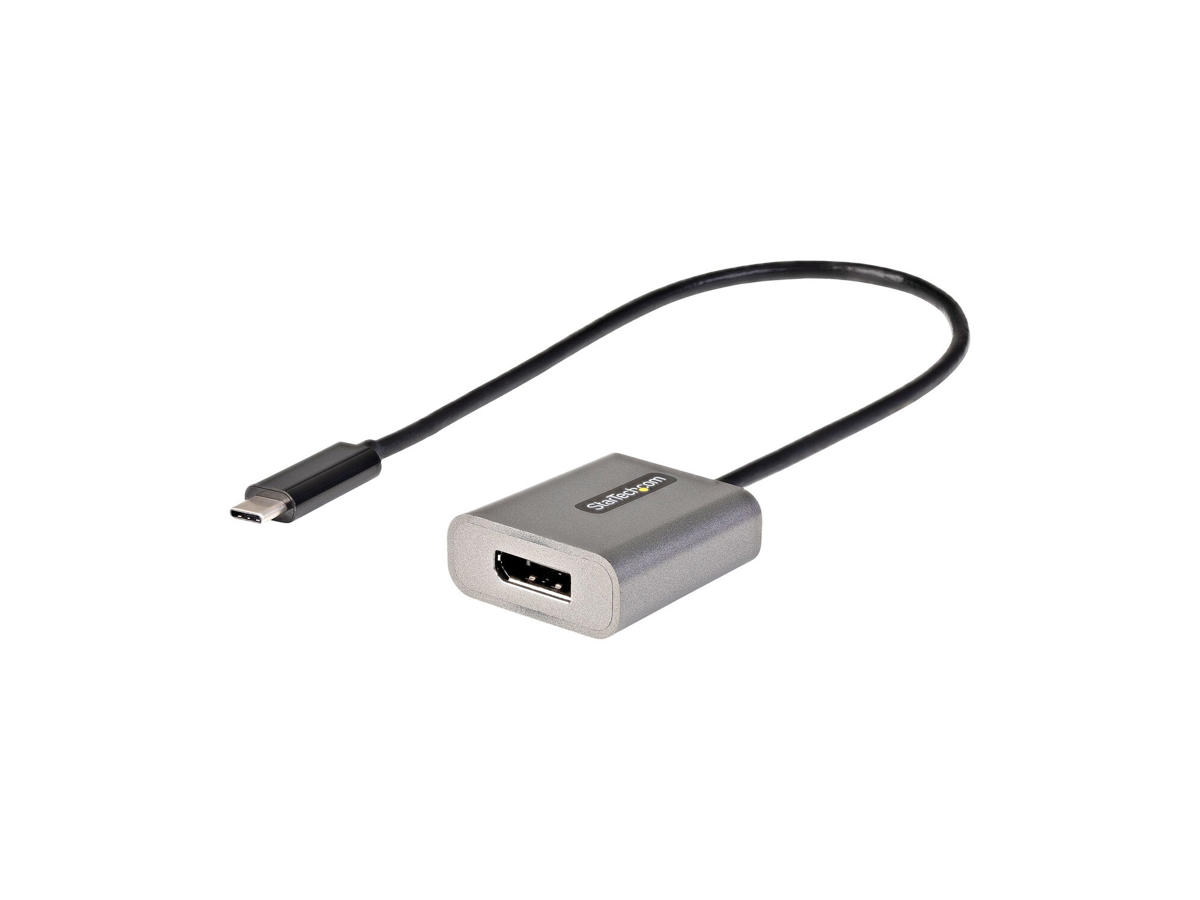

This USB-C™ to DisplayPort™ adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop, tablet, smartphone or other USB C device.
Extended Cable Length
This USB C adapter is equipped with an extra-long 12" (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.
Ultra HD 4K & 8K Resolution
The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.
With this adapter, you can also achieve an output resolution of up to 7680x4320 at 60Hz (with a laptop supporting DP 1.4 and DSC) or 7680x4320 at 30Hz (without DSC), which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.
Host
DP 1.4 HBR3 (with DSC)
DP 1.4 HBR3 (without DSC)
DP 1.2 HBR2
8K Output
7680x4320 @ 60Hz
7680x4320 @ 30Hz
N/A
4K Output
3840x2160 @ 60Hz
3840x2160 @ 60Hz
3480x2160 @ 60Hz
1080p Output
1920x1200 @ 60Hz
1920x1200 @ 60Hz
1920x1200 @ 60Hz
Ultimate Portability
This USB Type-C video adapter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag while commuting between your home, office or traveling for business.
The CDP2DPEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4
• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
The StarTech.com Advantage -
Præstation DVI-udgang Ingen HDMI udgang Ingen Udgang DisplayPort Ja Antal understøttede skærme 1 USB-stik type USB Type-C USB-stik køn Hanstik USB-stik formfaktor Lige Antal DisplayPorts 1 HDCP Ja DisplayPort-version 1.4 Maksimal opløsning 7680 x 4320 pixel Opdateringshastighed ved maksimal opløsning 60 Hz Lyd-output kanaler 2.0 kanaler Chipsæt VL103 Dataoverførselshastighed (maks.) 32,4 Gbit/sek. Design Produktfarve Sort, Grå Husmateriale Plast Integreret USB-kabel Ja Vægt & størrelser Bredde 38 mm Dybde 390 mm Højde 15 mm Vægt 26 g USB-kabellængde 0,3 m Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -10 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 85% Emballeringsdata Pakkebredde 125 mm Pakkedybde 225 mm Pakkehøjde 16 mm Pakkevægt 32 g Tekniske detaljer Compliance-certifikater CE, RoHS Logistik data Produkter pr. hovedkasse (udvendigt) 200 stk Hovedkassens bredde (udvendigt) 330 mm Hovedkassens længde (udvendigt) 500 mm Hovedkassen højde (udvendigt) 220 mm Harmoniseret systemkode (HS) 84733020
