Management Wi-Fi Radio

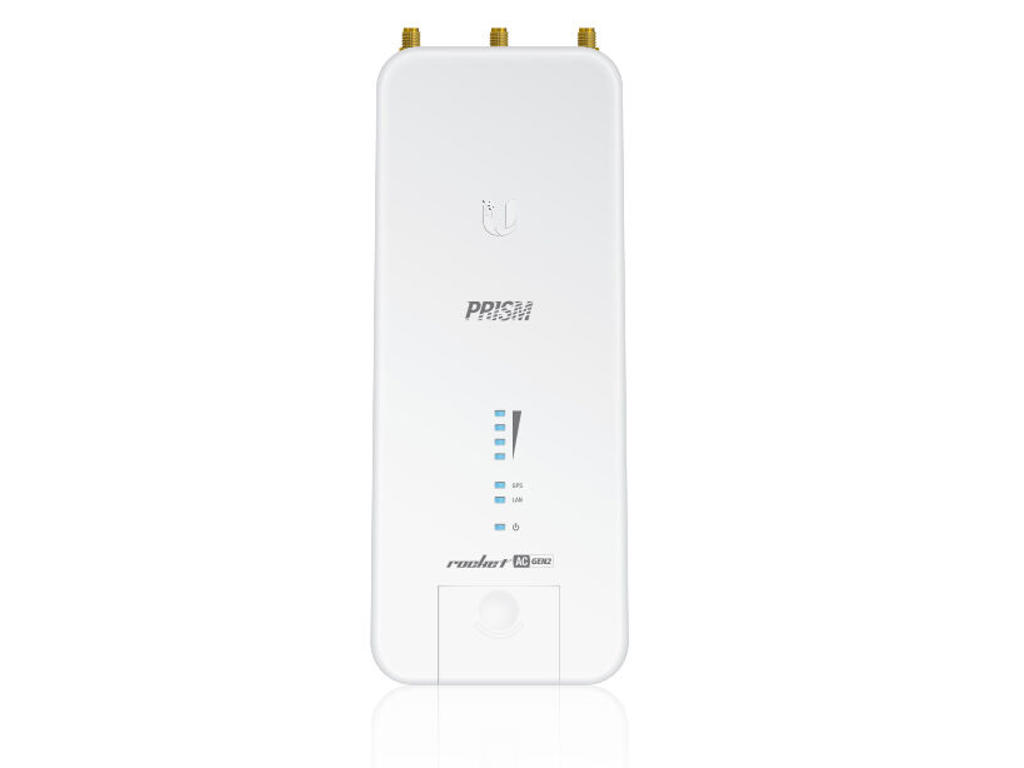

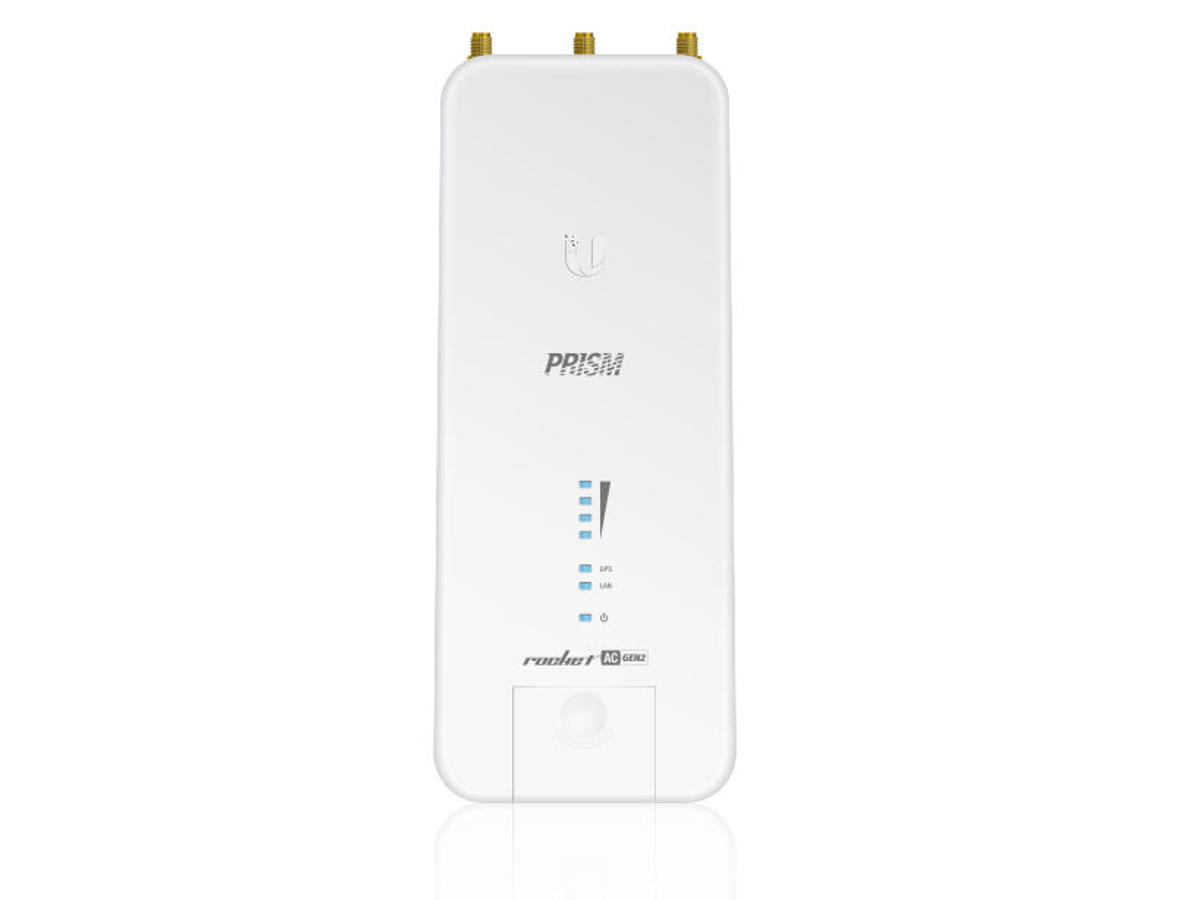

The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The Rocket® Prism AC features enhanced protection against ESD events.
GPS Synchronization
The Rocket® Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
Full-Band 5 and 2.4 GHz Coverage
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
The 2.4 GHz band is covered by the Rocket Prism 2AC. -
Funktioner 5 GHz Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s VLAN understøttelse Ja Servicekvalitet support (QoS) Ja Sikkerhed Sikkerhedsalgoritmer WPA2-AES Protokoller DHCP-klient Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Antal USB 2.0-porte 0 Strømstyring Strøm over Ethernet (PoE) Ja Vekselstrømsindgangsspænding 24 V Indgangsstrøm 1 A Strømforbrug (maks.) 9,5 W Design Produktfarve Hvid LED-indikatorer LAN, Strøm, Signalstyrke Antenne Antennestik type RP-SMA Præstation Indbygget processer Ja Intern hukommelse 128 MB Godkendelser Certificering FCC, IC, CE Vægt & størrelser Bredde 88 mm Dybde 40 mm Højde 230 mm Vægt 400 g Emballage indhold Medfølgende software Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 5 - 95% Driftstemperatur (T-T) -40 - 80 °C Logistik data Harmoniseret systemkode (HS) 85176990
