Compact CPE Design

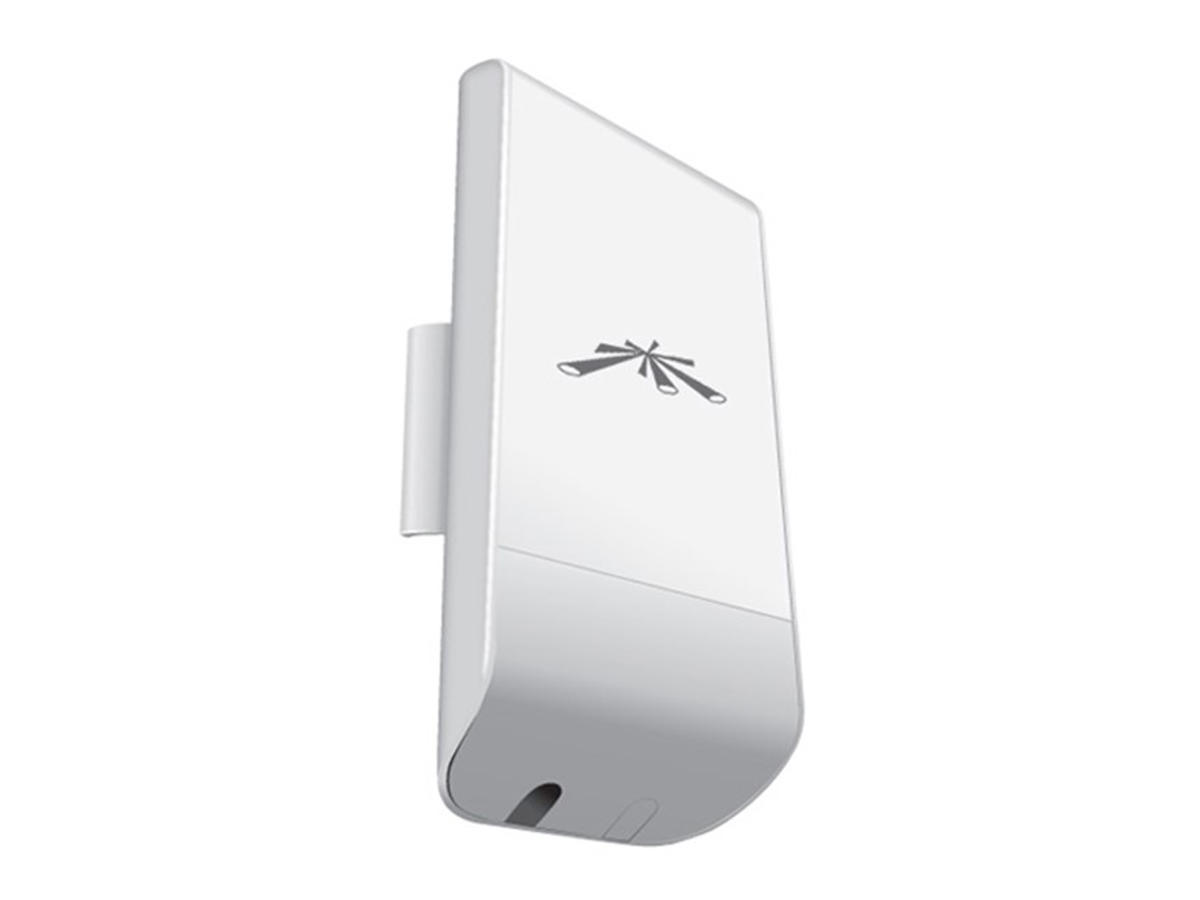

The NanoStationM features the CPE design that expanded the global Wireless ISP industry.
Plug and Play Installation
The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting.
Versatile Application Use
The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.
Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Window/Wall Mounting Kit
Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning. -
Funktioner 2.4 GHz Ja Maksimal dataoverførselshastighed 150 Mbit/s Wi-Fi-datahastighed (maks.) 150 Mbit/s Ethernet LAN-datahastigheder 10,100 Mbit/s Frekvensbånd 2.412-2.462 GHz Netværksstandarder IEEE 802.3, IEEE 802.3u Maksimal udendørsinterval 10000 m Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Strømstyring Strøm over Ethernet (PoE) Ja Vekselstrømsindgangsspænding 24 V Indgangsstrøm 0.5 A Strømforbrug (typisk) 5,5 W Design Produktfarve Hvid Husmateriale Plast LED-indikatorer Ja Intern Ingen Antenne Niveau for antennestyrke (maks.) 8 dBi Præstation Indbygget processer Ja Processormodel Qualcomm Atheros Processorfrekvens 400 MHz Processor arkitektur MIPS 24Kc Flashhukommelse 8 MB Intern hukommelse 32 MB Godkendelser Certificering RoHS Vægt & størrelser Bredde 80 mm Dybde 31 mm Højde 163 mm Vægt 180 g Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 5 - 95% Driftstemperatur (T-T) -30 - 75 °C Logistik data Harmoniseret systemkode (HS) 85176990
