Mere information
-

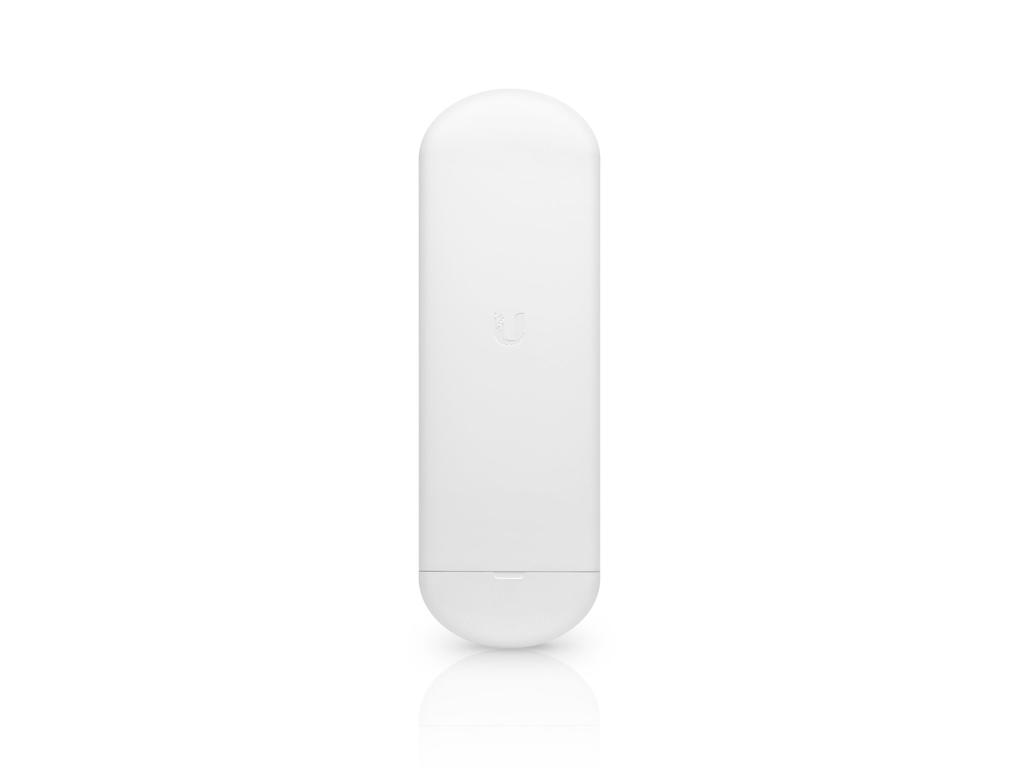

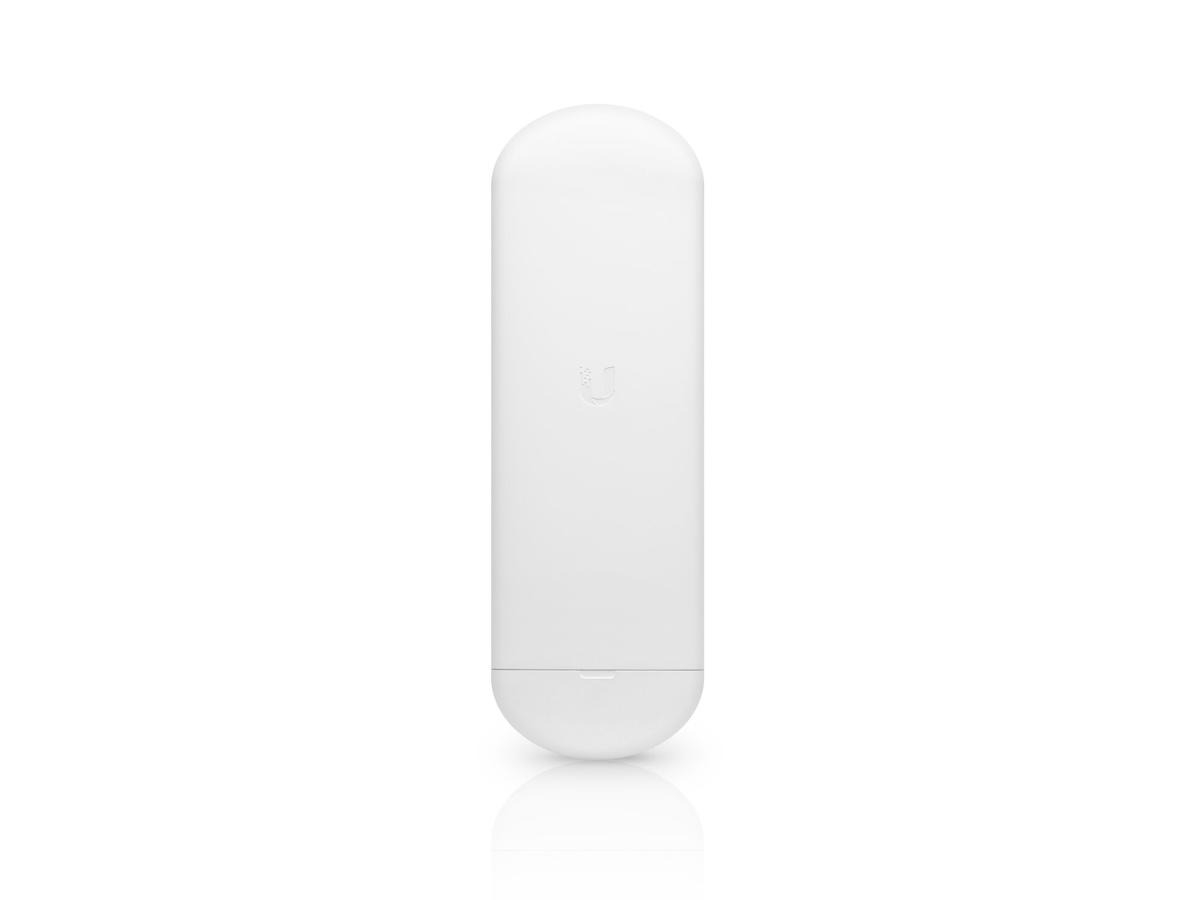

The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.
Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability. -
Funktioner 5 GHz Ja Maksimal dataoverførselshastighed 1000 Mbit/s Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Gennemløbs datahastighed 450 Mbit/s Frekvensområde 80 MHz Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK Maksimal udendørsinterval 15000 m Porte & Grænseflader Ethernet LAN-porte (RJ-45) 2 Antal USB 2.0-porte 0 Strømstyring Strøm over Ethernet (PoE) Ja Vekselstrømsindgangsspænding 24 V Indgangsstrøm 0.5 A Design Placering Loft Produktfarve Hvid LED-indikatorer Netværk, Strøm, Signalstyrke Intern Ingen Antenne Niveau for antennestyrke (maks.) 16 dBi Præstation Indbygget processer Ja Intern hukommelse 64 MB Operativsystem installeret AirOS Godkendelser Certificering CE, FCC, IC Vægt & størrelser Bredde 257 mm Dybde 84 mm Højde 41 mm Vægt 233 g Emballage indhold PoE-adapter inkluderet Ja Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 5 - 95% Driftstemperatur (T-T) -40 - 70 °C Logistik data Harmoniseret systemkode (HS) 85176990
