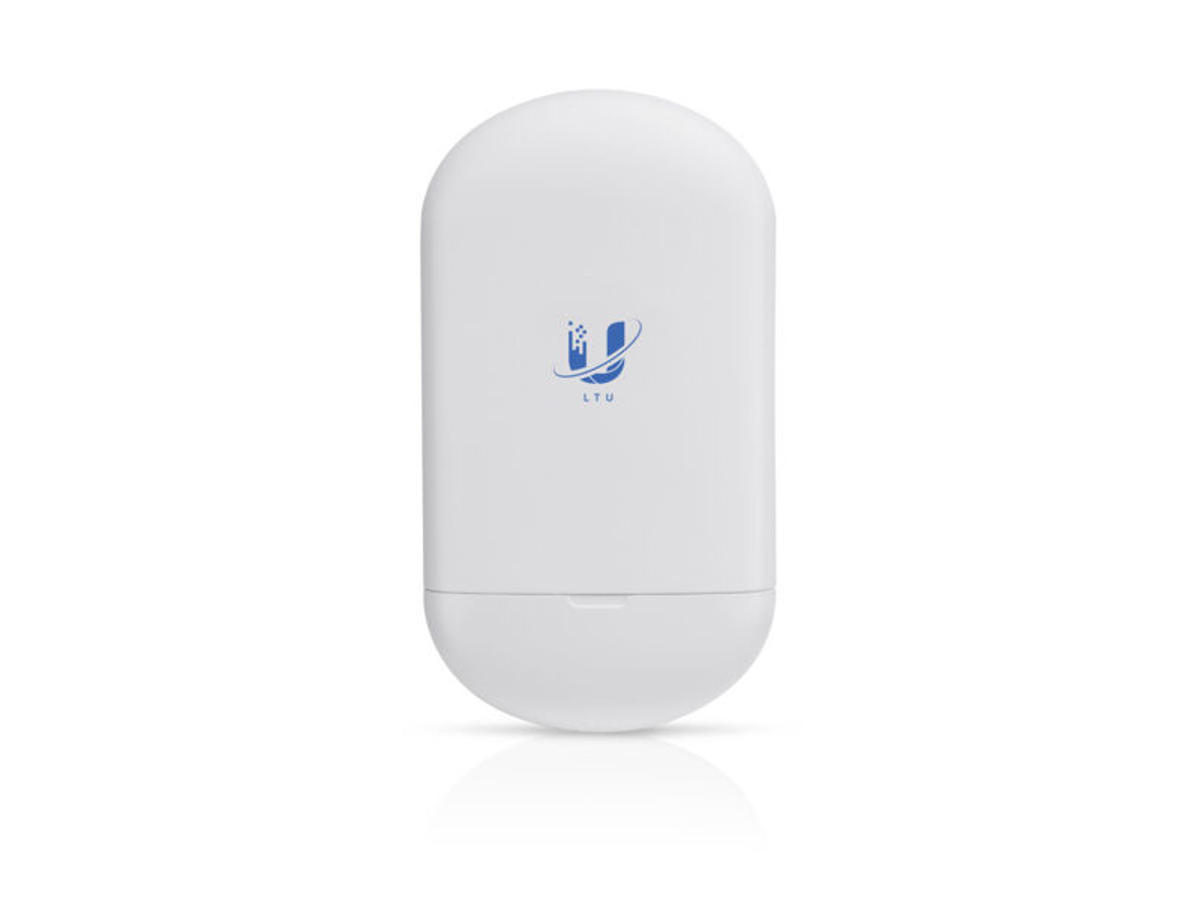

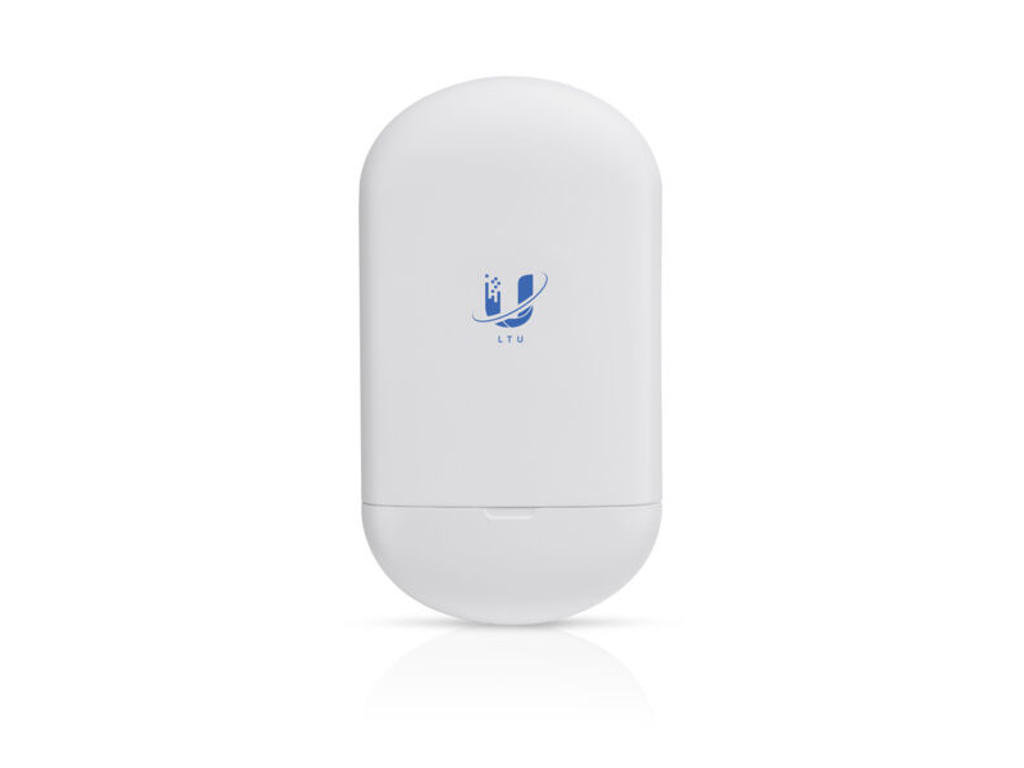

5 GHz PtMP LTU Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation
Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE. LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
Functions in a PtMP environment with the LTU-Rocket as the basestation
| Funktioner | |
| 5 GHz | Ja |
| Maksimal dataoverførselshastighed | 1000 Mbit/s |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal USB 2.0-porte | 0 |
| Strømstyring | |
| Strøm over Ethernet (PoE) | Ja |
| Vekselstrømsindgangsspænding | 24 V |
| Indgangsstrøm | 0.5 A |
| Strømforbrug (maks.) | 8,5 W |
| Design | |
| Placering | Pæl |
| Produktfarve | Hvid |
| Antenne | |
| Antenne type | Intern |
| Niveau for antennestyrke (maks.) | 13 dBi |
| Godkendelser | |
| Certificering | CE, FCC, IC |
| Vægt & størrelser | |
| Bredde | 84 mm |
| Dybde | 39,5 mm |
| Højde | 153 mm |
| Vægt | 250 g |
| Emballage indhold | |
| Antal pr. pakke | 1 stk |
| PoE-adapter inkluderet | Ja |
| Monteringssæt | Ingen |
| Hurtig start guide | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -40 - 60 °C |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
