Varenummer: EAP653 UR
Mere information
-
Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Ultra-Slim Design Brings More Agility

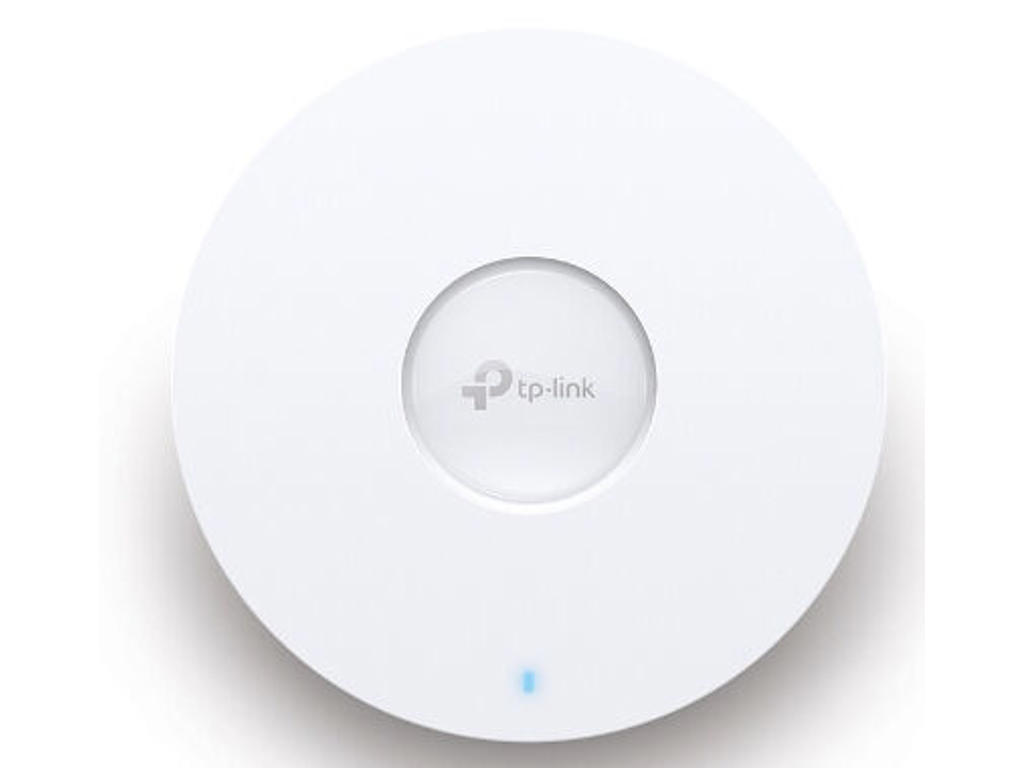

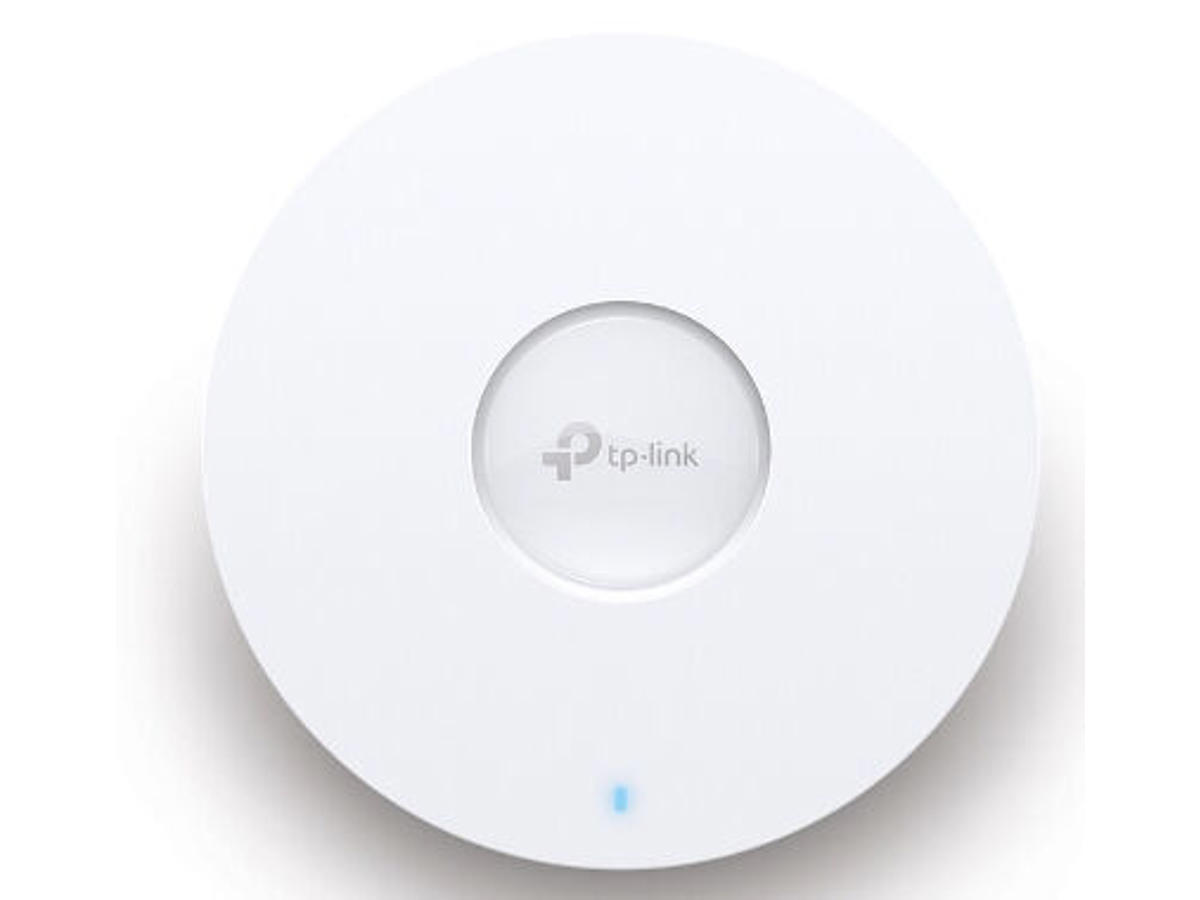

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.
Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots. -
Funktioner 2.4 GHz Ja 5 GHz Ja 6 GHz Ingen Maksimal dataoverførselshastighed 2976 Mbit/s Maksimal dataoverførselshastighed (2,4 GHz) 574 Mbit/s Maksimal dataoverførselshastighed (5 GHz) 2402 Mbit/s Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Frekvensbånd 2.4 - 5 GHz Netværksstandarder IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h Kabelteknologi 10/100/1000Base-T(X) Antal brugere 250 bruger(e) Automatisk kanalvalg Ja Automatisk kanalscanning Ja MIMO Ja MIMO type Multi User MIMO Spread-spectrum-metode OFDMA Tilpas AP stilstandsfunktioner Maskenet VLAN understøttelse Ja Begrænsning af hastighed Ja Flowkontrol support Ja Båndstyring Ja Airtime Fairness (ATF) Ja Servicekvalitet support (QoS) Ja Stråleformning Ja Sendeeffekt (CE) 27 dBm Sendeeffekt (FCC) 22 dBm Sikkerhed Sikkerhedsalgoritmer HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3 Filtrering af MAC-adresser Ja Administrationsfunktioner Webbaseret administration Ja Syslog Ja Firmware kan opgraderes Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Antal USB 2.0-porte 0 DC-in-stik Ja Strømstyring Strøm over Ethernet (PoE) Ja DC spændingsområde 12 V Design Placering Loft, Væg Produktfarve Hvid Knap til nulstilling Ja LED-indikatorer Ja Antenne Antenne type Intern Vægt & størrelser Bredde 160 mm Dybde 160 mm Højde 33,6 mm Emballeringsdata Pakketype Kasse Emballage indhold Antal pr. pakke 1 stk Monteringssæt Ja Hurtig start guide Ja Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 10 - 90% Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
