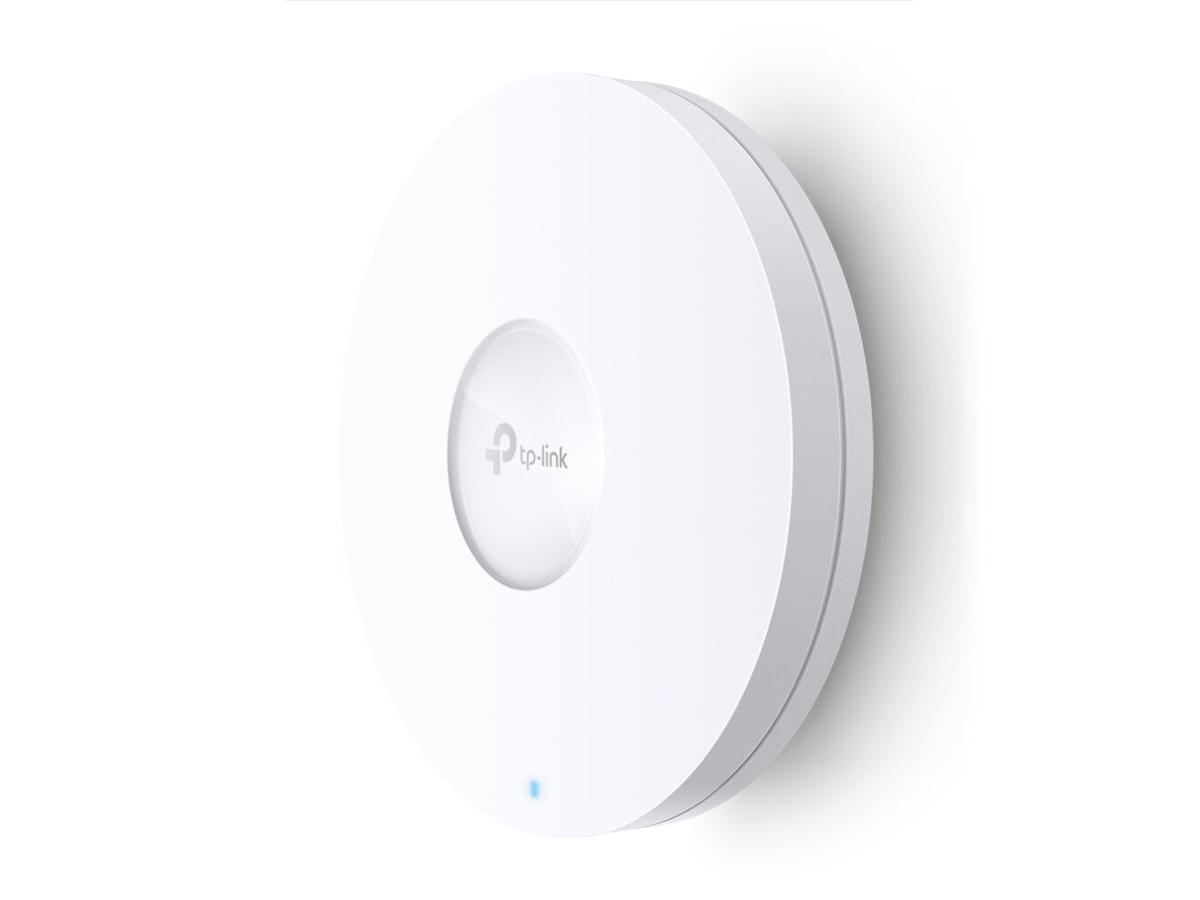

Varenummer: EAP620 HD
Mere information
-
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business. -
Funktioner 2.4 GHz Ja 5 GHz Ja 6 GHz Ingen Maksimal dataoverførselshastighed 1201 Mbit/s Maksimal dataoverførselshastighed (2,4 GHz) 574 Mbit/s Maksimal dataoverførselshastighed (5 GHz) 1201 Mbit/s Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Frekvensbånd 2.4 - 5 GHz Netværksstandarder IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at Kabelteknologi 10/100/1000Base-T(X) Antal brugere 1020 bruger(e) Automatisk kanalvalg Ja Automatisk kanalscanning Ja MIMO Ja MIMO type Multi User MIMO Spread-spectrum-metode OFDMA Tilpas AP stilstandsfunktioner Maskenet VLAN understøttelse Ja Begrænsning af hastighed Ja Flowkontrol support Ja Båndstyring Ja Airtime Fairness (ATF) Ja Servicekvalitet support (QoS) Ja Stråleformning Ja Sendeeffekt (CE) 20/23 dBm Sendeeffekt (FCC) 23 dBm Sikkerhed Sikkerhedsalgoritmer SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK Filtrering af MAC-adresser Ja Remote Authentication Dial-In User Service (RADIUS) Ja Adgangskontrolliste (ACL) Ja Administrationsfunktioner Webbaseret administration Ja Syslog Ja Firmware kan opgraderes Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Antal USB 2.0-porte 0 DC-in-stik Ja Strømstyring Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) -type understøttet Active PoE, Passive PoE DC spændingsområde 12 V Design Placering Loft, Væg Produktfarve Hvid Knap til nulstilling Ja LED-indikatorer Ja Antenne Antenne type Intern Antenneretningstype Omniretningsbestemt Godkendelser Certificering CE, FCC, RoHS Vægt & størrelser Bredde 160 mm Dybde 160 mm Højde 33 mm Emballeringsdata Pakketype Kasse Emballage indhold Antal pr. pakke 1 stk Monteringssæt Ja Hurtig start guide Ja Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 10 - 90% Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
