Unprecedented Thin Design with 11mm

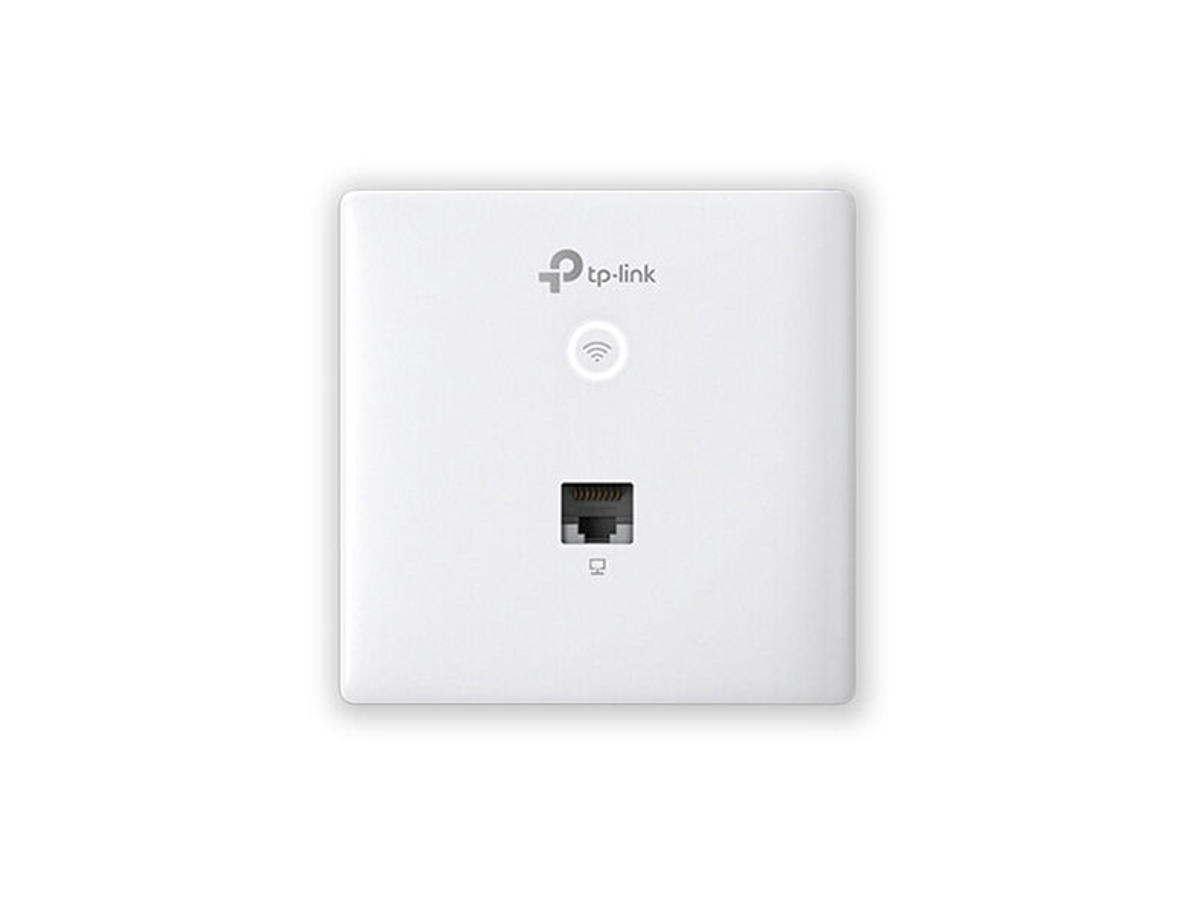

Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. -
Funktioner 2.4 GHz Ja 5 GHz Ja 6 GHz Ingen Maksimal dataoverførselshastighed 1167 Mbit/s Maksimal dataoverførselshastighed (2,4 GHz) 300 Mbit/s Maksimal dataoverførselshastighed (5 GHz) 867 Mbit/s Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Frekvensbånd 2.4 - 5 GHz Netværksstandarder IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at Kabelteknologi 10/100/1000Base-T(X) Automatisk kanalvalg Ja Automatisk kanalscanning Ja MIMO Ja MIMO type Multi User MIMO Wi-Fi-multimedie (WMM)/(WME) Ja VLAN understøttelse Ja Vituelle LAN funktioner Port-based VLAN, VLAN-kortlægning Begrænsning af hastighed Ja Båndstyring Ja Servicekvalitet support (QoS) Ja Stråleformning Ja Sendeeffekt (CE) 20 - 23 dBm Sikkerhed Sikkerhedsalgoritmer 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK Filtrering af MAC-adresser Ja Service Set Identifier (SSID) funktioner Multiple SSIDs Antal SSID understøttet 16 Adgangskontrolliste (ACL) Ja Administrationsfunktioner Webbaseret administration Ja Syslog Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 WAN-forbindelse Ethernet (RJ-45) Strømstyring Strøm over Ethernet (PoE) Ja Strømforbrug (typisk) 9 W Strømforbrug (maks.) 25,5 W Design Placering Væg Produktfarve Hvid Knap til nulstilling Ja LED-indikatorer Drift Antenne Antenne type Intern Antennefunktioner Integreret antenne Antenner, antal 2 Niveau for antennestyrke (maks.) 3,6 dBi Præstation Kompatible operativsystemer Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Godkendelser Compliance-certifikater CE, RoHS Vægt & størrelser Bredde 86,8 mm Dybde 86,8 mm Højde 30,2 mm Emballeringsdata Pakkebredde 118 mm Pakkedybde 130 mm Pakkehøjde 47 mm Pakkevægt 210 g Emballage indhold Antal pr. pakke 2 stk Monteringssæt Ja Hurtig start guide Ja Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 10 - 90% Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Logistik data Harmoniseret systemkode (HS) 85176990 Bæredygtighed Overholdelse af bæredygtighed Ja
