Varenummer: EAP225-OUTDOOR V1
Mere information
-
11AC Wave 2 Makes Wi-Fi Go Further
Omada

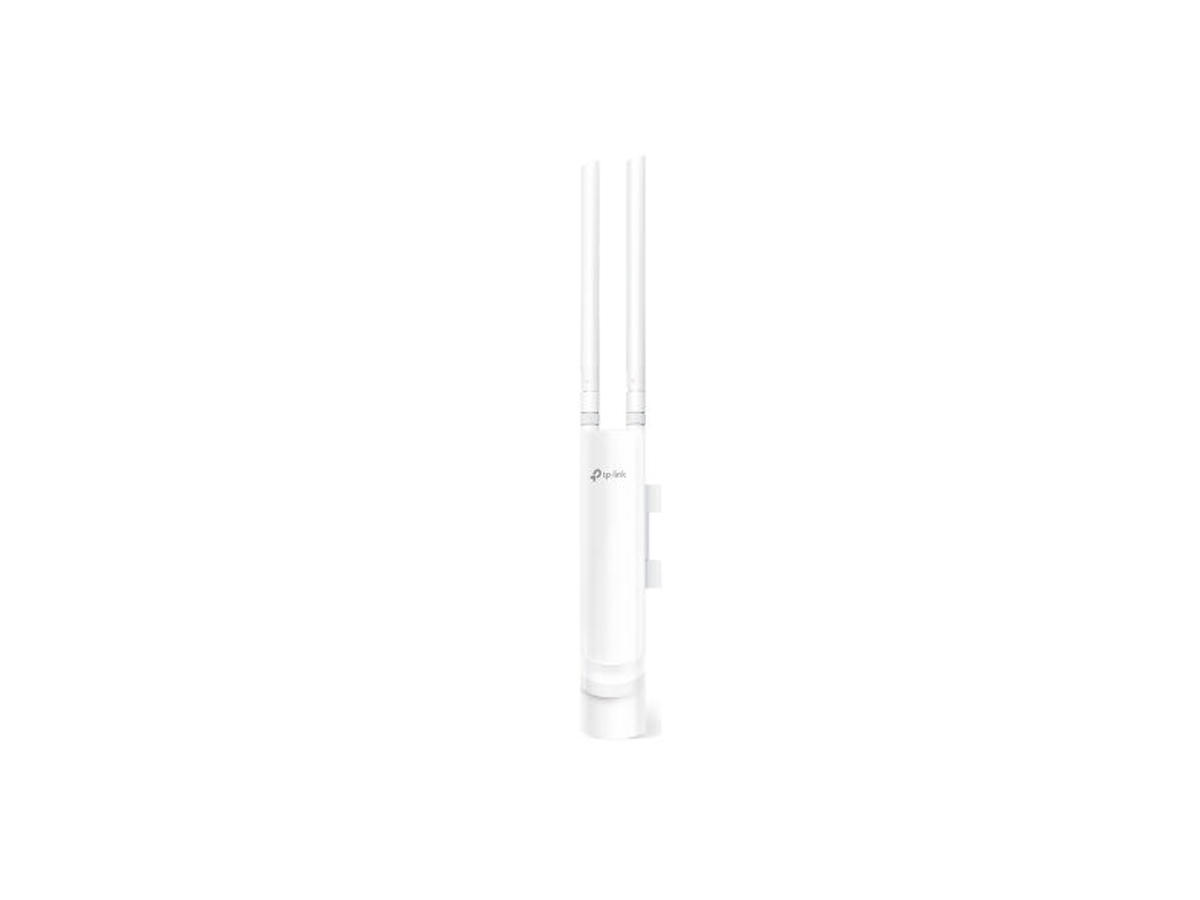

EAP225-Outdoor
Gigabit Wi-Fi Speeds with MU-MIMO Technology
EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment.
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance Even Better for Indoor Applications
EAP225-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)
Multiple PoE Options for Easy Installation
EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Flexible Deployment
EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive. -
Funktioner 2.4 GHz Ja 5 GHz Ja 6 GHz Ingen Maksimal dataoverførselshastighed 867 Mbit/s Maksimal dataoverførselshastighed (2,4 GHz) 300 Mbit/s Maksimal dataoverførselshastighed (5 GHz) 867 Mbit/s Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Frekvensbånd 2.4 - 5 GHz Netværksstandarder IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u MIMO Ja MIMO type Multi User MIMO Wi-Fi-multimedie (WMM)/(WME) Ja Begrænsning af hastighed Ja Båndstyring Ja Airtime Fairness (ATF) Ja Servicekvalitet support (QoS) Ja Sikkerhed Sikkerhedsalgoritmer WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK Antal SSID understøttet 16 Remote Authentication Dial-In User Service (RADIUS) Ja Administrationsfunktioner Webbaseret administration Ja Syslog Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Antal USB 2.0-porte 0 Strømstyring Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) -type understøttet Active PoE, Passive PoE Udgangsspænding 24 V Strømforbrug (typisk) 10,5 W Design Placering Loft, Væg Produktfarve Hvid Knap til nulstilling Ja Antenne Antenne type Ekstern Antenneretningstype Omniretningsbestemt Antennefunktioner Aftagelig antenne Antenner, antal 2 Niveau for antennestyrke (maks.) 4 dBi Godkendelser Certificering CE、FCC、RoHS Vægt & størrelser Bredde 214,9 mm Dybde 46 mm Højde 26,7 mm Emballeringsdata Pakkebredde 270 mm Pakkedybde 140 mm Pakkehøjde 100 mm Pakkevægt 640 g Emballage indhold Antal pr. pakke 1 stk AC-adapter inkluderet Ja PoE-adapter inkluderet Ja Monteringssæt Ja Hurtig start guide Ja Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 10 - 90% Driftstemperatur (T-T) -30 - 70 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Logistik data Harmoniseret systemkode (HS) 85176990
