Varenummer: EAP115-Wall V1
Mere information
-
Installation Made Easy
- Detach the faceplate of the junction box* with a screwdriver.
- Remove the faceplate of the EAP.
- Connect an in-wall Ethernet cable to the Uplink+POE port.
- Secure the access point to the wall using the nails provided.
- Press the faceplate back into position.
Perfectly Formed

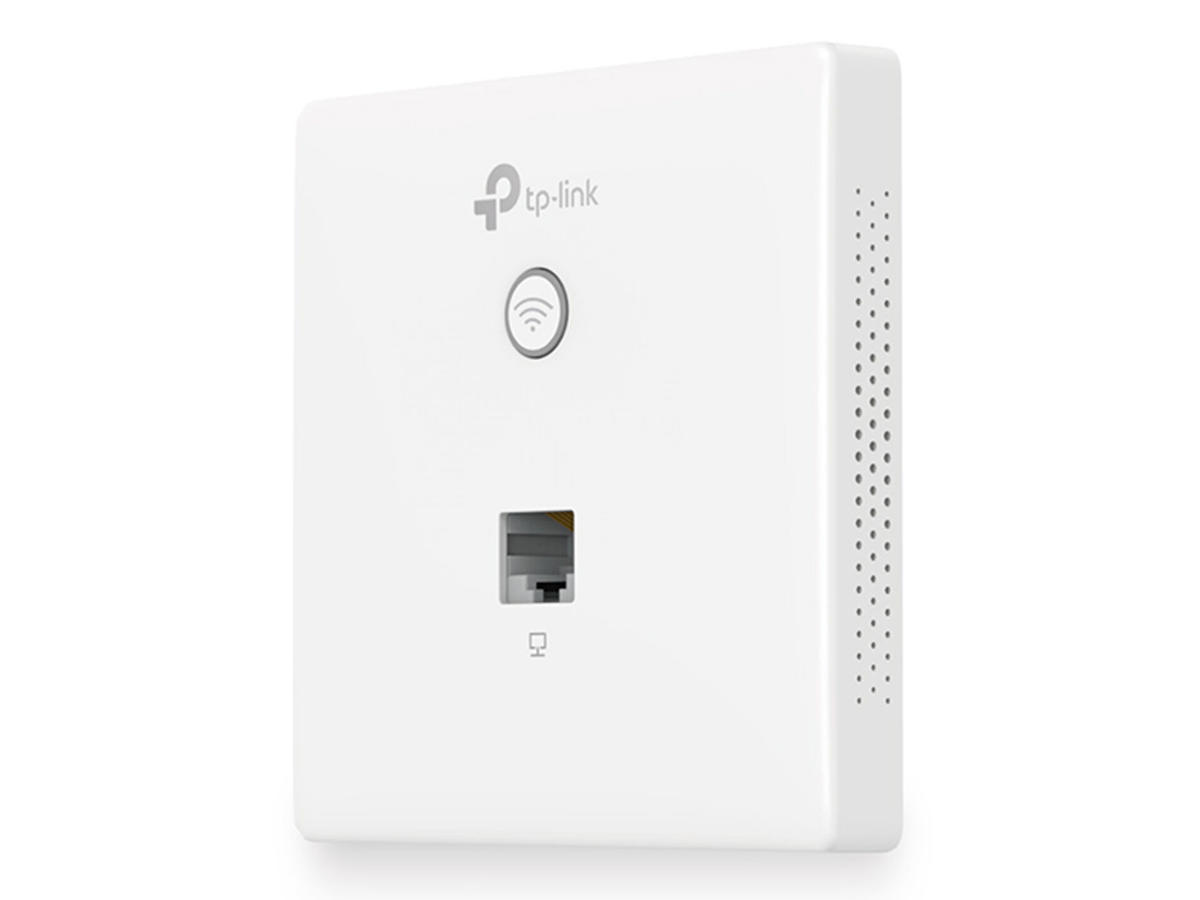

The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.
Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.
Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. -
Funktioner 2.4 GHz Ja 5 GHz Ingen 6 GHz Ingen Maksimal dataoverførselshastighed 300 Mbit/s Maksimal dataoverførselshastighed (2,4 GHz) 300 Mbit/s Ethernet LAN-datahastigheder 10,100 Mbit/s Frekvensbånd 2.4 - 2.4835 GHz Netværksstandarder IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Kabelteknologi 10/100Base-T(X) Automatisk kanalvalg Ja Wi-Fi-multimedie (WMM)/(WME) Ja VLAN understøttelse Ja Vituelle LAN funktioner Port-based VLAN, VLAN-kortlægning Begrænsning af hastighed Ja Trådløs isolation Ja Servicekvalitet support (QoS) Ja Sendeeffekt (CE) 20 dBm Transmissionseffekt 15 dBmW Sikkerhed Sikkerhedsalgoritmer 802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK Filtrering af MAC-adresser Ja Service Set Identifier (SSID) funktioner Multiple SSIDs Antal SSID understøttet 8 Adgangskontrolliste (ACL) Ja Protokoller Administrationsprotokoller SNMP, Telnet Administrationsfunktioner Webbaseret administration Ja Syslog Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 2 Antal USB 2.0-porte 0 WAN-forbindelse Ethernet (RJ-45) Strømstyring Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) -type understøttet Passive PoE Strømforbrug (typisk) 2,8 W Design Placering Væg Produktfarve Hvid Slot til kabellås Ingen Knap til nulstilling Ja LED-indikatorer Ja Intern Ingen Antenne Antenne type Intern Antenneretningstype Omniretningsbestemt Antennefunktioner Integreret antenne Antenner, antal 2 Niveau for antennestyrke (maks.) 1,8 dBi Præstation Kompatible operativsystemer Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 Godkendelser Compliance-certifikater CE, RoHS Vægt & størrelser Bredde 86,8 mm Dybde 86,8 mm Højde 30,2 mm Emballeringsdata Pakkebredde 118 mm Pakkedybde 130 mm Pakkehøjde 47 mm Pakkevægt 190 g Emballage indhold Antal pr. pakke 1 stk Monteringssæt Ja Hurtig start guide Ja Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 10 - 90% Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Logistik data Harmoniseret systemkode (HS) 85176990 Bæredygtighed Overholdelse af bæredygtighed Ja
