An Affordable, Scalable Business Wi-Fi Solution

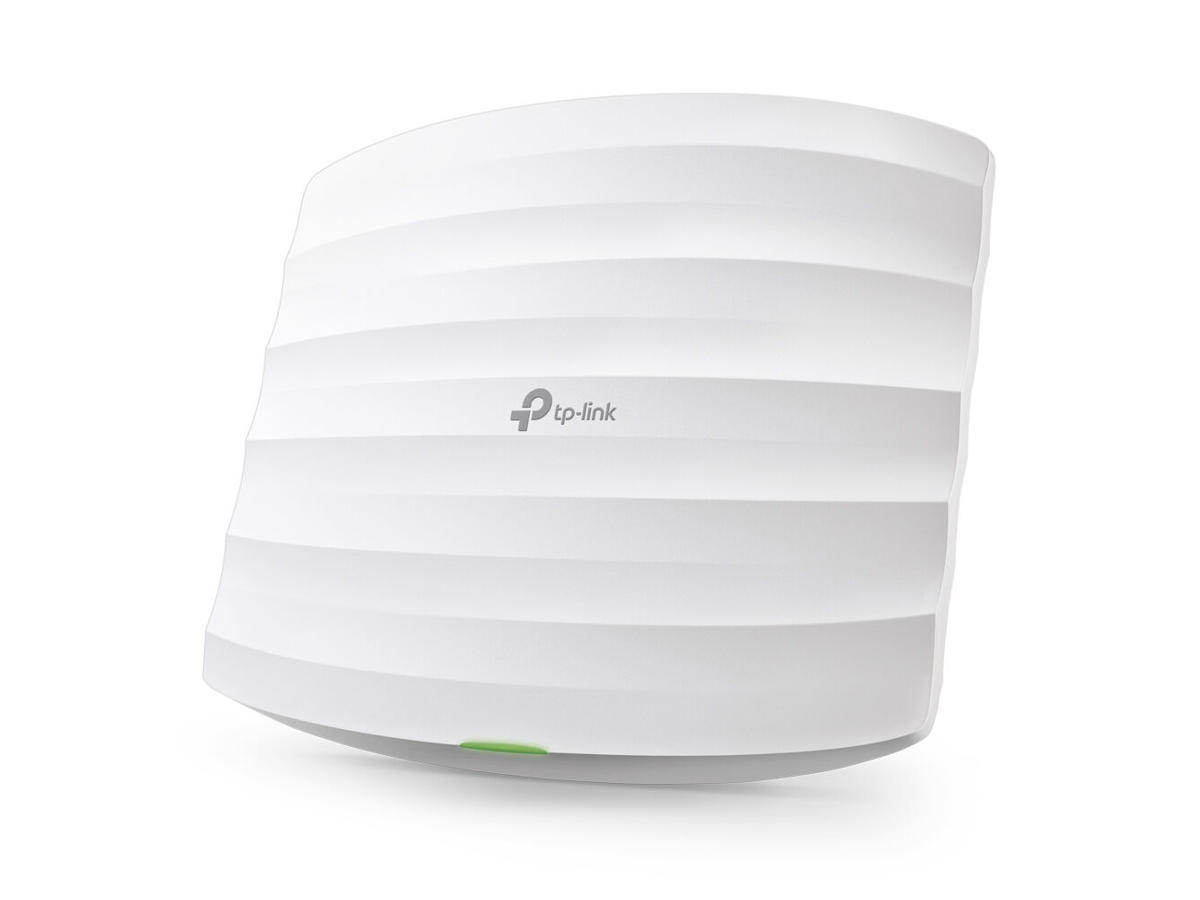

300Mbps Wireless N Ceiling Mount Access Point
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Mount Design and PoE
Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. -
Funktioner 2.4 GHz Ja 5 GHz Ingen 6 GHz Ingen Maksimal dataoverførselshastighed 300 Mbit/s Maksimal dataoverførselshastighed (2,4 GHz) 300 Mbit/s Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Frekvensbånd 2.4 - 2.4835 GHz Netværksstandarder IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Kabelteknologi 10/100Base-T(X) Automatisk kanalvalg Ja Wi-Fi-multimedie (WMM)/(WME) Ja VLAN understøttelse Ja Vituelle LAN funktioner VLAN-kortlægning Begrænsning af hastighed Ja Trådløs isolation Ja Servicekvalitet support (QoS) Ja Sendeeffekt (CE) 19 dBm Sendeeffekt (FCC) 21 dBm Modtager, følsomhed 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER Sikkerhed Sikkerhedsalgoritmer 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK Filtrering af MAC-adresser Ja Service Set Identifier (SSID) funktioner Multiple SSIDs Antal SSID understøttet 8 Systemstatusalarm Ja Adgangskontrolliste (ACL) Ja Administrationsfunktioner Webbaseret administration Ja Syslog Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Antal USB 2.0-porte 0 WAN-forbindelse Ethernet (RJ-45), Wi-Fi Strømstyring Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) -type understøttet Passive PoE Udgangsspænding 12 V Udgangsstrøm 1 A Strømforbrug (typisk) 5 W Design Placering Loft, Væg Produktfarve Hvid Slot til kabellås Ja Kabellåseslids type Kensington Tænd-/slukkontakt Ja Knap til nulstilling Ja LED-indikatorer Ja Antenne Antenne type Intern Antenneretningstype Omniretningsbestemt Antennefunktioner Integreret antenne Antenner, antal 2 Niveau for antennestyrke (maks.) 3 dBi Præstation Minimum systemkrav Microsoft Windows 10/8/7/Vista/XP Godkendelser Compliance-certifikater Federal Communications Commission (FCC), CE, RoHS Certificering CE, FCC, RoHS Vægt & størrelser Bredde 180 mm Dybde 180 mm Højde 47,5 mm Emballeringsdata Pakkebredde 246 mm Pakkedybde 268 mm Pakkehøjde 69 mm Pakkevægt 600 g Emballage indhold Antal pr. pakke 1 stk PoE-adapter inkluderet Ja Monteringssæt Ja Hurtig start guide Ja Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 10 - 90% Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Logistik data Harmoniseret systemkode (HS) 85176990 Bæredygtighed Overholdelse af bæredygtighed Ja
