Varenummer: CPE510
Mere information
-

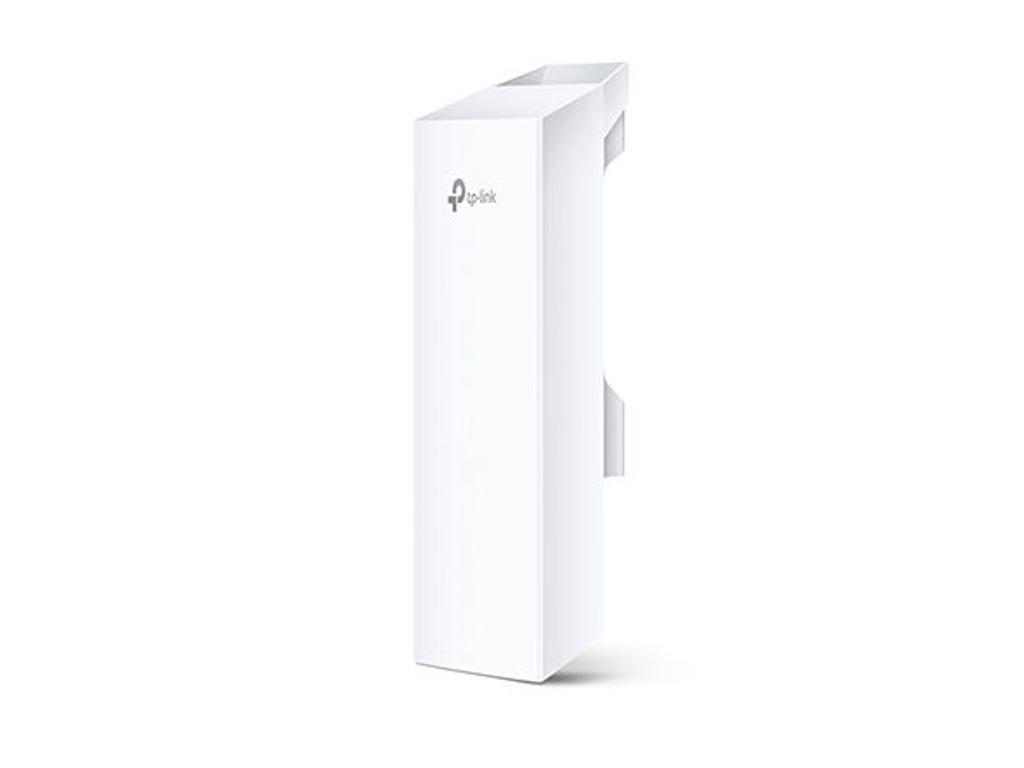

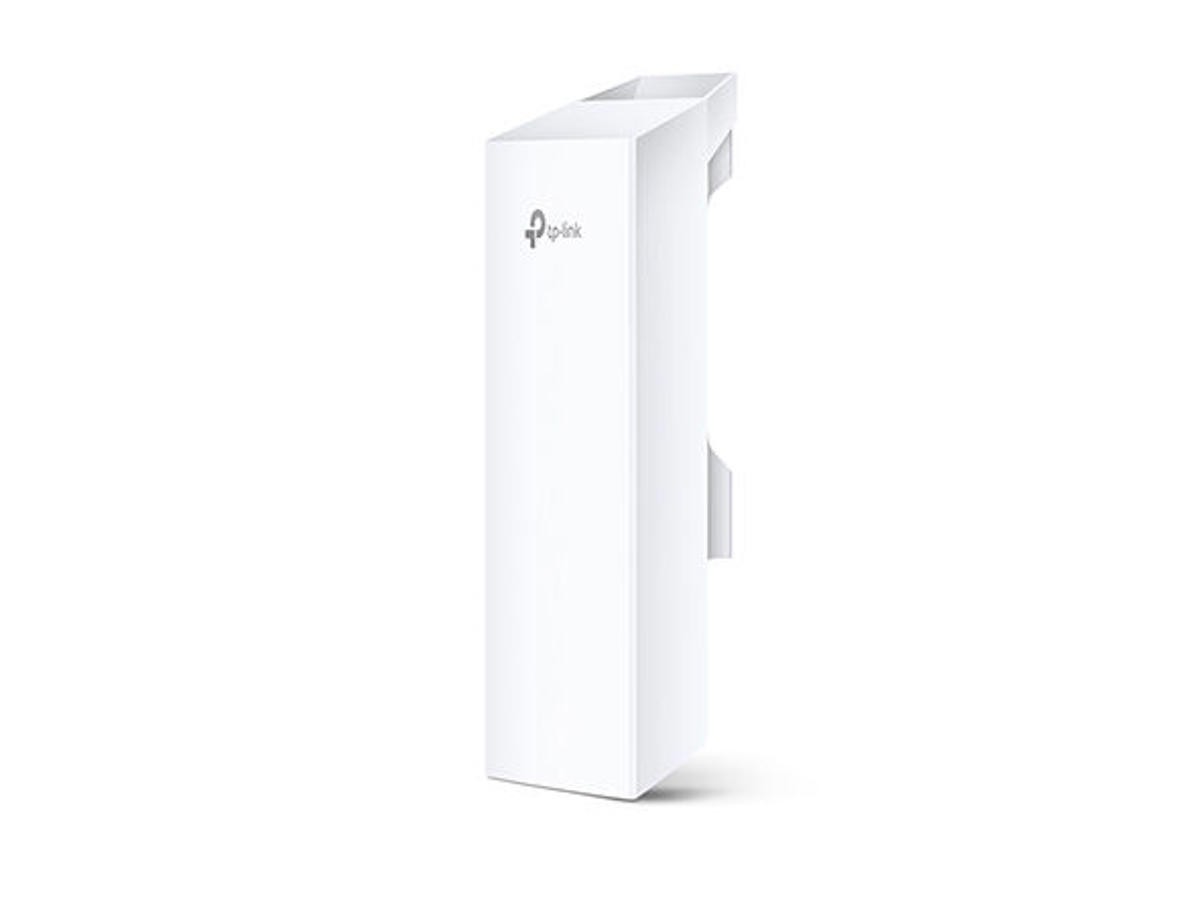

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology. -
Funktioner Maksimal dataoverførselshastighed 300 Mbit/s Wi-Fi-datahastighed (maks.) 300 Mbit/s Ethernet LAN-datahastigheder 10,100 Mbit/s Frekvensbånd 5.15 - 5.85 GHz Båndbredde 5 GHz Netværksstandarder IEEE 802.11a, IEEE 802.11n Maksimal udendørsinterval 15000 m Modtager, følsomhed 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm Sikkerhed Sikkerhedsalgoritmer 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK Filtrering af MAC-adresser Ja Protokoller Administrationsprotokoller TDMA Administrationsfunktioner Webbaseret administration Ja Administrationsplatform Pharos Control Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 WAN-forbindelse Ethernet (RJ-45) Strømstyring Strøm over Ethernet (PoE) Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Indgangsstrøm 0.8 A Strømforbrug (typisk) 13 W Design Produktfarve Hvid Knap til nulstilling Ja LED-indikatorer Ja Intern Ingen Antenne Antennefunktioner Integreret antenne Antenner, antal 1 Niveau for antennestyrke (maks.) 13 dBi Præstation Indbygget processer Ja Flashhukommelse 8 MB Intern hukommelse 64 MB Kompatible operativsystemer Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Godkendelser Certificering FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS Vægt & størrelser Bredde 224 mm Dybde 75 mm Højde 60 mm Emballage indhold Kabler inkluderet Vekselstrøm Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 10 - 90% Driftstemperatur (T-T) -30 - 70 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Logistik data Harmoniseret systemkode (HS) 85176990
