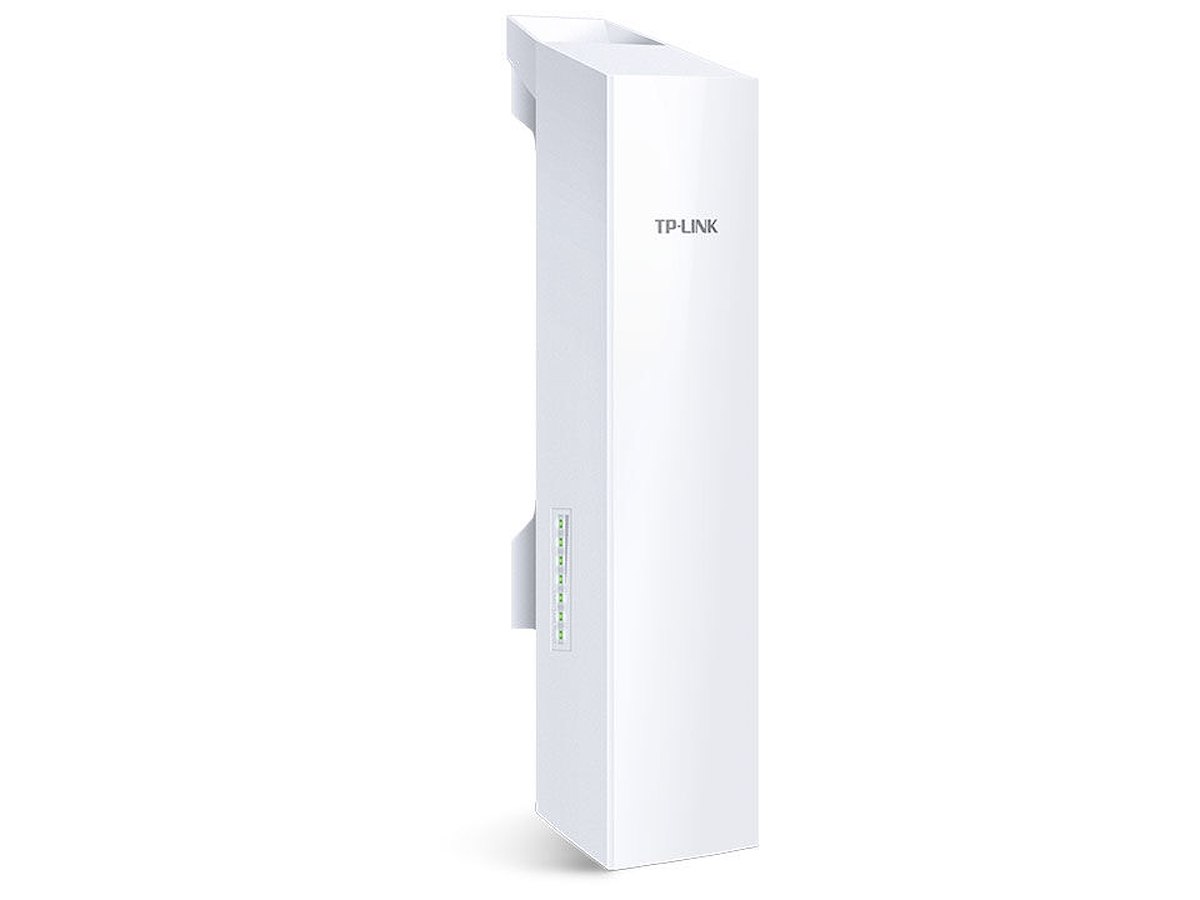

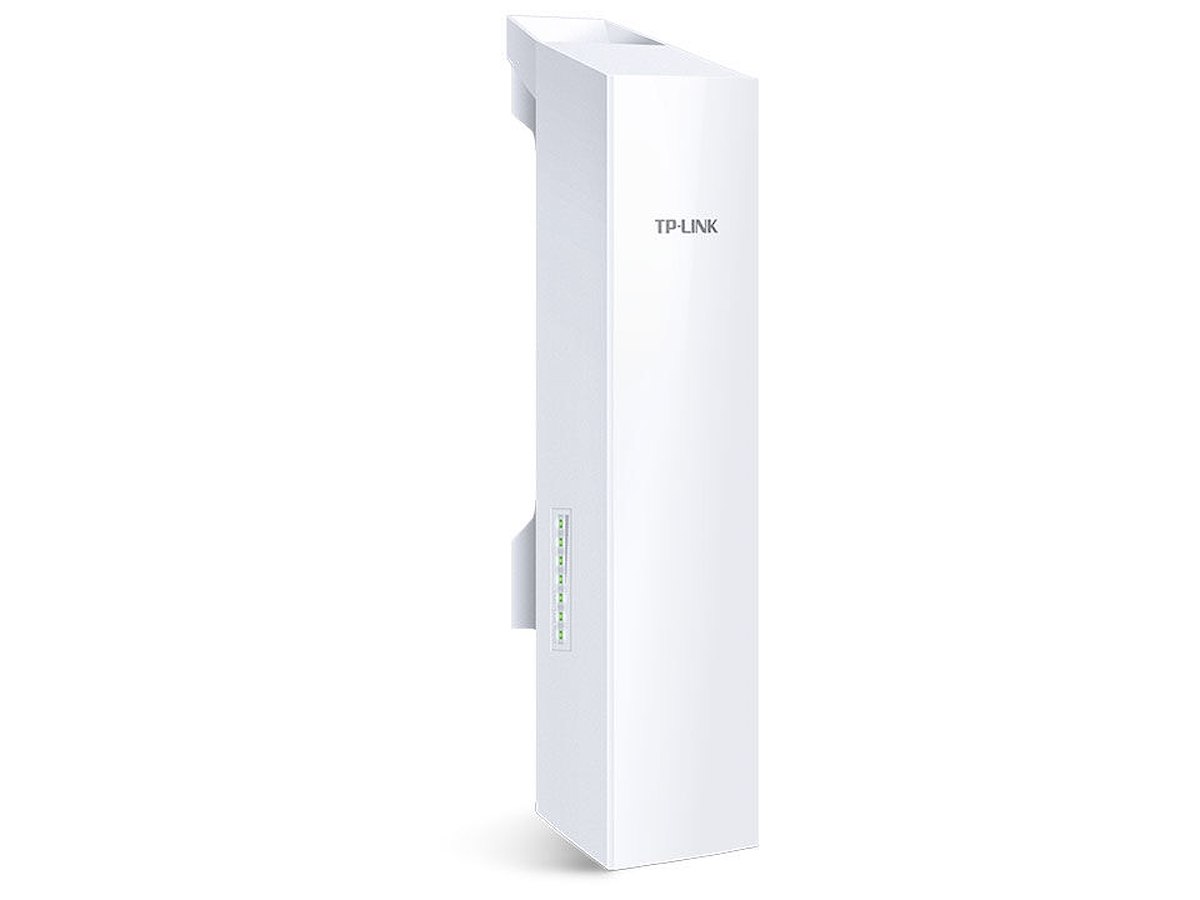

TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users. Enterprise Hardware With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉). Advanced Antenna System - Built-in High Gain Dual-Polarized Antenna - Dedicated metal reflector ensures higher gain and lower noise interference 13km+ Wireless Data Transmission Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field. TP-LINK MAXtream TDMA Technology As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology. Pharos Control – Centralized Management System CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control. PharOS User-friendly web-based management system allows professionals to do more specific configurations.
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ingen |
Maksimal dataoverførselshastighed | 300 Mbit/s |
Wi-Fi-datahastighed (maks.) | 300 Mbit/s |
Frekvensbånd | 2.4 - 2.483 GHz |
Båndbredde | 2,4 GHz |
Netværksstandarder | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Antal kanaler | 5 kanaler |
Frekvensområde | 40 Mhz |
Automatisk kanalvalg | Ja |
VLAN understøttelse | Ja |
RTS/CTS tærskel | Ja |
Sikkerhed | |
Sikkerhedsalgoritmer | 64-bit WEP, 128-bit WEP, 152-bit WEP, AES, HTTPS, SNMP, SSH, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Filtrering af MAC-adresser | Ja |
IP-adresse filtrering | Ja |
Service Set Identifier (SSID) funktioner | SSID-udsendelse til/fra |
Antal SSID understøttet | 1 |
IGMP snooping | Ja |
Automatisk trådløs forsendelsessystem (WDS) | Ja |
Protokoller | |
Universal Plug and Play (UPnP) | Ja |
DHCP-klient | Ja |
Administrationsprotokoller | TDMA |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Administrationsplatform | Pharos Control |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 1 |
Antal Intern RJ-45 porte | 1 |
DC-in-stik | Ja |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Indgangsstrøm | 0.8 A |
Udgangsspænding | 24 V |
Udgangsstrøm | 1 A |
Strømforbrug (maks.) | 10,8 W |
Design | |
Produktfarve | Hvid |
Kode for international beskyttelse (IP) | IPX5 |
Knap til nulstilling | Ja |
LED-indikatorer | Strøm |
Certificering | - CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5 |
Intern | Ingen |
Antenne | |
Antenne type | Intern |
Antennefunktioner | Integreret antenne |
Antenner, antal | 2 |
Niveau for antennestyrke (maks.) | 12 dBi |
Præstation | |
Indbygget processer | Ja |
Flashhukommelse | 8 MB |
Intern hukommelse | 64 MB |
Vægt & størrelser | |
Bredde | 110 mm |
Dybde | 57 mm |
Højde | 33,5 mm |
Emballage indhold | |
AC-adapter inkluderet | Ja |
Monteringssæt | Ja |
Hurtig start guide | Ja |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Driftstemperatur (T-T) | -30 - 70 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
