Varenummer: EAP650GP-DESKTOP
Mere information
-
Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.
One Fiber, Multiple Services

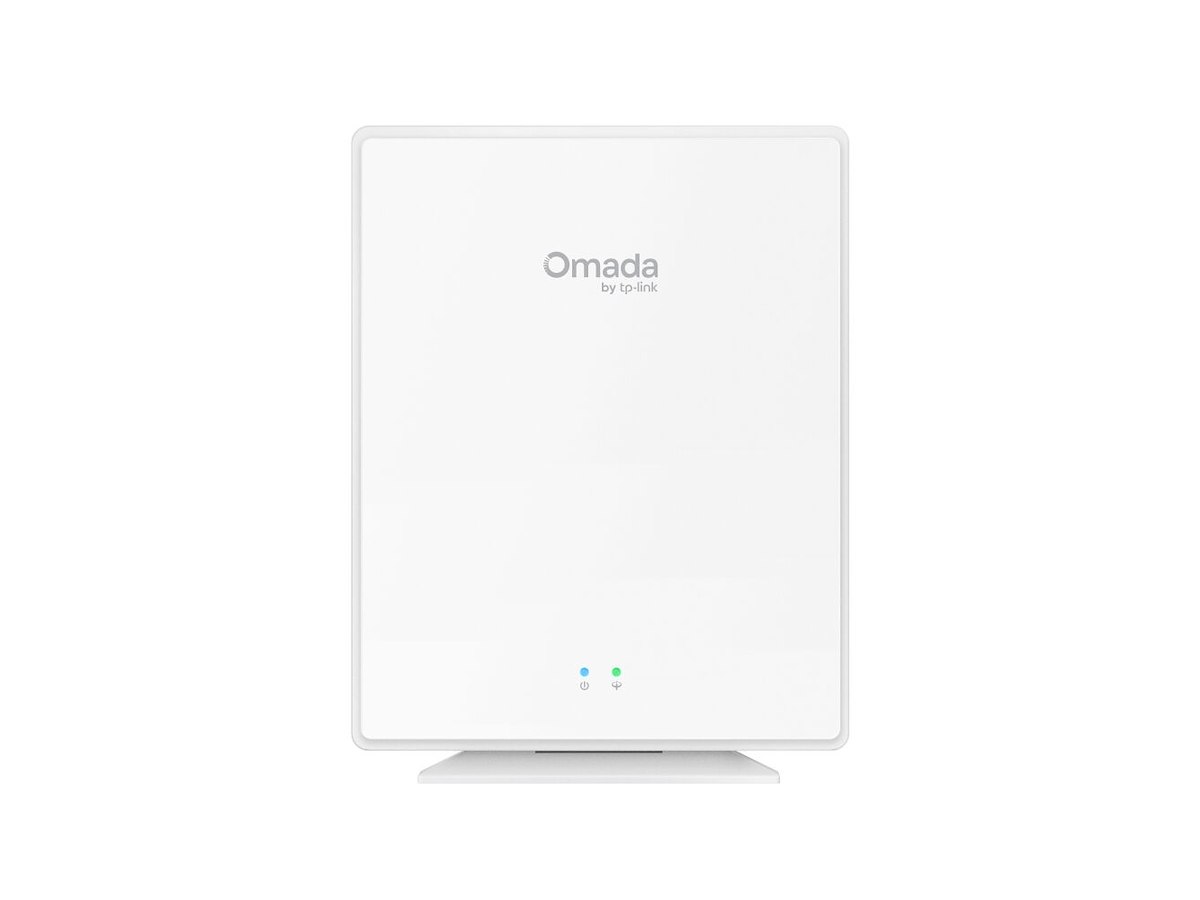

Connect a fiber optic cable to the EAP650GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.
△The two PoE ports support up to 22.4 W total PoE out. If the total PoE power exceeds the upper limit, the lower-priority ports will shut down automatically. A port also automatically powers off if its output exceeds 15.4 W. Powered-off ports will attempt to resume power supply after 10 seconds. By default, ETH0 has a higher port priority than ETH1.
Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 3.0 Gbps.* Omada Mesh and 802.11k/v/r roaming ensure a consistently smooth and reliable connection. -
Funktioner 2.4 GHz Ja 5 GHz Ja 6 GHz Ingen Maksimal dataoverførselshastighed 3000 Mbit/s Maksimal dataoverførselshastighed (2,4 GHz) 574 Mbit/s Maksimal dataoverførselshastighed (5 GHz) 2402 Mbit/s Frekvensbånd 2.4 - 5 GHz Netværksstandarder IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax Automatisk kanalvalg Ja Automatisk kanalscanning Ja MIMO Ja MIMO type Multi User MIMO Vituelle LAN funktioner SSID-based VLAN assignment Begrænsning af hastighed Ja Båndstyring Ja Airtime Fairness (ATF) Ja Sendeeffekt (CE) <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3) Sendeeffekt (FCC) <26 dBm (2.4 GHz); <27 dBm (5 GHz) Sikkerhed Sikkerhedsalgoritmer HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3 Antal SSID understøttet 16 Administrationsfunktioner Webbaseret administration Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 4 Antal USB 2.0-porte 0 DC-in-stik Ja Strømstyring Strøm over Ethernet (PoE) Ja Design Placering Skrivebord Produktfarve Hvid Knap til nulstilling Ja LED-indikatorer Ja Antenne Antenne type Intern Præstation Kompatible operativsystemer Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Godkendelser Certificering CE, FCC, RoHS Vægt & størrelser Bredde 175 mm Dybde 140 mm Højde 33 mm Vægt 511 g Emballage indhold Antal pr. pakke 5 stk Monteringssæt Ja Hurtig start guide Ja Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 0 - 40% Driftstemperatur (T-T) 10 - 90 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
