Easily Upgrade to Business WiFi 6 Network

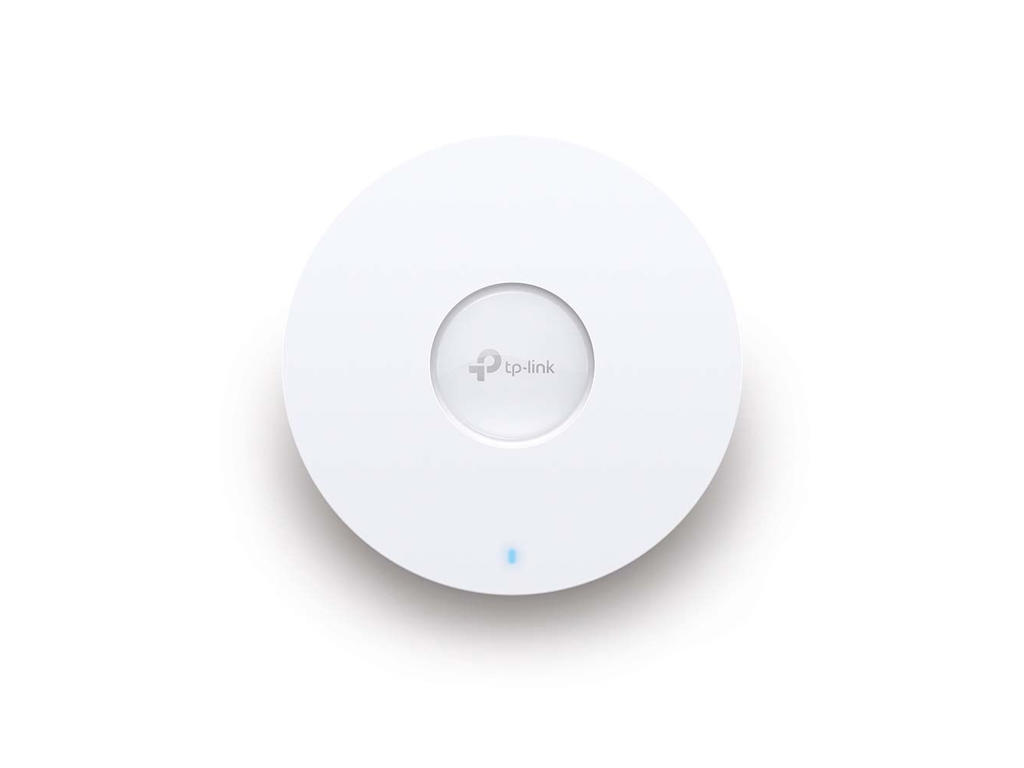

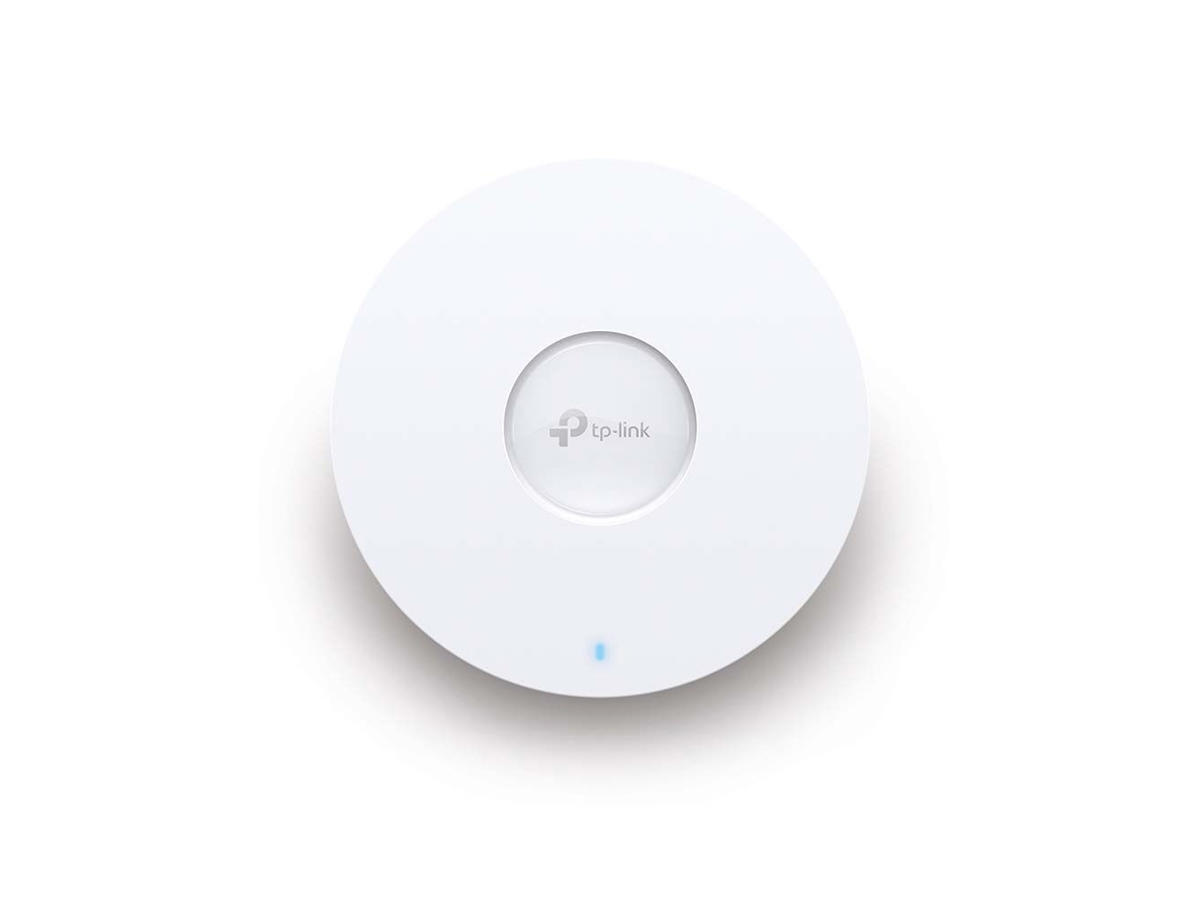

AX1800 Ceiling Mount WiFi 6 Access Point
Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café. -
Funktioner 2.4 GHz Ja 5 GHz Ja 6 GHz Ingen Maksimal dataoverførselshastighed 1800 Mbit/s Maksimal dataoverførselshastighed (2,4 GHz) 574 Mbit/s Maksimal dataoverførselshastighed (5 GHz) 1201 Mbit/s Frekvensbånd 2.4 - 5 GHz Netværksstandarder IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Automatisk kanalvalg Ja Automatisk kanalscanning Ja MIMO Ja MIMO type Multi User MIMO Spread-spectrum-metode OFDMA Vituelle LAN funktioner SSID-based VLAN assignment Begrænsning af hastighed Ja Adaptiv båndbredde administration Ja Båndstyring Ja Airtime Fairness (ATF) Ja Sendeeffekt (CE) <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3) Sendeeffekt (FCC) <25 dBm (2.4 GHz); <25 dBm (5 GHz) Sikkerhed Sikkerhedsalgoritmer HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3 Antal SSID understøttet 16 Administrationsfunktioner Webbaseret administration Ja Administrationsplatform Omada Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Antal USB 2.0-porte 0 DC-in-stik Ja Strømstyring Strøm over Ethernet (PoE) Ja Design Placering Loft, Væg Produktfarve Hvid Knap til nulstilling Ja LED-indikatorer Ja Antenne Antenne type Intern Antenneretningstype Omniretningsbestemt Antenner, antal 4 Niveau for antennestyrke (maks.) 5 dBi Præstation Kompatible operativsystemer Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Godkendelser Certificering CE, FCC, RoHS Vægt & størrelser Bredde 160 mm Dybde 160 mm Højde 33,6 mm Emballage indhold Antal pr. pakke 5 stk Monteringssæt Ja Hurtig start guide Ja Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 0 - 40% Driftstemperatur (T-T) 10 - 90 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
