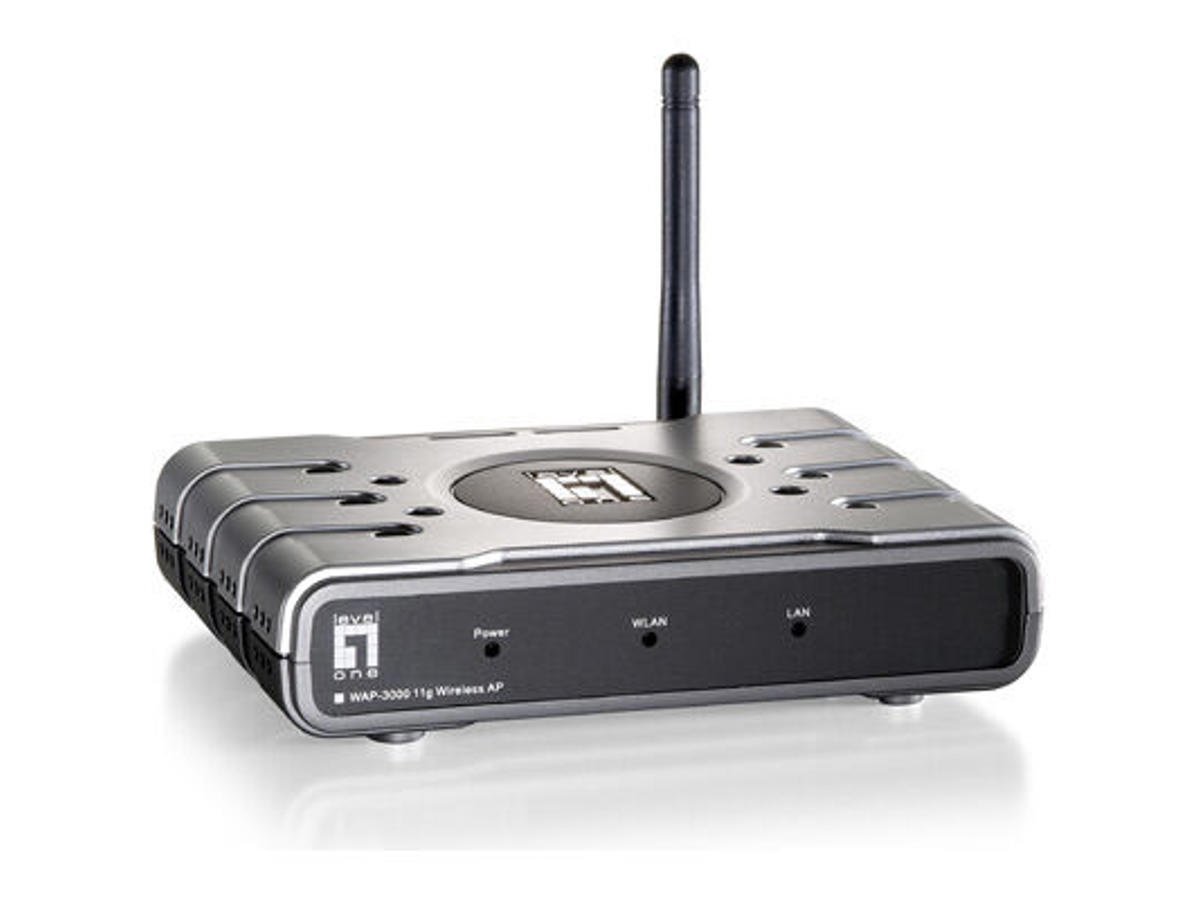

The LevelOne WAP-3000 11g Wireless Access Point acts as a bridge between wired Ethernet and Wireless 11b/g networks for wireless clients to access available wired and wireless networks.
Multiple Operation Modes
The WAP-3000 supports AP, AP Client, WDS bridging and Repeater wireless operation modes for flexible deployment and use within a standard Local Area Network.
For standard operations, the WAP-3000 connects to a LAN, broadband ADSL router or network switch and provides instant network access to connected wireless clients.
With WDS+AP mode the WAP-3000 is able to act as a bridge between two or more networks, combining them into a single network to provide wireless users with access to both networks.
In Repeater mode, the WAP-3000 extends the wireless area network to different locations.
Robust Wireless Security
The WAP-3000 provides 64/128-bit WEP encryption as well as WPA, WPA2 secured connectivity for securing the Wireless Area Network and to prevent unauthorized access.
Extended Wireless Coverage
The WAP-3000 Wireless Access Point is compliant with the IEEE 802.11b (11Mbps) and IEEE 802.11g (54Mbps) standards and features a high-quality radio chip that is able to provide directional area coverage for up to 50 meters indoors and 100 meters outdoors.
Plug-and-Play Expansion of Home/Office Network
The LevelOne WAP-3000 Wireless AP is an easy to install, plug-and-play, access point with an easy to use Web-based user interface. The WAP-3000 requires little set-up and configuration and features an LED display for quick monitoring of network errors and activity.
| Funktioner | |
| 2.4 GHz | Ja |
| Maksimal dataoverførselshastighed | 54 Mbit/s |
| Frekvensbånd | 2.4 - 2.4835 GHz |
| Antal kanaler | 13 kanaler |
| Modulation | BPSK, QPSK |
| Modtager, følsomhed | 802.11g: 10% PER, -68 dBm @ 54Mbps 802.11b: 8% PER, -81 dBm @ 11Mbps |
| Sikkerhed | |
| Sikkerhedsalgoritmer | SSID, WPA-PSK, WPA2, WPA2-PSK |
| Filtrering af MAC-adresser | Ja |
| Protokoller | |
| Medie adgang protokol | CSMA/CA (ACK) |
| Administrationsfunktioner | |
| Webbaseret administration | Ja |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 1 |
| DC-in-stik | Ja |
| Strømstyring | |
| Effektkrav | DC 7.5V, 1A |
| Design | |
| LED-indikatorer | LAN, Strøm, WLAN |
| Antenne | |
| Niveau for antennestyrke (maks.) | 2 dBi |
| Præstation | |
| Kompatible operativsystemer | Windows 2000/XP/Vista |
| Godkendelser | |
| Certificering | CE, FCC |
| Vægt & størrelser | |
| Dimensioner (BxDxH) | 113 x 146 x 32 mm |
| Andre funktioner | |
| Understøttede dataoverførselshastigheder | 54/11 Mbps |
| Indendørs rækkevide | 50 m |
| Udendørs rækkevide | 100 m |
| Overholdelse af branchestandarder | IEEE 802.11g, IEEE 802.11b |
| Trådløs teknologi | Wi-Fi |
| Netværksfunktioner | Ethernet, Fast Ethernet |
| Relativ luftfugtighed, der ikke fungerer (ikke-kondenserende) | 10 - 95% |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -25 - 70 °C |
