Varenummer: WAB-8021
Mere information
-

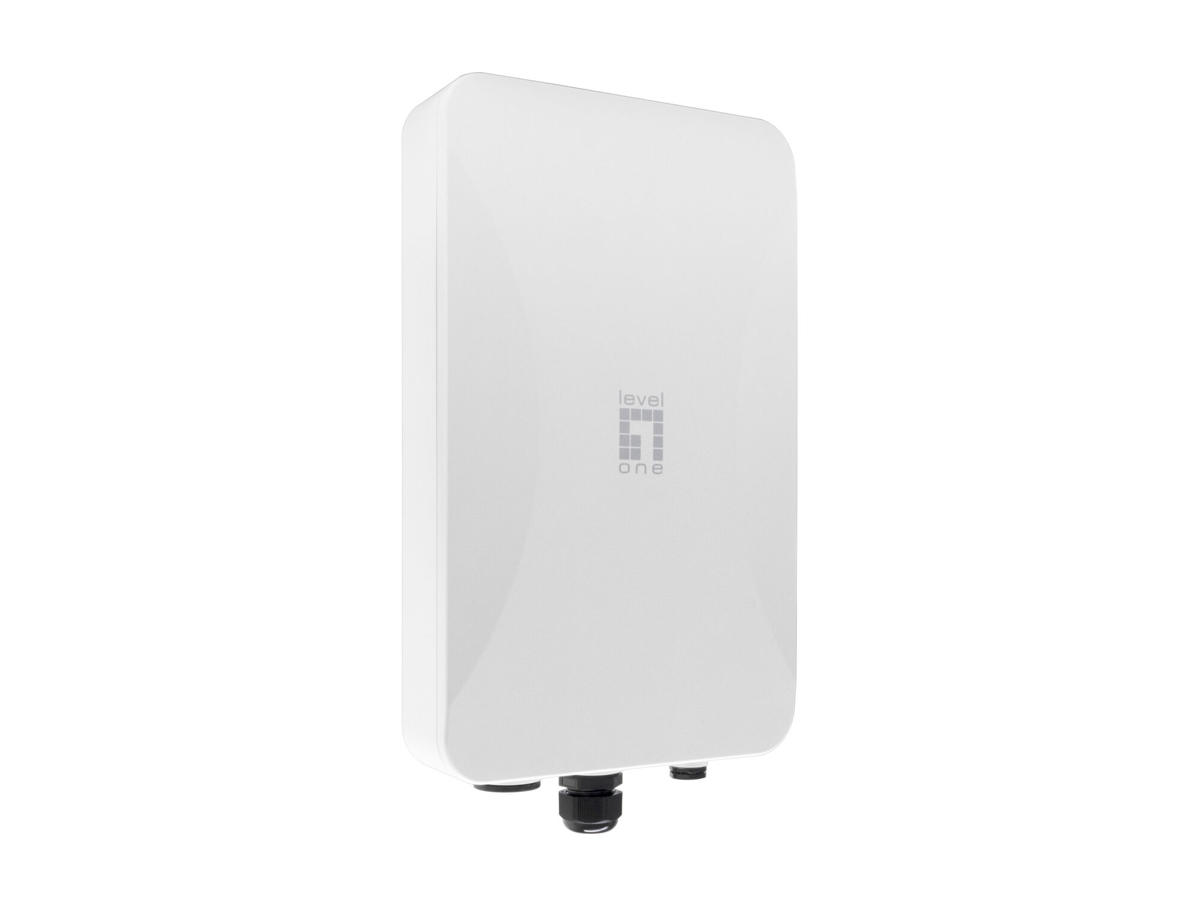

The LevelOne WAB-8021 is a standalone, AX3000 Omni-directional outdoor dual-band Wi-Fi 6 PoE wireless access point that features Gigabit Ethernet ports and advanced 802.11ax Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. capable of a combined speed of up to 2976 Mbps(574Mbps in 2.4GHz/2401Mbps in 5GHz) and Omni-directional outdoor transmission distance of up to 100m.
The device runs on 2.4 and 5 GHz frequency, It also offers support for the new WPA3 encryption. Of course, the WAB-8021 is also equipped with PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP67 means the WAB-8021 is designed for outdoor deployments, and can withstand rain, humidity, dust and snow. A fast, versatile and secure access point for a wide variety of outdoor network requirements. -
Funktioner 2.4 GHz Ja 5 GHz Ja 6 GHz Ingen Maksimal dataoverførselshastighed 3000 Mbit/s Maksimal dataoverførselshastighed (2,4 GHz) 574 Mbit/s Maksimal dataoverførselshastighed (5 GHz) 2401 Mbit/s Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u Kabelteknologi 10/100/1000Base-T(X) Antal kanaler 165 kanaler MIMO Ja MIMO type Multi User MIMO Spread-spectrum-metode OFDMA Maksimal udendørsinterval 100 m Modtager, følsomhed 2.4 GHz Radio : l 802.11b / 1Mbps / RX Sensitivity : -90 (dBm) l 802.11b / 11Mbps / RX Sensitivity : -85 (dBm) l 802.11g / 6Mbps / RX Sensitivity : -90 (dBm) l 802.11g / 54Mbps / RX Sensitivity : -72 (dBm) l 802.11n HT20 / MCS0 / RX Sensitivity : -87 (dBm) l 802.11n HT20 / MCS7 / RX Sensitivity : -70 (dBm) l 802.11n HT40 / MCS0 / RX Sensitivity : -85 (dBm) l 802.11n HT40 / MCS7 / RX Sensitivity : -68 (dBm) l 802.11ax HE20 / MCS0 / RX Sensitivity : -83 (dBm) l 802.11ax HE20 / MCS11 / RX Sensitivity : -60 (dBm) l 802.11ax HE40 / MCS0 / RX Sensitivity : -83 (dBm) l 802.11ax HE40 / MCS11 / RX Sensitivity : -56 (dBm) 5 GHz Radio : l 802.11a HT20 / 6Mbps/ RX Sensitivity : -92 (dBm) l 802.11a HT20 / 54Mbps/ RX Sensitivity : -72 (dBm) l 802.11n HT20 / MCS0 / RX Sensitivity : -90 (dBm) l 802.11n HT20 / MCS7 / RX Sensitivity : -70 (dBm) l 802.11n HT40 / MCS0 / RX Sensitivity : -88 (dBm) l 802.11n HT40 / MCS7 / RX Sensitivity : -68 (dBm) l 802.11ac VHT20 / MCS0 / RX Sensitivity : -88 (dBm) l 802.11ac VHT20 / MCS8 / RX Sensitivity : -70 (dBm) l 802.11ac VHT40 / MCS0 / RX Sensitivity : -88 (dBm) l 802.11ac VHT40 / MCS7 / RX Sensitivity : -68 (dBm) l 802.11ac VHT80 / MCS0 / RX Sensitivity : -85 (dBm) l 802.11ac VHT80 / MCS9 / RX Sensitivity : -58 (dBm) l 802.11ax HE20 / MCS0 / RX Sensitivity : -88 (dBm) l 802.11ax HE20 / MCS11 / RX Sensitivity : -62 (dBm) l 802.11ax HE40 / MCS0 / RX Sensitivity : -86 (dBm) l 802.11ax HE40 / MCS11 / RX Sensitivity : -58 (dBm) l 802.11ax HE80 / MCS0 / RX Sensitivity : -84 (dBm) l 802.11ax HE80 / MCS11 / RX Sensitivity : -55 (dBm) l 802.11ax HE160 / MCS0 / RX Sensitivity : -82 (dBm) l 802.11ax HE160 / MCS11 / RX Sensitivity : -51 (dBm) Sikkerhed Sikkerhedsalgoritmer WPA2, WPA3 Antal SSID understøttet 8 Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Antal USB 2.0-porte 0 WAN-forbindelse Wi-Fi Strømstyring Strøm over Ethernet (PoE) Ja Strømforbrug (typisk) 16 W Design Placering Pæl Produktfarve Hvid Kode for international beskyttelse (IP) IP67 LED-indikatorer Strøm, Status, System Antenne Antenne type Intern Antenneretningstype Omniretningsbestemt Præstation Flashhukommelse 128 MB Intern hukommelse 512 MB Godkendelser Compliance-certifikater CE, RoHS Vægt & størrelser Bredde 230 mm Dybde 107 mm Højde 38 mm Vægt 1,3 kg Emballeringsdata Pakkebredde 380 mm Pakkedybde 230 mm Pakkehøjde 107 mm Pakkevægt 1,73 kg Pakketype Kasse Emballage indhold Antal pr. pakke 1 stk Monteringssæt Ja Hurtig start guide Ja Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 10 - 90% Driftstemperatur (T-T) -20 - 50 °C Opbevaringstemperatur (T-T) -20 - 80 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Logistik data Oprindelsesland Kina Andre funktioner Trådløs standard IEEE 802.11a/b/g/n/ac/ax
