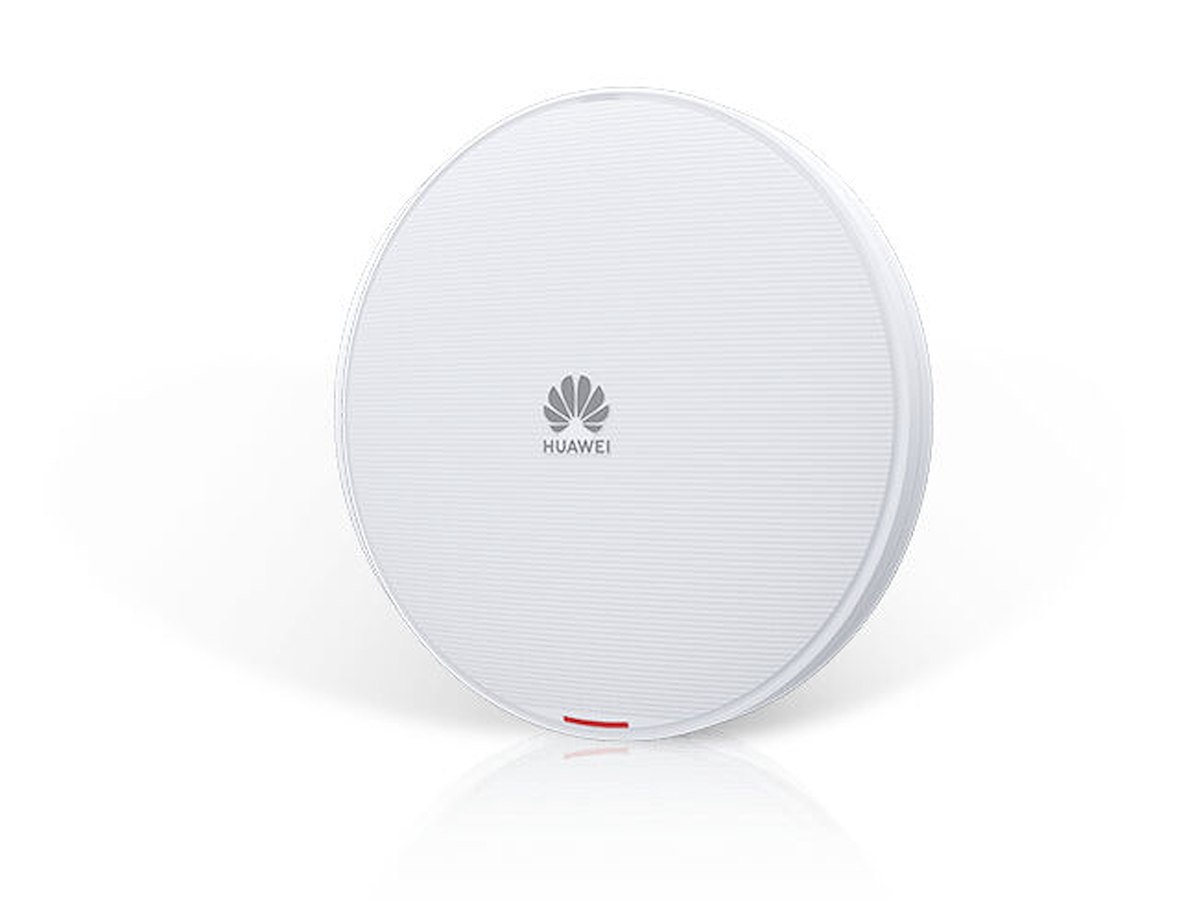

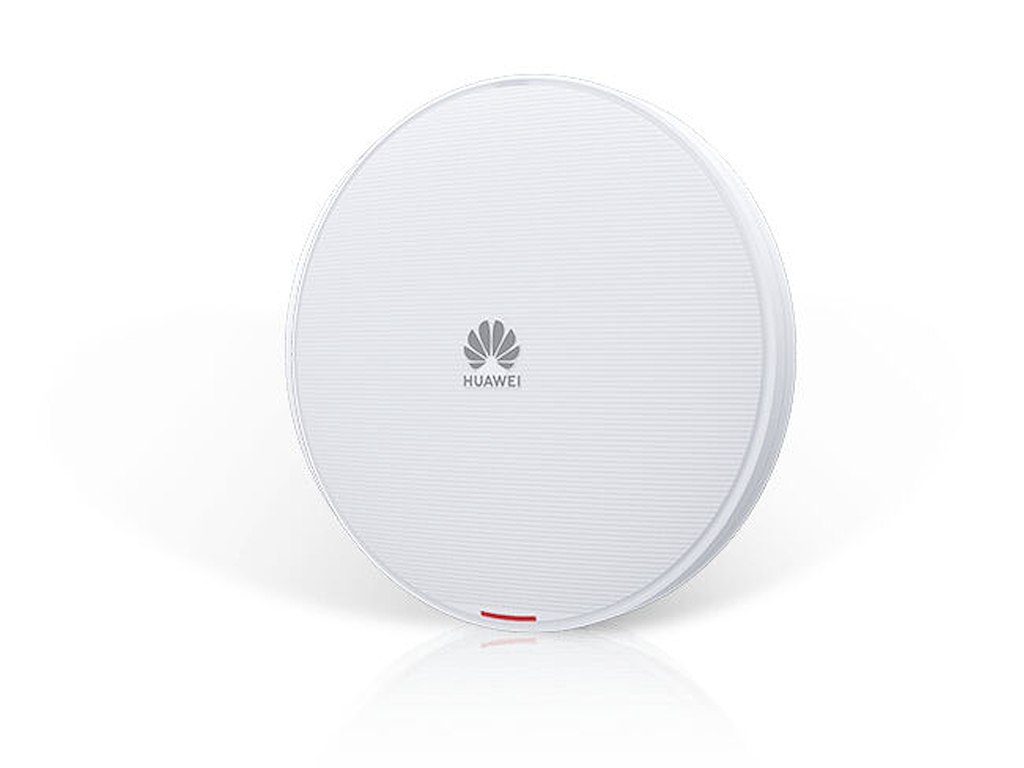

A next generation indoor Wi-Fi 6 (802.11ax) Access Point (AP), AirEngine 5761-11 features built-in Smart Antennas where the Wi-Fi signal follows users, delivering always-on coverage. Supporting 2x2 Multiple-Input Multiple-Output (MIMO), this AP can simultaneously deliver services on both the 2.4 GHz and 5 GHz frequency bands, with a rate of up to 1.775 Gbit/s.
AirEngine 5761-11 excels in scenarios requiring high bandwidth and a high-quality network experience, from small and midsize enterprise offices and hospital to cafes.
Wi-Fi 6 Technology
Featuring Multi-User Multiple-Input Multiple-Output (MU-MIMO) and Orthogonal Frequency Division Multiple Access (OFDMA) for efficient data transmission, plus 1024 Quadrature Amplitude Modulation (QAM), four spatial streams, and an air interface rate of up to 1.775 Gbit/s.
Smart Antennas
Dual-band co-planar Smart Antennas suppress interference automatically, double signal strength, and provide 20% wider coverage, realizing high-quality wireless coverage with zero blind spots.
Cloud Management
Huawei’s cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs. -
Funktioner 2.4 GHz Ja 5 GHz Ja Maksimal dataoverførselshastighed 1775 Mbit/s Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Netværksstandarder IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Antal brugere 1024 bruger(e) Bluetooth Ja Bluetooth-version 5.0 MIMO Ja MIMO type Multi User MIMO Wi-Fi-multimedie (WMM)/(WME) Ja VLAN understøttelse Ja Maximal-Ratio Combining (MRC) Ja Sikkerhed Sikkerhedsalgoritmer SSH-2, WPA, WPA2, WPA2-PSK, WPA3 DHCP snooping Ja Protokoller DHCP-klient Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Antal USB 2.0-porte 1 DC-in-stik Ja Strømstyring Strøm over Ethernet (PoE) Ja Udgangsspænding 12 V Strømforbrug (maks.) 15,3 W Design Produktfarve Hvid Antenne Antenne type Intern Vægt & størrelser Bredde 220 mm Dybde 50 mm Højde 220 mm Vægt 1,05 kg Driftsbetingelser Relativ luftfugtighed ved drift (H-H) 5 - 95% Driftstemperatur (T-T) -10 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Driftshøjde -60 - 5000 m
