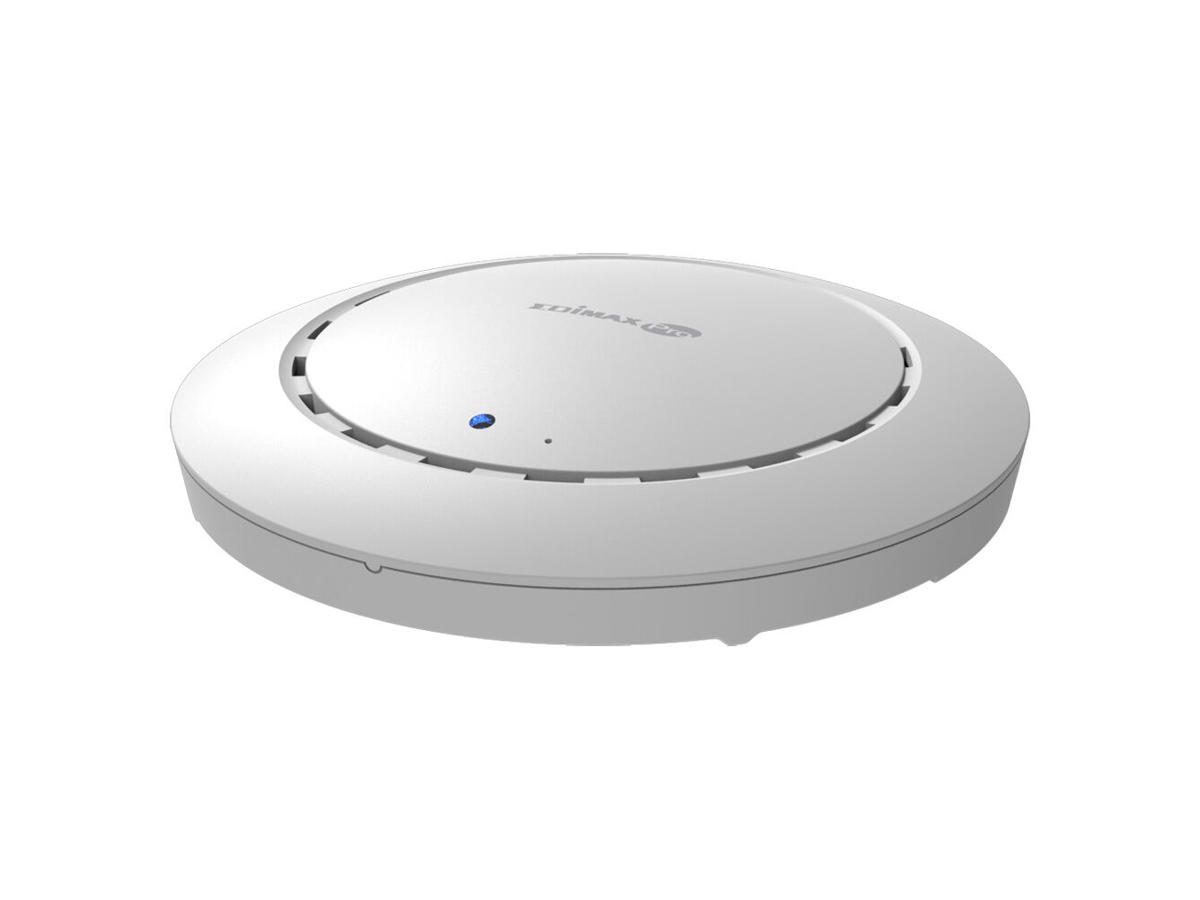

Powerful Mainstream Solution For Modern Businesses
Superior High-Speed Wi-Fi
Supports IEEE 802.11ac Wave 2 concurrent dual-band with 1300Mbps (2.4GHz at 400Mbps and 5GHz at 867Mbps) wireless speed for high bandwidth data or video transmission.
Efficiently Serves Multiple Devices
Connects more devices simultaneously with two MU-MIMO spatial streams and enhances Wi-Fi efficiency.
Optimal Wi-Fi Performance
Featuring Beamforming, AirTime Fairness, Band Steering improved Wi-Fi range, reliability and performance.
Ideal Mainstream Choice for SMBs
Supports up to two hundreds users simultaneously, CAP1300 is suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail and others.
Free, Easy and Intuitive Central Network Management Suite (NMS)
FREE Built-in Edimax Pro NMS (Network Management Suite) is a web-based wireless network management system. Company MIS persons can plan and manage Edimax Pro access points’ powerful functionality according to their office space using an easy, remote web-based interface. (Click here to learn more about NMS.)
AP Array
Edimax Pro Network Management Suite (NMS) supports AP array architecture, which enables the CAP1300 central management of a group of Edimax Pro access points. NMS can be installed on one access point and support up to 16 Edimax Pro access points with no additional wireless controller required, reducing costs and facilitating efficient remote AP management.
Easy Installation Kit
Ceiling-mount & T-rail mount design with easy installation kit.
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ja |
Maksimal dataoverførselshastighed | 1267 Mbit/s |
Ethernet LAN-datahastigheder | 1000 Mbit/s |
Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3az |
Antal brugere | 100 bruger(e) |
MIMO | Ja |
MIMO type | Multi User MIMO |
Wi-Fi-multimedie (WMM)/(WME) | Ja |
Hurtig roaming | Ja |
VLAN understøttelse | Ja |
STA isolation (same VLAN) | Ja |
Servicekvalitet support (QoS) | Ja |
Modtager, følsomhed | -93 dBm |
Sikkerhed | |
Sikkerhedsalgoritmer | PEAP, SNMP, SNMPv3, WEP, WPA, WPA2 |
Filtrering af MAC-adresser | Ja |
Service Set Identifier (SSID) funktioner | Hidden SSID |
Antal SSID understøttet | 32 |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
DC-in-stik | Ja |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Udgangsspænding | 12 V |
Udgangsstrøm | 1 A |
Strømforsyning | 11 W |
Design | |
Placering | Loft |
Produktfarve | Hvid |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
Knap til nulstilling | Ja |
LED-indikatorer | Ja |
Certificering | CE, FCC |
Intern | Ingen |
Antenne | |
Antenner, antal | 4 |
Niveau for antennestyrke (maks.) | 5 dBi |
Vægt & størrelser | |
Bredde | 176 mm |
Dybde | 176 mm |
Højde | 32 mm |
Vægt | 342 g |
Emballage indhold | |
AC-adapter inkluderet | Ja |
Kabler inkluderet | LAN (RJ-45) |
Monteringssæt | Ja |
Hurtig start guide | Ja |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 0 - 90% |
Driftstemperatur (T-T) | 0 - 40 °C |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
