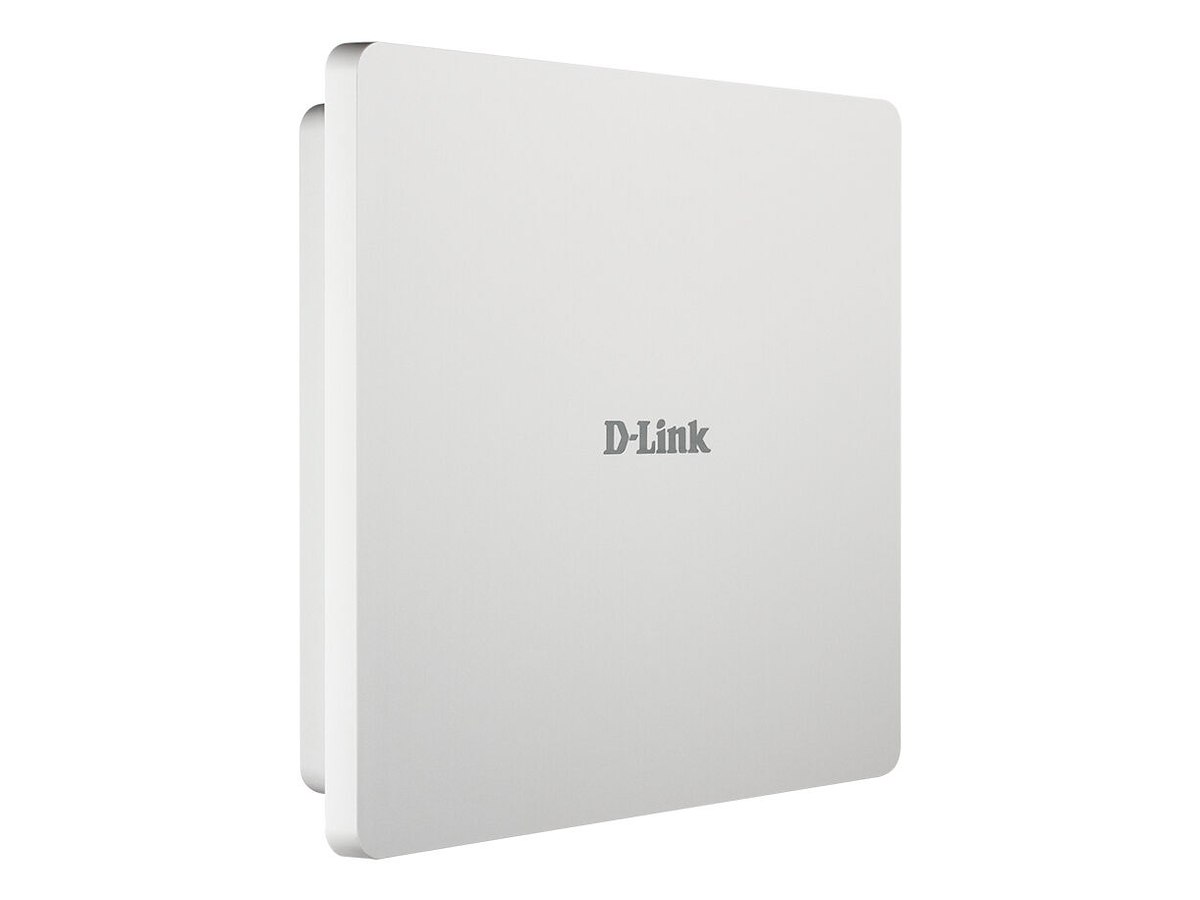

The WiFi4EU ready DAP-3666 Wireless AC1200 Wave 2 Dual-Band Outdoor PoE Access Point is a versatile, high power outdoor access point designed with harsh weather resistant features making it an ideal solution for creating outdoor wireless hotspot networks. Utilising the cutting-edge speed of 802.11ac Wave 2, it delivers maximum combined wireless signal rates of up to 1200Mbps and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. It is Passpoint® certified by Wi-Fi Alliance and complies with Hotspot 2.0, making the process of devices finding and getting access to the known network seamless.
For centralised network management, administrators can use D-Link’s free Nuclias Connect software or Nuclias Connect Hub (DNH-100) to configure and manage multiple access points. In addition to streamlining the management process, Nuclias Connect provides network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.
| Funktioner | |
| 2.4 GHz | Ja |
| 5 GHz | Ja |
| 6 GHz | Ingen |
| Maksimal dataoverførselshastighed | 1200 Mbit/s |
| Maksimal dataoverførselshastighed (2,4 GHz) | 300 Mbit/s |
| Maksimal dataoverførselshastighed (5 GHz) | 867 Mbit/s |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Frekvensbånd | 2.4, 5 GHz |
| Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Kabelteknologi | 10/100/1000Base-T(X) |
| Transmissionseffekt | 26 dBmW |
| Gennemsnitstid mellem fejl (MTBF) | 30000 t |
| Sikkerhed | |
| Sikkerhedsalgoritmer | 64-bit WEP, SSID, 128-bit WEP |
| Antal SSID understøttet | 16 |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 2 |
| Antal USB 2.0-porte | 0 |
| WAN-forbindelse | Ethernet (RJ-45) |
| DC-in-stik | Ja |
| Strømstyring | |
| Strøm over Ethernet (PoE) | Ja |
| DC spændingsområde | 48 V |
| Strømforbrug (maks.) | 10,5 W |
| Design | |
| Placering | Pæl |
| Produktfarve | Hvid |
| Slot til kabellås | Ja |
| LED-indikatorer | Strøm |
| Antenne | |
| Antenne type | Intern |
| Antennefunktioner | Integreret antenne |
| Antenner, antal | 2 |
| Niveau for antennestyrke (maks.) | 6 dBi |
| Godkendelser | |
| Certificering | FCC, IC, CE, UL, Wi-Fi Certified, Wi-Fi Certified Passpoint |
| Vægt & størrelser | |
| Bredde | 277 mm |
| Dybde | 50 mm |
| Højde | 240 mm |
| Emballage indhold | |
| Antal pr. pakke | 1 stk |
| Driftsbetingelser | |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Driftstemperatur (T-T) | -30 - 60 °C |
| Opbevaringstemperatur (T-T) | -30 - 65 °C |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
