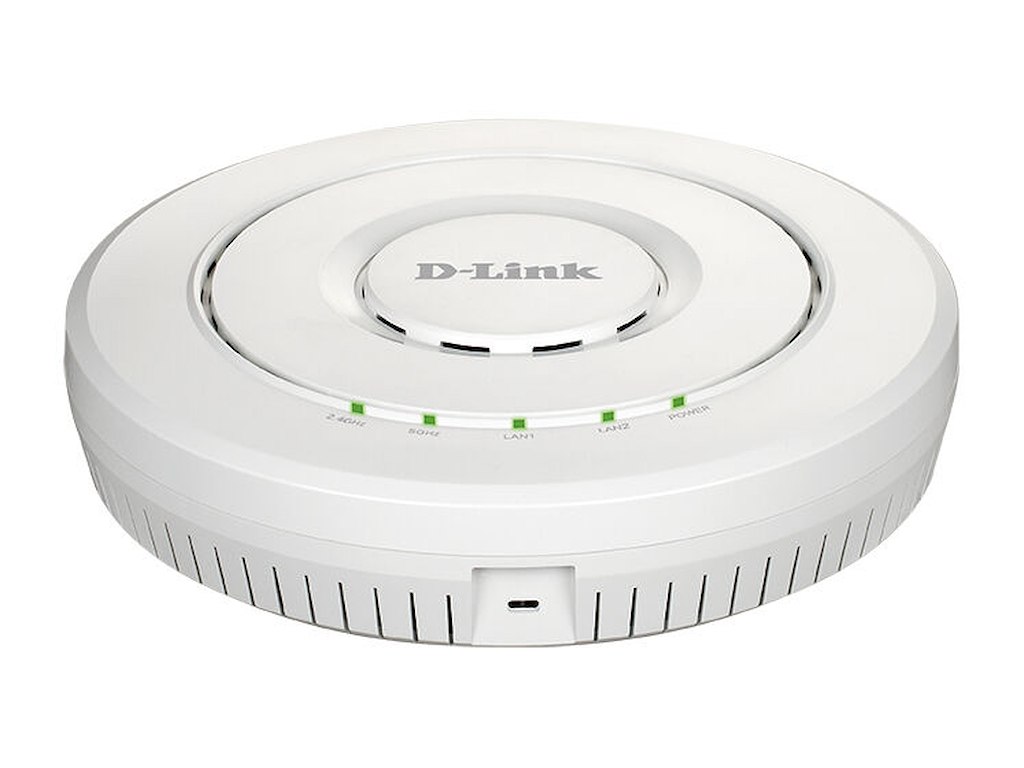

Enjoy Faster Business with Wave 2 The DWL-8620AP is designed for medium to large-scale Wi-Fi networks, delivering fast Wave 2 wireless speeds. It’s highly manageable, it fits into any existing network, and can be scaled to meet future wireless demands. Greater Speeds and Reliable Connectivity Utilise the full potential of 802.11ac Wave 2. Provide faster connectivity with combined data rates of up to 2.5 Gbps2. It also supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together to act as a single port to double the available bandwidth and maximise the access point’s overall throughput. Increase Network Efficiency The DWL-8620AP’s 4 x 4 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance. MU-MIMO (Multi-User Multiple Input Multiple Output) simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity. Rapid Deployments It can be ceiling mounted or wall mounted to provide the best wireless coverage. The built-in Power over Ethernet (PoE) port makes deployments faster and means it can be installed in areas without power outlets. Robust Management When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple DWL-8620AP units in the Wi-Fi network can be easily and efficiently centrally managed. Automatic Radio Frequency (RF) Management Radio Frequency (RF) resource management allows wireless coverage to be managed automatically, providing the best possible coverage for wireless clients. When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When the DWL-8620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel. This greatly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-8620AP will automatically adjust its transmission power. If an AP goes down, others will increase their transmission power to expand coverage. Band Steering It places clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads speeds. Airtime Fairness Ensures equal airtime given to each client. Increases performance even if slower devices are connected. 802.11k Fast Roaming Allows the wireless client to roam seamlessly between access points. 802.1p Quality of Service (QoS) Supports 802.1p QoS for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP. Wi-Fi Multimedia (WMM) In the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ja |
Maksimal dataoverførselshastighed | 2533 Mbit/s |
Maksimal dataoverførselshastighed (2,4 GHz) | 800 Mbit/s |
Maksimal dataoverførselshastighed (5 GHz) | 1733 Mbit/s |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
Automatisk kanalvalg | Ja |
MIMO | Ja |
Wi-Fi-multimedie (WMM)/(WME) | Ja |
Hurtig roaming | Ja |
Båndstyring | Ja |
Airtime Fairness (ATF) | Ja |
Servicekvalitet support (QoS) | Ja |
Sikkerhed | |
Sikkerhedsalgoritmer | AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
Filtrering af MAC-adresser | Ja |
Antal SSID understøttet | 32 |
Automatisk trådløs forsendelsessystem (WDS) | Ja |
Protokoller | |
Administrationsprotokoller | SNMP v1/v2c/v3 |
Administrationsfunktioner | |
Kommandolinjegrænseflade (CLI) | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
DC-in-stik | Ja |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Vekselstrømsindgangsspænding | 12 V |
Indgangsstrøm | 2.5 A |
Strømforbrug (maks.) | 24,24 W |
Design | |
Produktfarve | Hvid |
Husmateriale | Plast |
Certificering | CE, |
Antenne | |
Antenne type | Intern |
Antenneretningstype | Omniretningsbestemt |
Antenner, antal | 2 |
Niveau for antennestyrke (maks.) | 4 dBi |
Tekniske detaljer | |
Forsendelseskassens længde (indvendig) | 44,9 cm |
Forsendelseskasses kassens bredde (indvendig) | 31,2 cm |
Forsendelseskassens højde (indvendig) | 32,8 cm |
Forsendelsesemballage nettovægt | 7,33 kg |
Produkter pr. forsendelseskasse (indvendig) | 5 stk |
Palle bruttovægt (luft) | 222,3 kg |
Antal papkasser pr. palle (luft) | 24 stk |
Antal pr. palle (luft) | 120 stk |
Pallens bruttolængde | 110 cm |
Pallens bruttobredde | 120 cm |
Pallehøjde (luft) | 144,7 cm |
Palle bruttovægt (hav) | 272 kg |
Antal papkasser pr. palle (hav) | 30 stk |
Antal pr. palle (hav) | 150 stk |
Pallehøjde (hav) | 177,5 cm |
Forsendelseskassens bruttovægt (indvendig) | 8,2 kg |
Vægt & størrelser | |
Bredde | 220 mm |
Dybde | 220 mm |
Højde | 47 mm |
Vægt | 790 g |
Emballeringsdata | |
Pakkebredde | 295 mm |
Pakkedybde | 296 mm |
Pakkehøjde | 94 mm |
Pakkevægt | 1,47 kg |
Emballage indhold | |
Antal produkter inkluderet | 1 stk |
Hurtig start guide | Ja |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 0 - 40% |
Driftstemperatur (T-T) | -20 - 65 °C |
Opbevaringstemperatur (T-T) | 10 - 90 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
