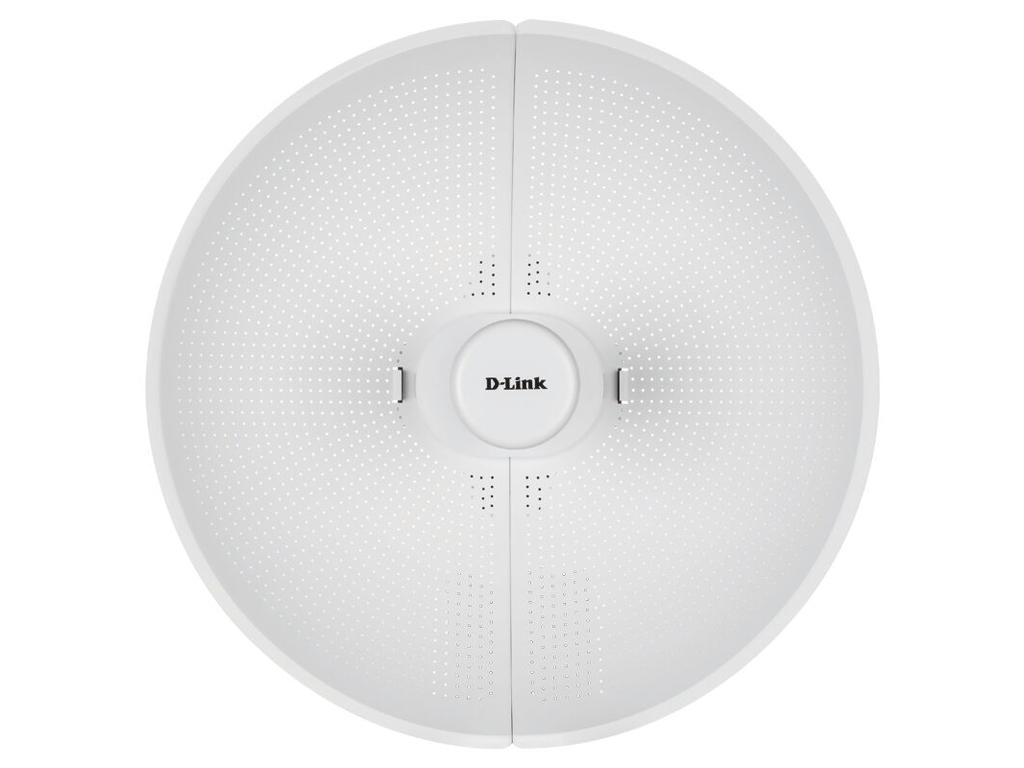

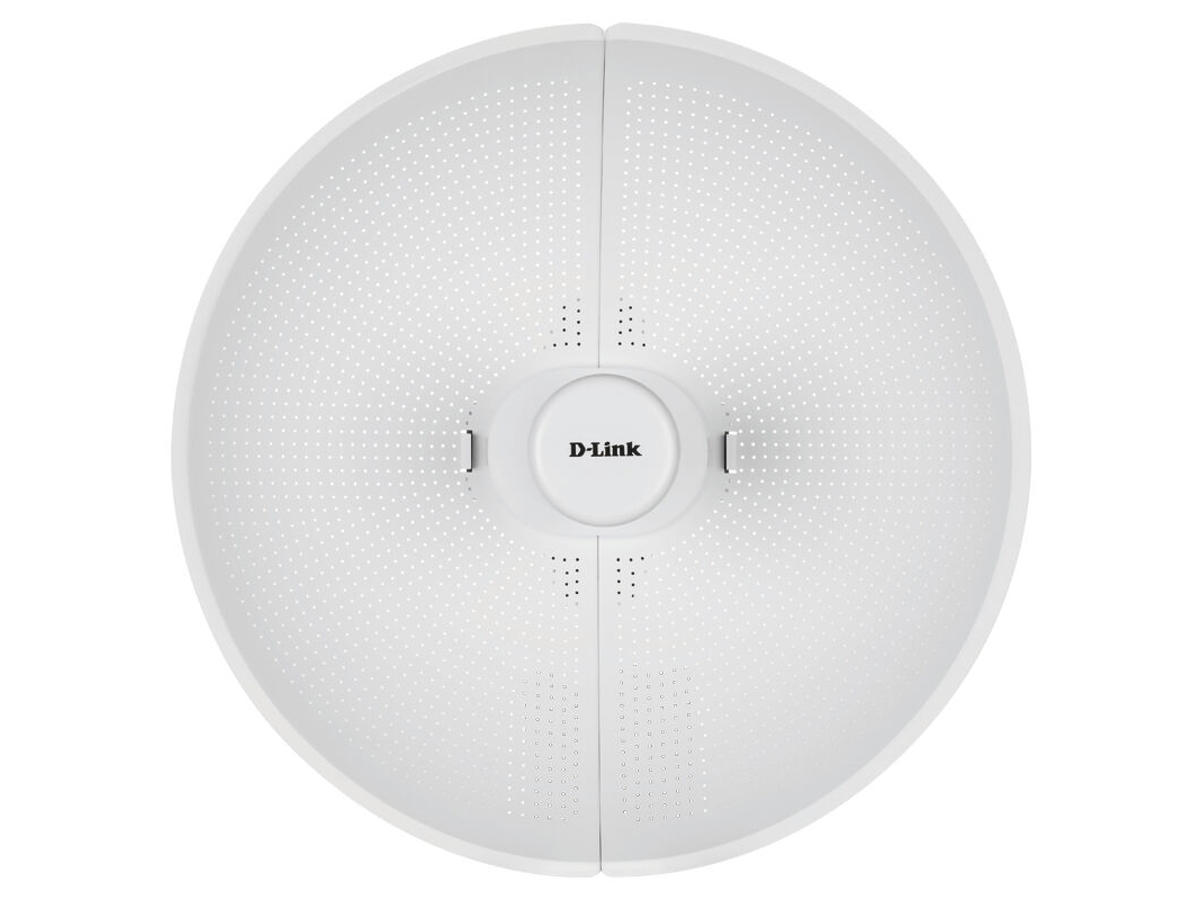

D-Link DAP-3712 bridge og repeater Netværksbro 867 Mbit/s Hvid
Varenummer: DAP-3712
Kontakt kundeservice for yderligere information om køb af dette produkt.
D-Link DAP-3712. Maksimal dataoverførselshastighed: 867 Mbit/s, Maksimal overførselsafstand: 20000 m. Antennedesign: Ekstern, Niveau for antennestyrke (maks.): 23 dBi. Wi-Fi-bånd: Enkelt frekvensbånd (5 GHz), WLAN dataoverførselshastighed (maks): 867 Mbit/s, Frekvensbånd: 5.180 - 5.825 GHz. Ethernet LAN-grænsefladetype: Gigabit Ethernet, Ethernet LAN-datahastigheder: 100,1000 Mbit/s, Netværksstandarder: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Forbindelsesteknologi: Kabel & trådløs


Mere information
  • The power to deliver connectivity over an even longer distance.

    The DAP-3712 is the essential infrastructure wireless solution in providing high-speed connectivity to what was previously believed to be impossible-to-reach rural areas and challenging terrain.

    High-Gain Directional Antenna
    Fast, stable, and long-range wireless coverage for up to 20 km

    TDMA Technology
    High speeds and consistent coverage that filters out interference

    IP66 Rated
    Water-resistant and dust-tight housing boasts a longer product life

    Point-to-Point and Point-to-Multipoint
    Distribute connectivity to single or multiple locations wirelessly over long distances

    8 kV Surge Protection
    Your device and network are protected against unexpected surges, such as lightning

    High-Speed Wi-Fi
    Blazing speeds of up to 867 Mbps

    Wi-Fi Security
    128-bit personal and enterprise wireless encryption

    PoE Ready
    Power over Ethernet makes for an easier installation with a single cable

    Designed for Wireless ISPs

    Rapid and cost-effective Internet distribution to get customers connected

    The power to withstand tough weather

    The DAP-3712 is enclosed in an unobtrusive IP66-rated housing, protecting it from rain and dirt. With built-in 8 kV surge protection, the DAP-3712 has protection against unexpected surges (such as lightning strikes), enabling it to be deployed where it’s needed, even in harsh environments and tough conditions.

    Bring connectivity to areas with limited or no access to fixed internet.

    The DAP-3712 features state-of-the-art hardware, including powerful high-gain 23 dBi directional antennas that effortlessly extend the coverage of 5GHz wireless AC speeds of up to 867Mbps to distances of up to 20 km away.

    Consistent coverage that filters out interference

    The DAP-3712 supports TDMA technology, creating a schedule for the bridge's access point and the client. The sender and receiver are allocated a time slot for transmissions, eliminating hidden node data collisions, maximising airtime efficiency, significantly cutting down interference, and dramatically improving the transfer rate.

    Simple installation with Power over Ethernet (PoE)

    The DAP-3712 comes with a PoE injector included. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.

    Free Next-Business-Day Service

    Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.

    Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.

  • Dataoverførsel
    Maksimal dataoverførselshastighed 867 Mbit/s
    Maksimal overførselsafstand 20000 m
    Antenne
    Antennedesign Ekstern
    Niveau for antennestyrke (maks.) 23 dBi
    Antenner, antal 1
    Trådløse LAN funktioner
    Wi-Fi Ja
    Wi-Fi-bånd Enkelt frekvensbånd (5 GHz)
    WLAN dataoverførselshastighed (maks) 867 Mbit/s
    Frekvensbånd 5.180 - 5.825 GHz
    Signalstyrke 27 dBm
    Antal kanaler 2 kanaler
    Netværk
    Ethernet LAN Ja
    Ethernet LAN-grænsefladetype Gigabit Ethernet
    Ethernet LAN-datahastigheder 100,1000 Mbit/s
    Netværksstandarder IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
    Kabelteknologi 10/100/1000Base-T(X)
    Statisk IP Ja
    Porte & Grænseflader
    Forbindelsesteknologi Kabel & trådløs
    Ethernet LAN-porte (RJ-45) 1
    Sikkerhed
    Sikkerhedsalgoritmer 128-bit AES
    Filtrering af MAC-adresser Ja
    Administrationsfunktioner
    Webbaseret administration Ja
    DHCP-klient Ja
    Funktioner
    Produkttype Netværksbro
    Materiale Acrylonitrilbutadienstyren
    Monteringstype Pæl
    Produktfarve Hvid
    LED-indikatorer Signalstyrke
    Automatisk styring af overførselskraft (ATPC) Ja
    Knap til nulstilling Ja
    Kode for international beskyttelse (IP) IP66
    Beskyttelse ved overspænding Ja
    Strømstyring
    Strømkilde type PoE
    Strømforbrug (typisk) 15 W
    Strøm over Ethernet (PoE) Ja
    Power over Ethernet (PoE) spænding 48 V
    Driftsbetingelser
    Driftstemperatur (T-T) -40 - 65 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 90%
    Opbevaringstemperatur (T-T) -40 - 85 °C
    Relativ luftfugtighed ved opbevaring (H-H) 0 - 90%
    Godkendelser
    Certificering CE, FCC
    Vægt & størrelser
    Bredde 372 mm
    Dybde 241 mm
    Højde 372 mm
    Vægt 900 g
    Emballeringsdata
    Antal pr. pakke 1 stk
    Logistik data
    Harmoniseret systemkode (HS) 85176990
