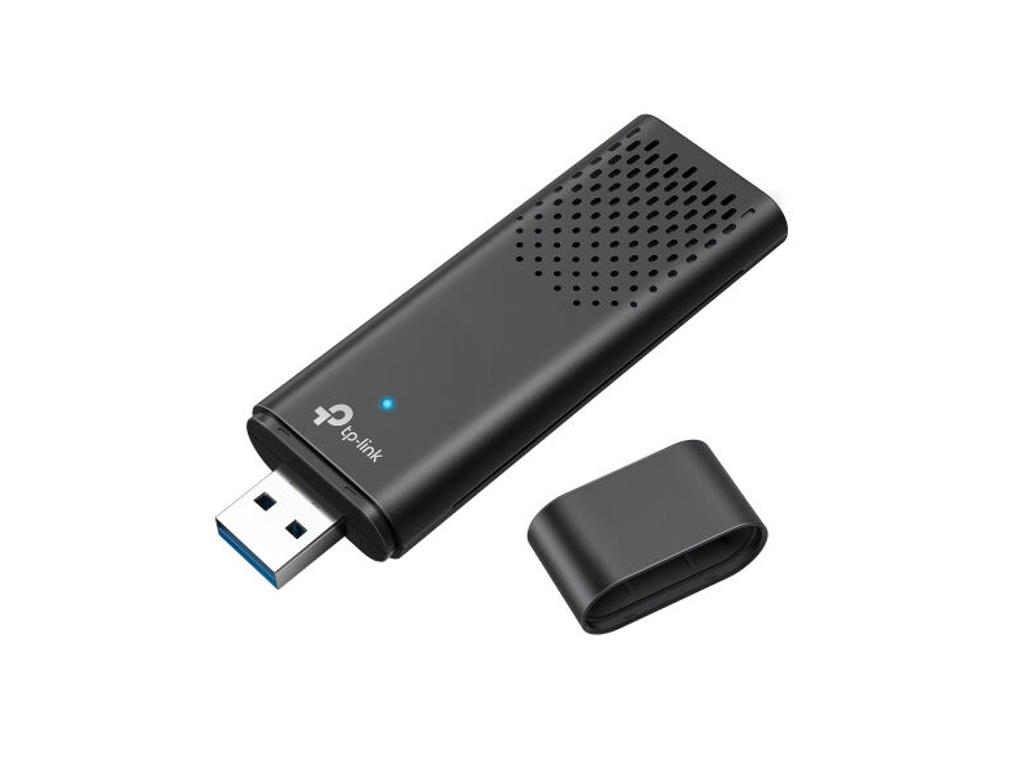

Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.
Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20U ideal for HD streaming, online gaming and large file downloads.
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | USB |
| Grænseflade | WLAN |
| USB-stik formfaktor | Lige |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Netværk | |
| Maksimal dataoverførselshastighed | 1201 Mbit/s |
| Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Ja |
| Wi-Fi-bånd | Dual-band (2,4 GHz / 5 GHz) |
| Bedste Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Understøttede WLAN-dataoverførselshastigheder | 11,54,300,400,574,867 Mbit/s |
| Sikkerhedsalgoritmer | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Design | |
| Intern | Ingen |
| Komponent til | PC |
| Produktfarve | Sort |
| Sendeeffekt (CE) | 18.5 - 21.5 dBm |
| Sendeeffekt (FCC) | 19 dBm |
| LED-indikatorer | Status |
| Driftsmodus | Infrastruktur-tilstand |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Windows 10, Windows 11 |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
| Vægt & størrelser | |
| Bredde | 90,2 mm |
| Dybde | 29,2 mm |
| Højde | 12,9 mm |
| Emballage indhold | |
| Hurtig installationsvejledning | Ja |
| Tekniske detaljer | |
| Compliance-certifikater | CE, Federal Communications Commission (FCC), RoHS |
